S220/S221/S230/S231/Z2007-4
7 Rescue, Towing,
Lashing, Lifting by Crane
Figure 7-4
Figure 7-6
Figure 7-5

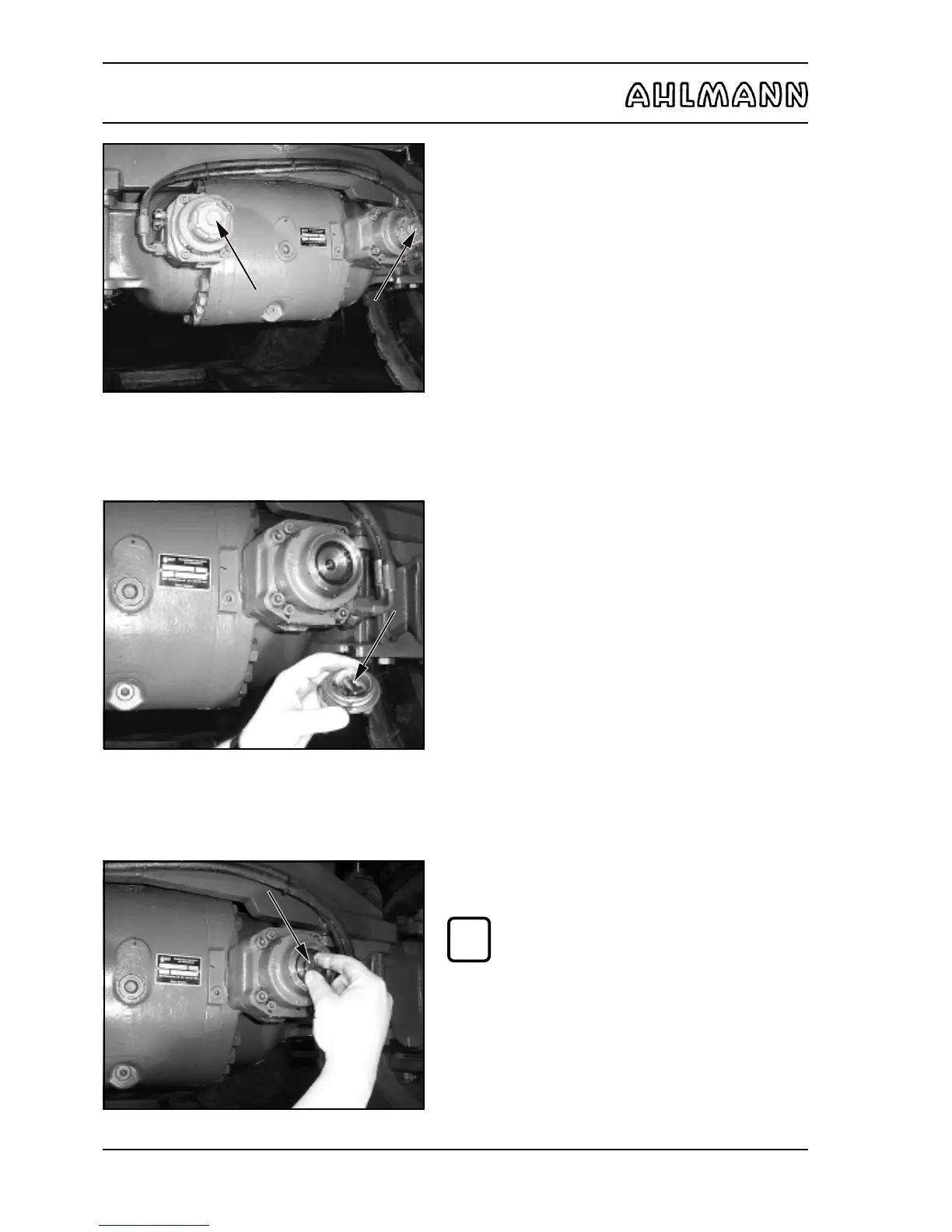

(15) Loosen the spring. To do this, loosen and remove the
two caps (7-4/arrows).
(16) Remove the quick-release hex screws (7-5/arrow)
within the caps and screw them into the spring cylinder
(7-6/arrow) until a definite stop can be felt. This tensions
the spring package.
(17) Screw both caps on again and tighten manually.
NOTE
After towing is completed, unscrew the caps
(7-4/arrows) again, remove the quick-release hex
screws (7-6/arrow), insert them in the caps (7-5/
arrow) and tighten the caps again by hand.
