4. Using Arinc 429 Functionality
ANET429-x Users Manual
27
b) The API function “Api429BoardOpen” has to be called to initialize the
Application Interface for the specified module, before any other API S/W
Library function is used for the specified module.
For further information see the AIM Arinc 429 API Reference Manual or Programmer’s
Guide.
4.4 Running Python Scripts On-Board
4.4.1 Overview
The baseline for having customer applications executed on the ANET ASP Linux
system is a structured and straightforward software architecture stack, comprising a
device driver and a C/C++ API (See Figure 4-3).

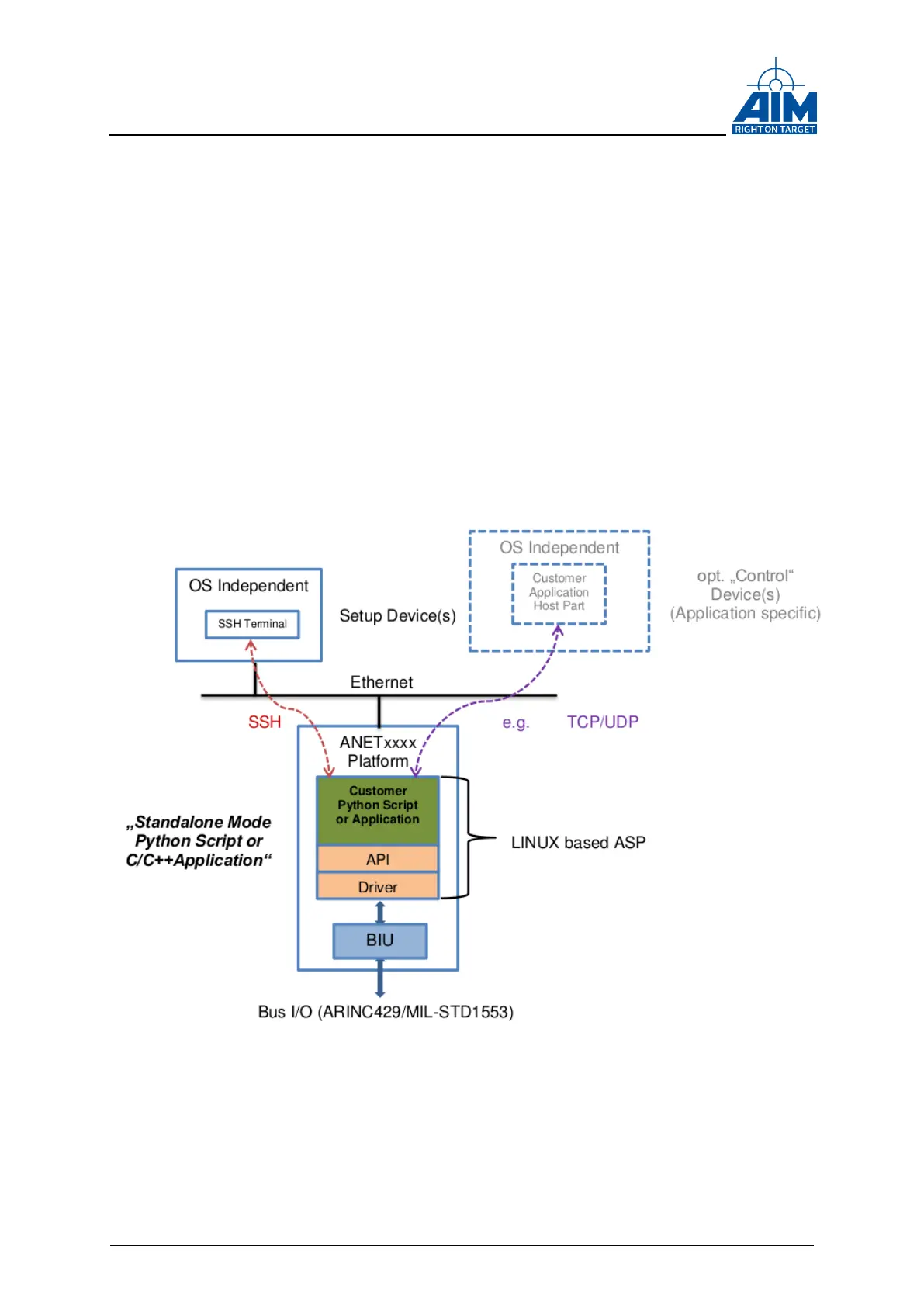

Figure 4-3 ANET429 Software Stack
The onboard API is fully compatible to the AIM standard API what means that:
existing applications or parts of it, already based on the AIM standard API, can be easily
migrated to the ANET.
no new API command set must be learned for writing dedicated ANET onboard
applications.
