5. Structure of the ANET429
ANET429-x Users Manual
35
5 STRUCTURE OF THE ANET429
The structure of the ANET429-16 (sixteen channels) module is shown in the block
diagram below. An ANET429-4 only provides 4 ARINC429 channels.
The ANET429 comprises the following main sections:
- System FPGA
- Global RAM
- BIU Section
- Physical I/O Interface
16 ARINC429 channels (Receiver or Transmitter; Low or High speed
configuration)
- IRIG-B-122 – Time Code Processor with Free Wheeling Function
- ASP Section with local ASP RAM

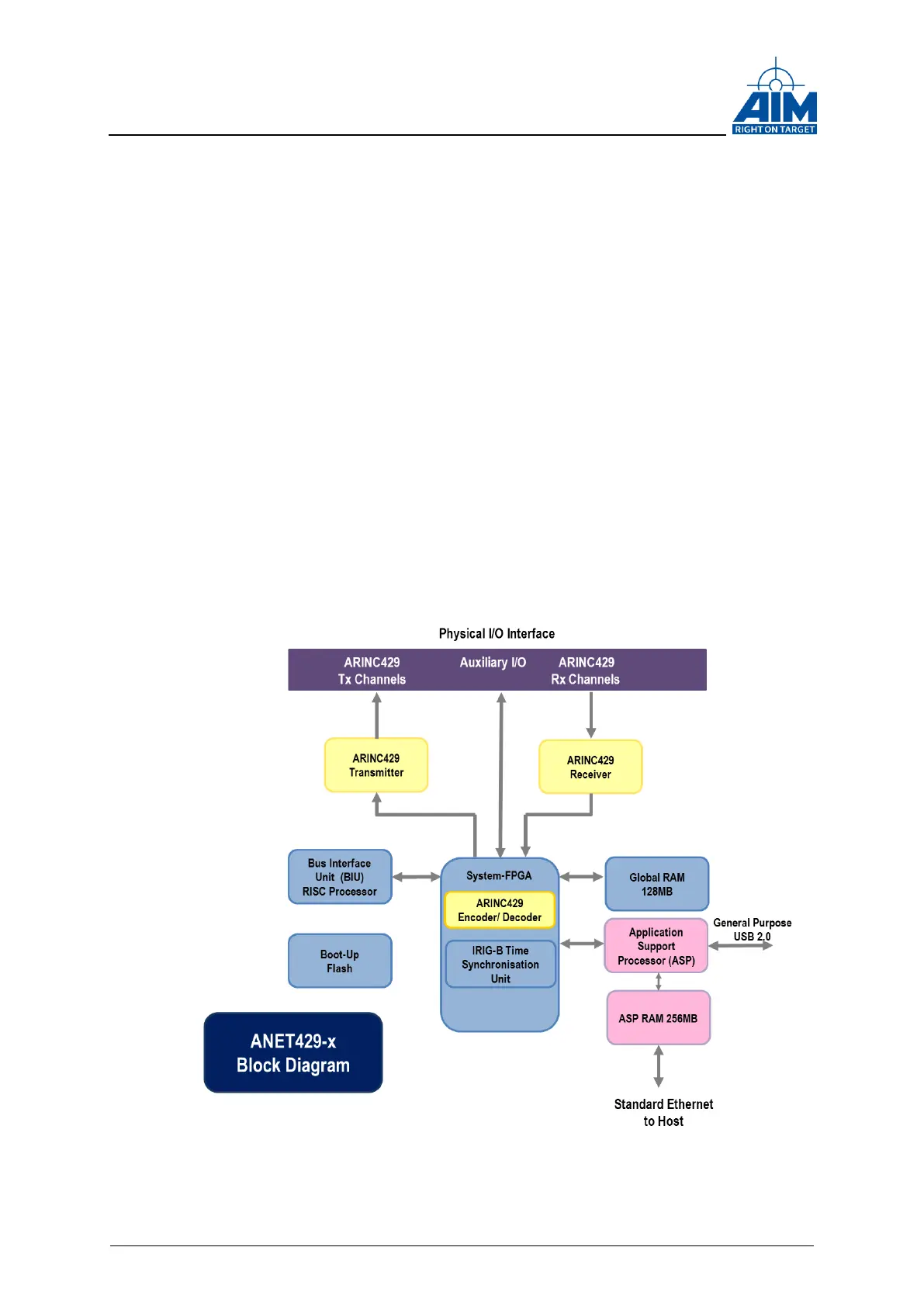

Figure 5-1 Block Diagram ANET429-16
