8 APPENDIX
8.1 ANET Table Adapter Panel
For the ANET429-D Module Variants (housing with docking station back panel), a back
panel adapter for table operation is available, which is shown below:

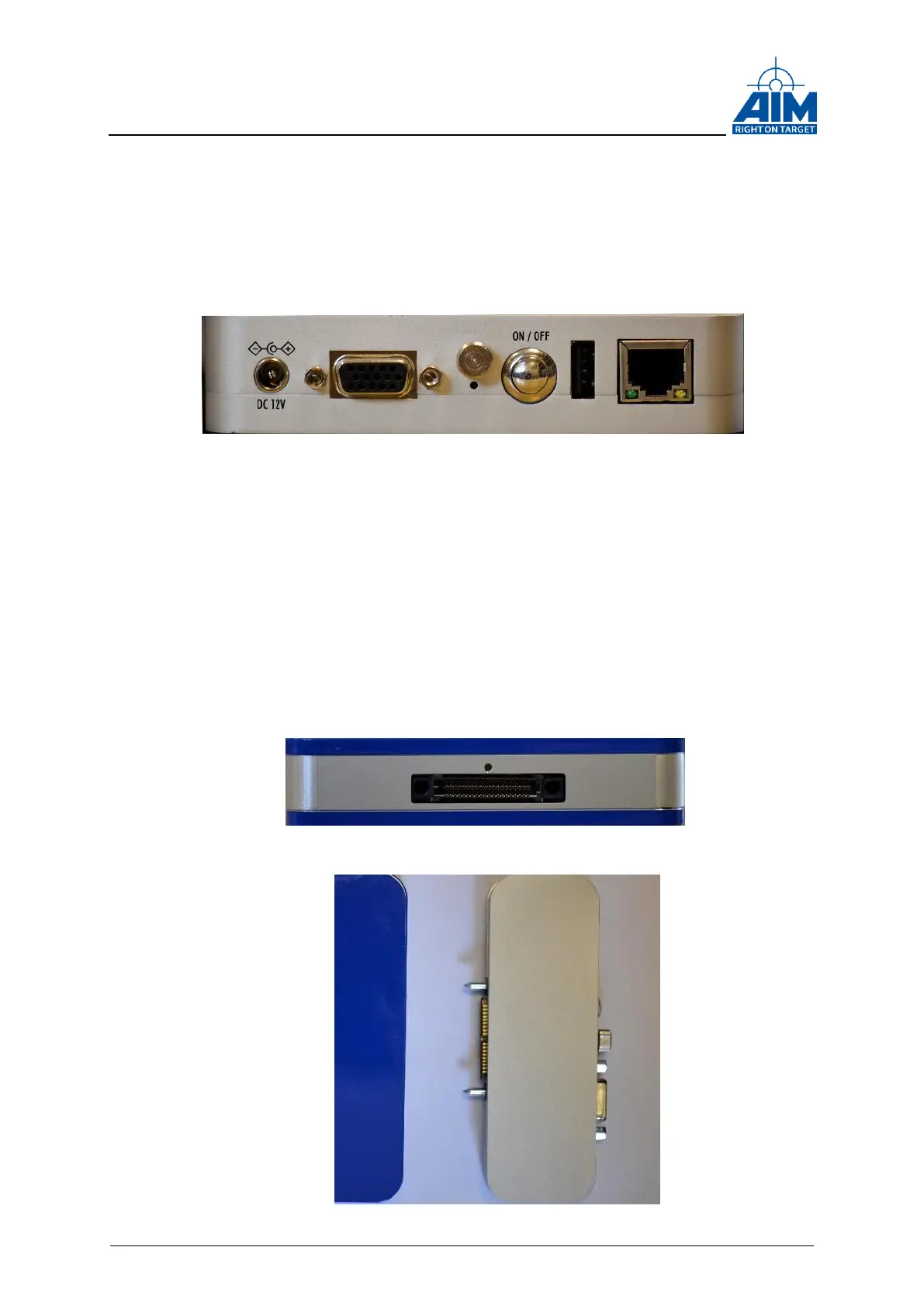

Figure 8-1 ANET Table Adapter Pinout
DC panel socket
Auxiliary connector
Mechanical lock screw and Emergency Boot button
ON/OFF button
USB HOST connector
Ethernet connector
8.1.1 How to connect the ANET Table Adapter
Figure 8-2 ANET Docking Connector
Figure 8-3 ANET Table Adapter
