Aim ANET42 - DC Power IN-, Reset- and Power up Control- Connector; Table 8-1 Pinout Power Connector

8. Appendix
ANET429-x Users Manual
50

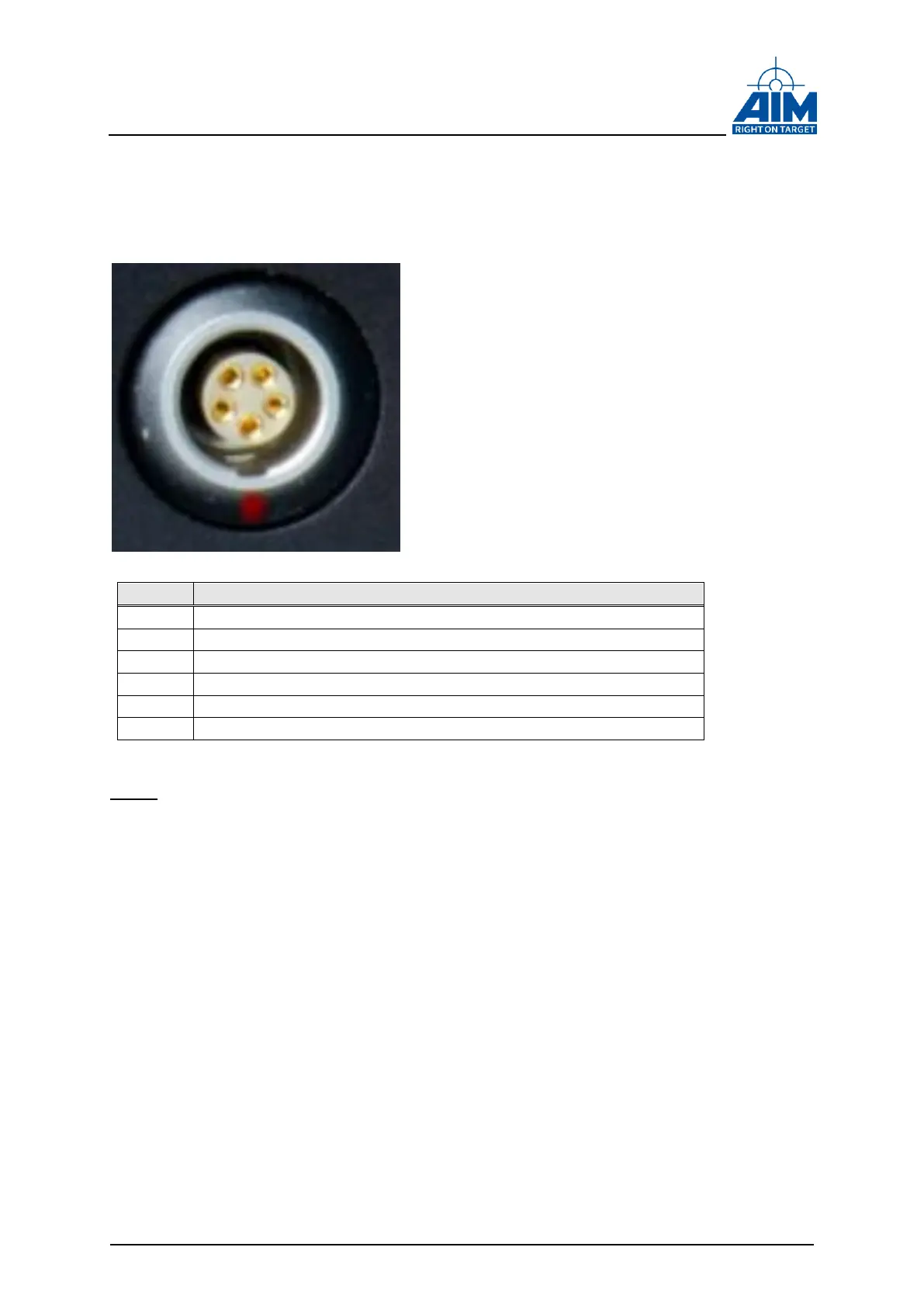

8.2.2 DC Power IN-, Reset- and Power Up Control- Connector
LEMO-Connector for connecting an external Power-Supply and controlling of
Emergency-Reset and manual Power-Up/Down.
Pin No.
Signal
1
GND
2
Emergency-Reset-1
3
Emergency-Reset-2
4
Power Button-1
5
VCC
6
Power Button-2 (SHIELD )
Table 8-1 Pinout Power Connector
Note: The pins 2, 3 are intended for the Emergency Reset / Emergency Mode push
button and pins 4, 6 are intended for a power push button.
