Example Reference and
Video Incompatibility
Alarms
Video incompatibilities that the FS2 may detect include the following:

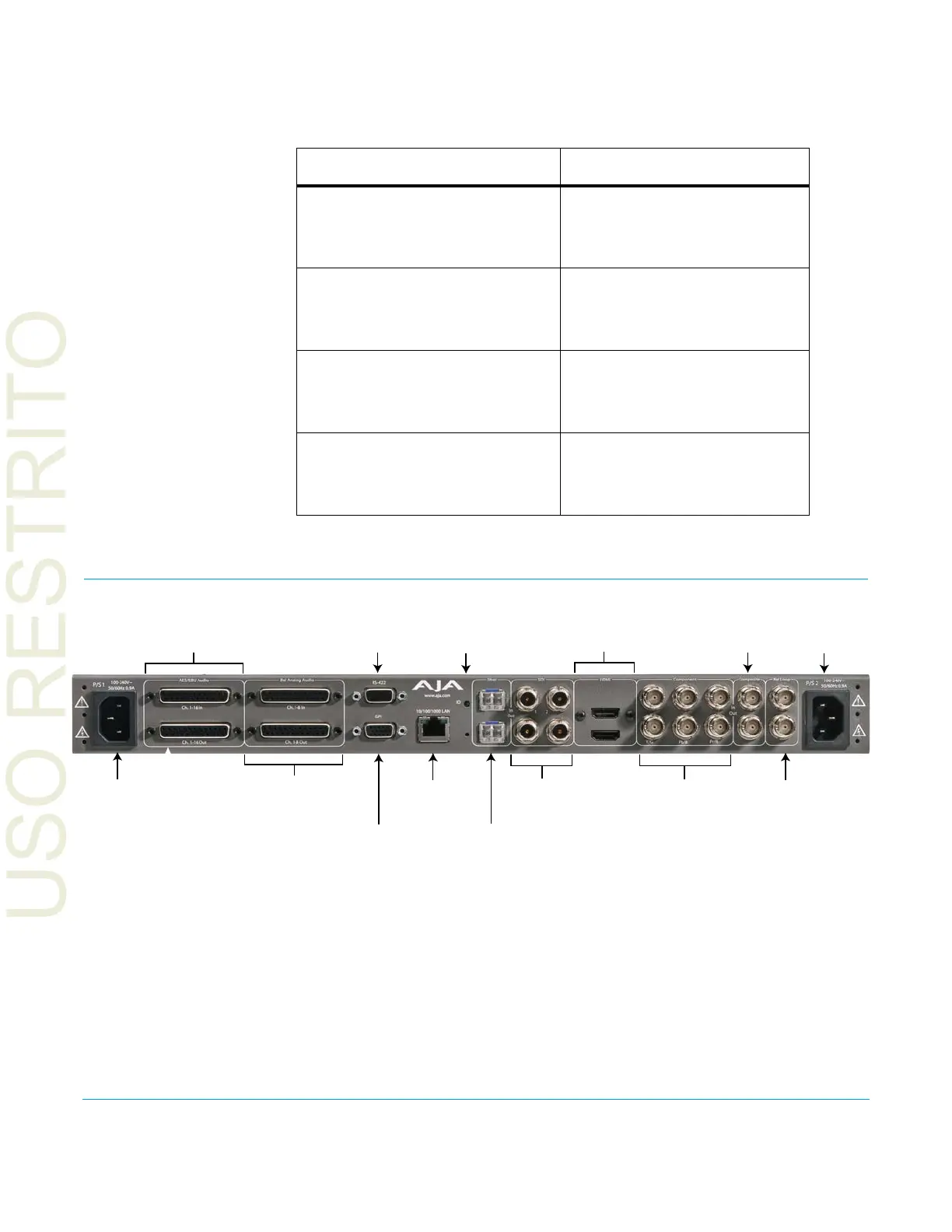

Rear Panel Description
Connectors The rear panel connectors are summarized below and described in detail in the next
section:
P/S 1 and P/S 2 Two 3-pin grounded connectors provide AC power to the two independent power
suppl
ies. The supplies are autosensing for 100–240 VAC, 50/60 Hz. Only one connection
is required for operation, but both connectors must be plugged into AC power for
redundant power protection.
AES/EBU Digital Audio 16-Channel, 24-bit AES Input and Output on separate DB-25 connectors (Tascam pinout,
see “Audio Connection Pinouts” on page 109).
Table 3. Video Incompatibility Examples
Video Incompatibility Detected Alarm Status screen will show
Genlock Source is set to “Reference”,
but no Re
ference signal is detected.
VID1 SDI 1 525i59.94
BKGD Matte
GEN Reference No Input
OUT 1080i59.94
Genlock Source signal format is not
c
ompatible with selected Input
Format.
VID1 SDI 1 Incompat
BKGD Matte
GEN Reference Incompat
OUT 1080i59.94
Genlock Source signal format is not
c
ompatible with selected Output
Format.
VID1 SDI 1 525i59.94
BKGD Matte
GEN Reference Incompat
OUT Incompat
Input signal is not compatible with
selec
ted Output Format.
VID1 SDI 1 Incompat
BKGD Matte
GEN Reference 1080i59.94
OUT Incompat
Serial Digital
In/Out BNC
(3G/SD/HD)
Composite
In/Out BNC
10/100/1000
RJ45 Ethernet
LAN Connector
GPI 15-pin
DB-15F Connector
ID
LED
RS422 Machine
Control 15-pin
DB-15F
(Future Upgrade)
External Reference
I/O with looping
BNC connectors.
Use 75-ohm terminator
on unused connector
or downstream equipment.
AC Power
Socket #2
Autosensing
100 to 240VAC
50/60Hz
AC Power
Socket #1
Autosensing
100 to 240VAC
50/60Hz
Component
YPbPr and
RGB or
Composite (v1.1)
In/Out
BNC
Analog Audio In/Out
Channels 1 through 8
DB-25F Connectors
(uses Tascam-style
cable)
AES/EBU Digital
Audio In/Out
Channels 1 through 16
DB-25F Connectors
Serial Digital
Fiber In/Out
(3G/SD/HD)
HDMI
In/Out
