7210 SAS-D Overview
7210 SAS-D Installation Guide Page 13
Switch Features
The 7210 SAS-D is a service-aware Layer 3 switch. It supports up to 10 connections including 6
100/1000 fiber-optic SFP ports and 4 10/100/1000 Base-T fixed copper ports. The chassis is
available with either an AC power module or DC power module, as shown in the following
illustrations:

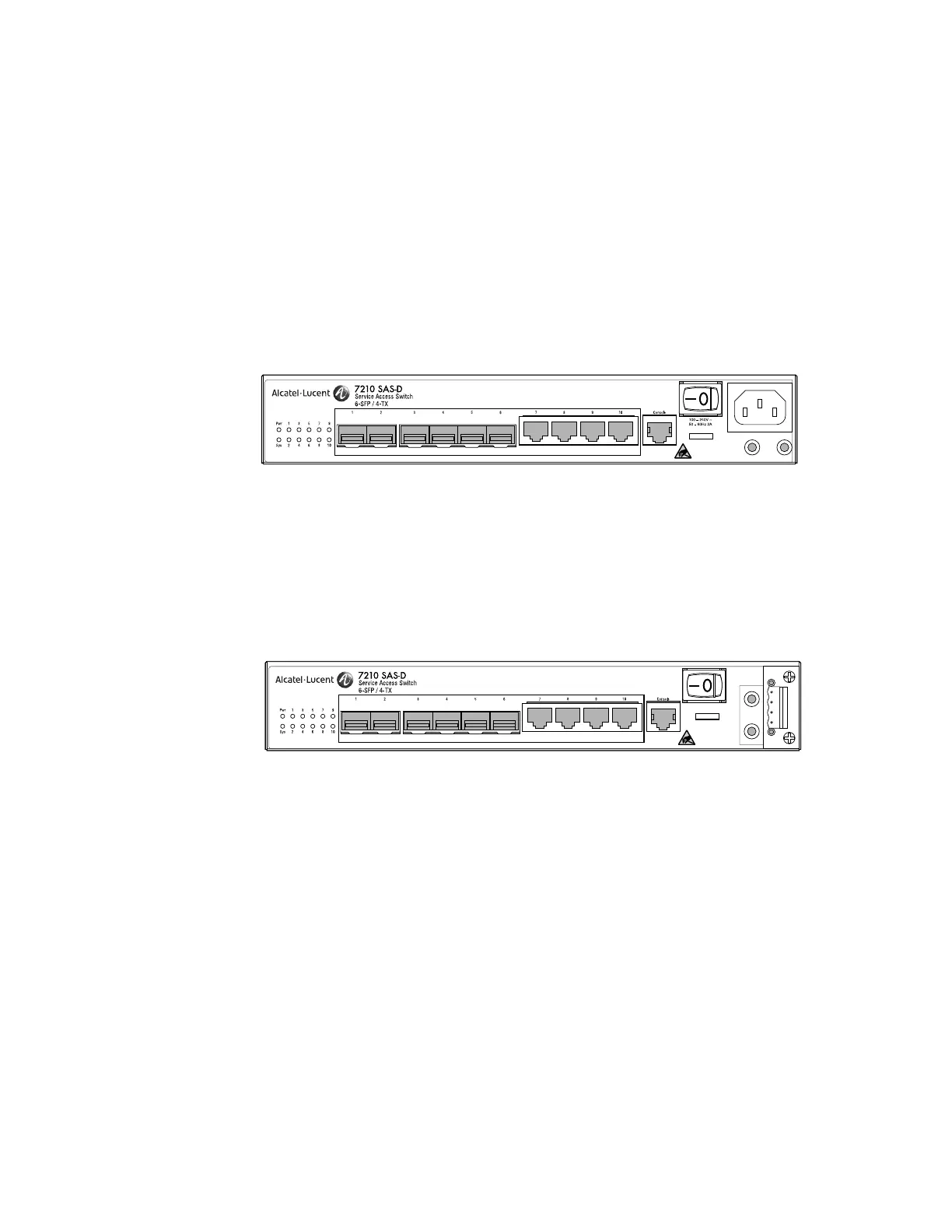

Figure 1: 7210 SAS-D AC Chassis Front Panel
Figure 2: 7210 SAS-D DC Chassis Front Panel
The ETR-variant chassis is also available with either an AC power module or DC power module,
as shown in the following illustrations:
7210SASac_0001
7210SASdc_0001
