Alcatel-Lucent 7210 SAS-D Installation Guide

Hardware Description
Page 26 7210 SAS-D Installation Guide
System and Port LEDs
The system and port LEDs are located on the lefthand side of the front panel. See Figure 12 on
page 26 and Table 7 for the location of the system and port LEDs and Table 8 for key descriptions.

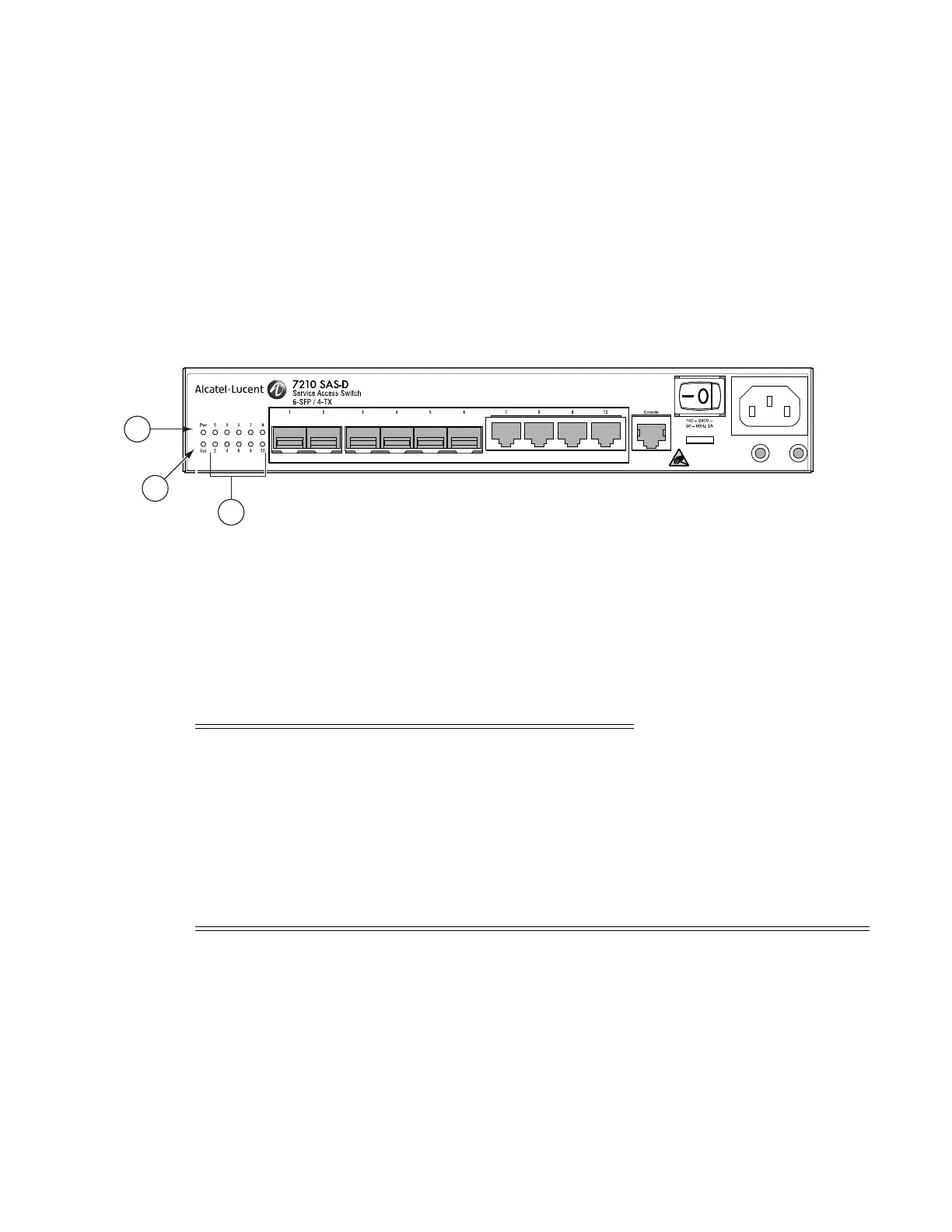

Figure 12: Location of the System and Port LEDs
7210SASac_0001
1
2
3
Table 7: Location of System and Port LEDs
Key Description
1Power LED
2 System LED
3 Port LEDs
Table 8: System LED
LED Condition Status
Status Green Indicates that the system has completed boot phase and is
running normally.
Amber Indicates that the device is in an alarm state.

Alcatel-Lucent 7210 SAS-D Specifications

General

Product Type	Switch
Model	7210 SAS-D
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Humidity	5% to 95% non-condensing
Form Factor	1U
Power Supply	AC or DC, redundant options available
Management	CLI, Web, SNMP
