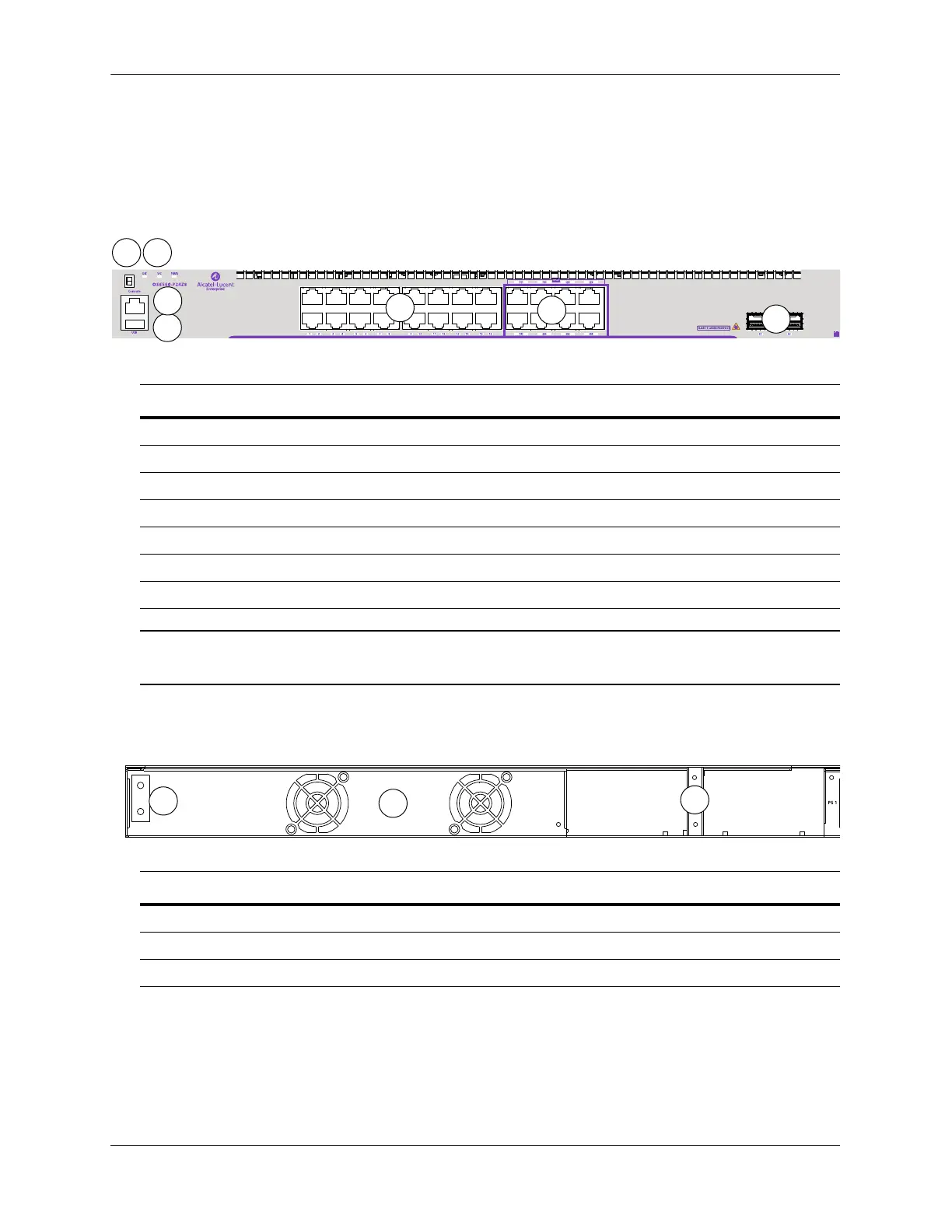

OmniSwitch 6560 Chassis Details Chassis and Power Supplies
page 3-2 OmniSwitch 6560 Hardware Users Guide December 2019
OmniSwitch 6560 Chassis Details
OS6560-P24Z8
OS6560-P24Z8 Front Panel
CLASS 1 M LASER CAUTION. CAUTION - CLASS 1 M LASER RADIATION WHEN OPEN.
DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS
OS6560-P24Z8 Rear Panel
Item Description
A
Virtual Chassis ID LED
B
Status LEDs
C
Console port
D
USB port
E
(16) 10/100/1000 Base-T PoE (802.3at) ports
F
(8) 100/1000/2.5G Base-T PoE (802.3bt) ports
G
(2) SFP+ (1G/10G) ports
Item Description
A
Chassis Grounding Lug
B
Fans
C
Power Supplies
G
D
F
E
A B
C
A
B
C
