OmniSwitch 6560 Chassis Details Chassis and Power Supplies
page 3-4 OmniSwitch 6560 Hardware Users Guide December 2019

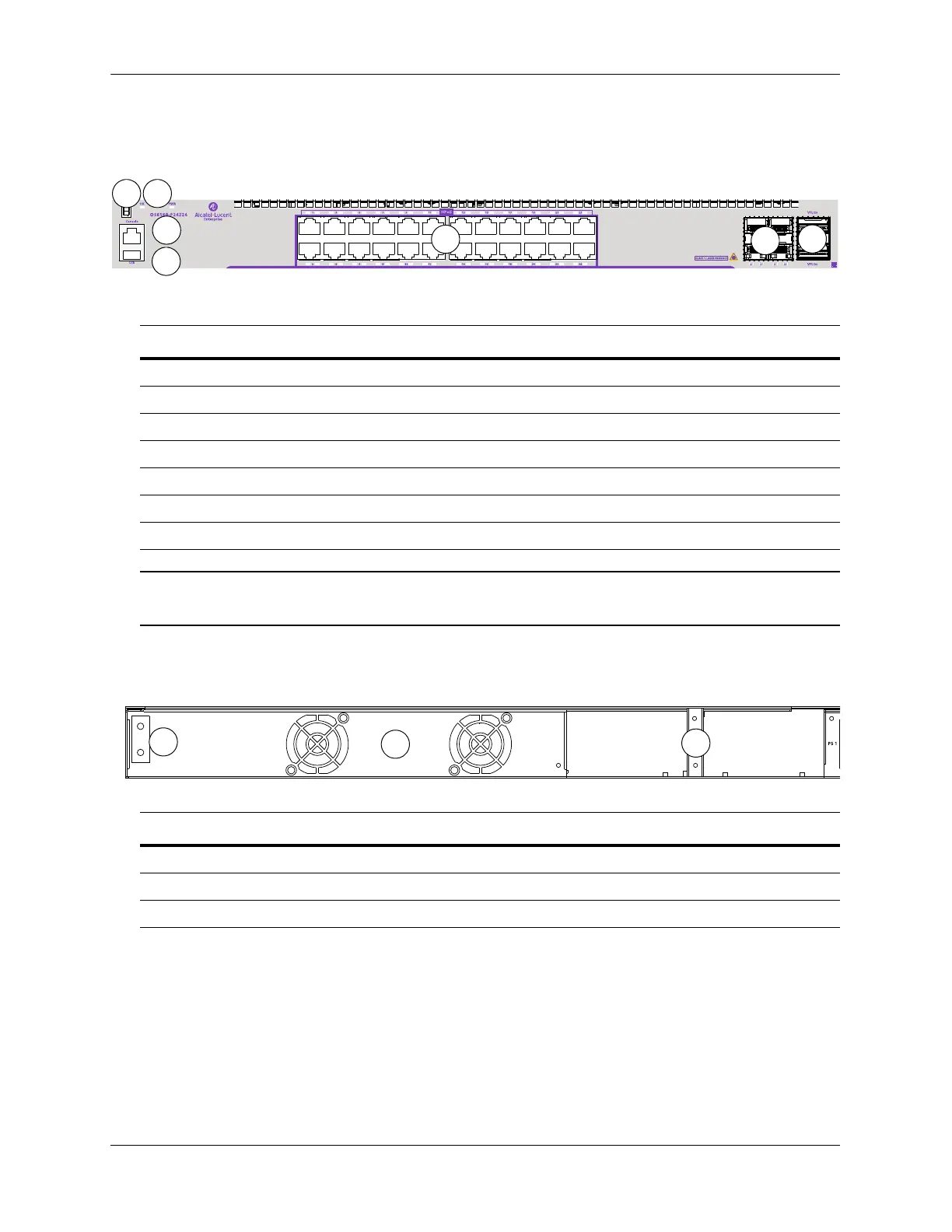

OS6560-P24Z24
OS6560-P24Z24 Front Panel
CLASS 1 M LASER CAUTION. CAUTION - CLASS 1 M LASER RADIATION WHEN OPEN.
DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS
OS6560-P24Z24 Rear Panel
Item Description
A
Virtual Chassis ID LED
B
Status LEDs
C
Console port
D
USB port
E
(24) 100/1000/2.5G Base-T PoE (802.3bt) ports
F
(4) SFP+ (1G/10G) ports
G
(2) 20G QSFP+ VFL ports
Item Description
A
Chassis Grounding Lug
B
Fans
C
Power Supplies
