OmniSwitch 6560 Chassis Details Chassis and Power Supplies
page 3-10 OmniSwitch 6560 Hardware Users Guide December 2019

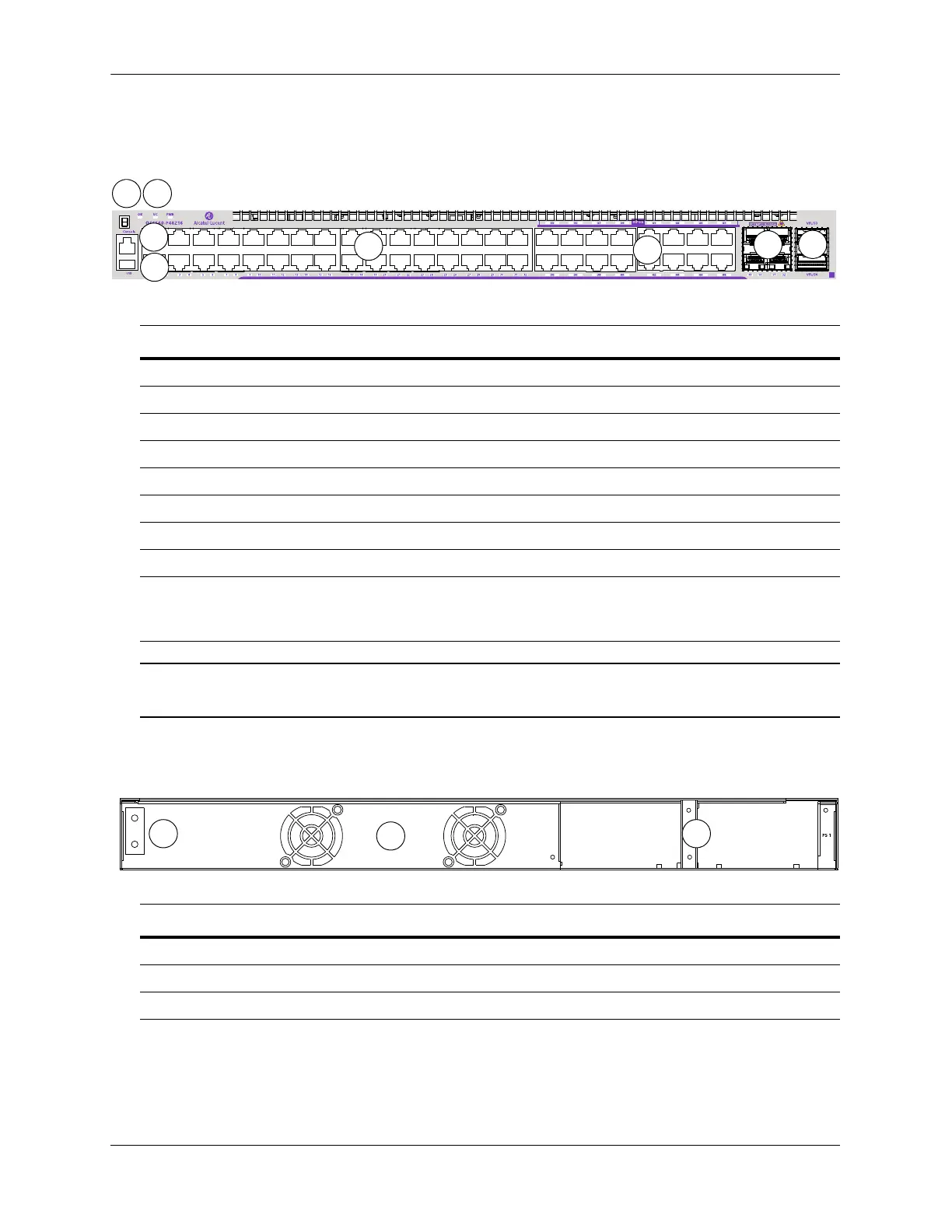

OS6560-P48Z16
OS6560-P48Z16 Front Panel
CLASS 1 M LASER CAUTION. CAUTION - CLASS 1 M LASER RADIATION WHEN OPEN.
DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS
OS6560-P48Z16 Rear Panel
Item Description
A
Virtual Chassis ID LED
B
Status LEDs
C
Console port
D
USB port
E
(32) 10/100/1000 Base-T PoE (802.3at) ports
F
(16) 100/1000/2.5G Base-T PoE (802.3bt) ports
G
(4) SFP+ (1G/10G) ports
H
(2) 20G QSFP+ VFL ports
Note:
There are two versions of this model which can be identified by the part number:
- 903954-90 (Previous revision)
- 904044-90 (New revision)
Item Description
A
Chassis Grounding Lug
B
Fan Vent
C
Power Supplies
G
H
D
F
E
A B
C
A C
B
