OmniSwitch 6560 Chassis Details Chassis and Power Supplies
page 3-16 OmniSwitch 6560 Hardware Users Guide December 2019
OS6560-24X4

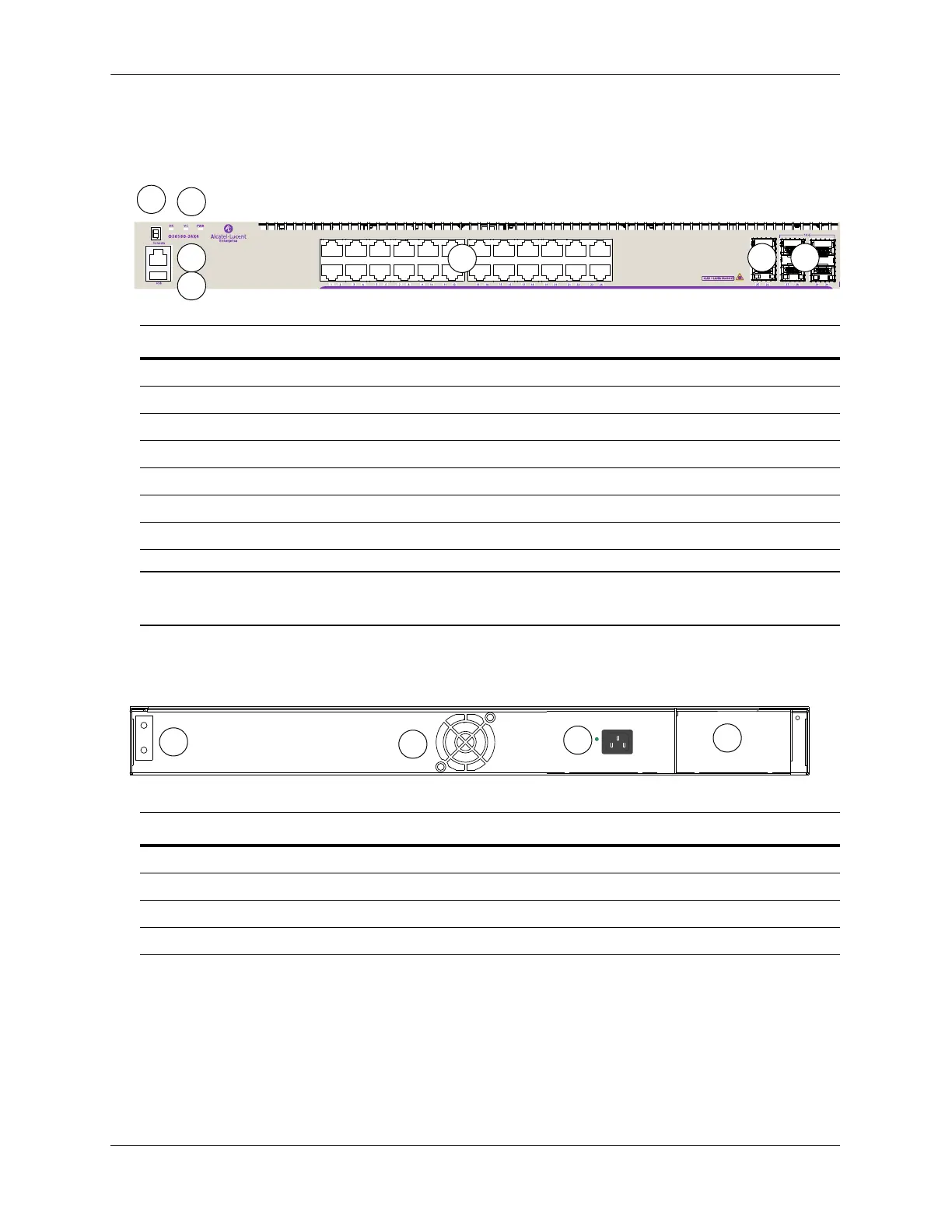

OS6560-24X4 Front Panel
CLASS 1 M LASER CAUTION. CAUTION - CLASS 1 M LASER RADIATION WHEN OPEN.
DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS
OS6560-24X4 Rear Panel
Item Description
A
Virtual Chassis ID LED
B
Status LEDs
C
Console port
D
USB port
E
(24) 10/100/1000 Base-T ports
F
(2) SFP(+) (1G/10G) ports (10G speed requires license)
G
(4) SFP+ 1G/10G ports
Item Description
A
Chassis Grounding Lug
B
Fans
C
Power Supply Connector (Internal AC Power Supply)
D
Backup Power Supply Slot (Modular)
G
D
F
E
A
B
C
BPS
A
B
C
D
