Chassis and Power Supplies Power Supplies
OmniSwitch 6560 Hardware Users Guide December 2019 page 3-33
OS6560-BP-PH 600W Power Supply

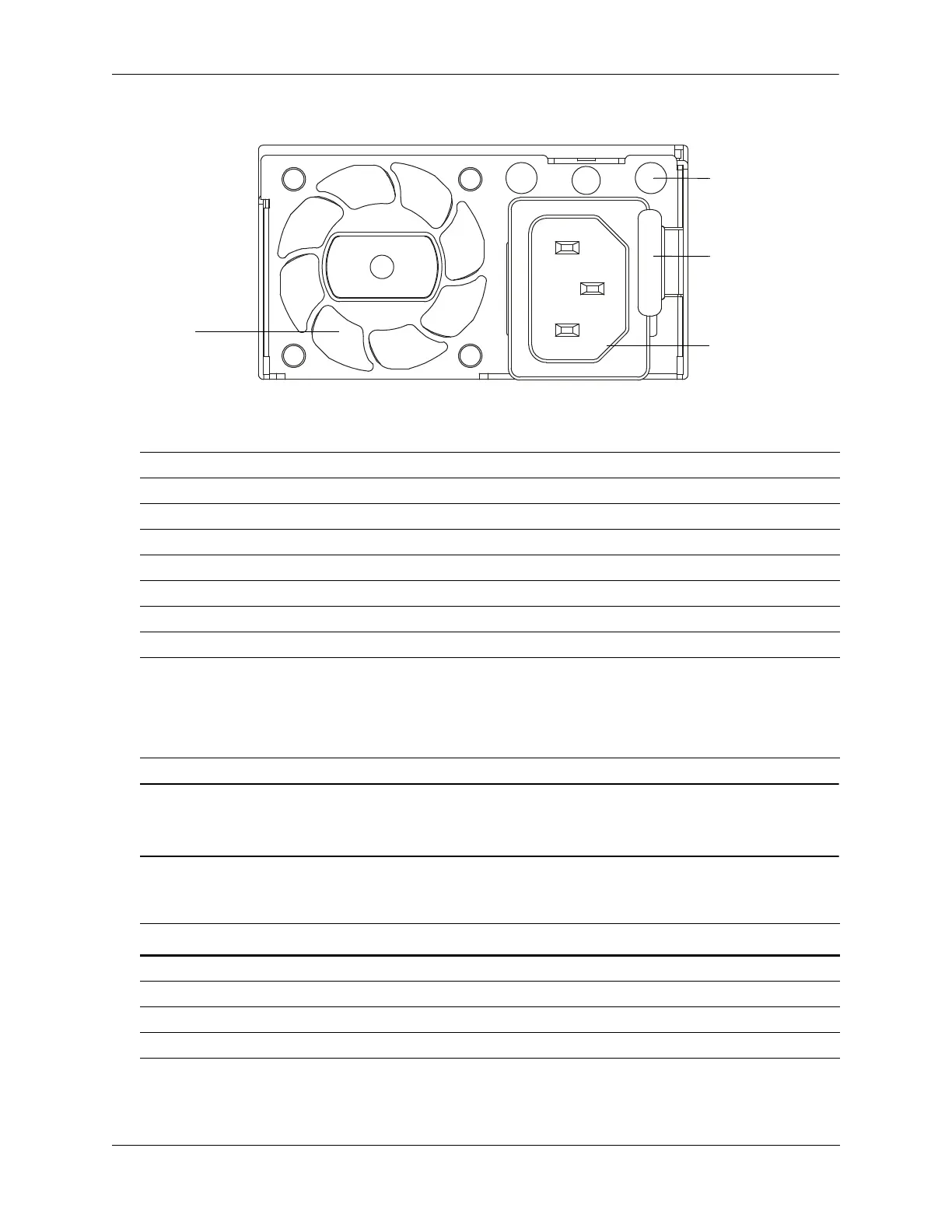

OS6560-BP-PH 600W AC Power Supply Front Panel
Load Sharing Support. When two power supplies are installed, each power supply provides electrical
load sharing for PoE. See “Power over Ethernet Budget”. Mixing different wattage power supplies in a
chassis is not supported.
OS6560-BP-PH LED States
Model OS6560-BP-PH (PS-600W-AC-P)
Models Supported See “Power Supplies”
Input Voltage/Current 100-240VAC /8.5A - 4.25A
Input Frequency 50Hz - 60Hz
DC Output +54.5/11 A
Max Output for System Power 110W
Weight 0.83 kg (1.82 lb)
Max Output for PoE Power See “Power over Ethernet Budget”
Note:
There are two versions of this model which can be identified by the part
number:
- 903852-90 (Previous revision)
- 904071-90 (New revision)
See “Power Supplies” for power supply and chassis support.
LED State Description
AC OK LED Solid Green AC power is good
AC OK LED Solid Red There is an AC power issue
DC OK LED Solid Green DC power is good
DC OK LED Solid Red There is a DC power issue
AC Connector
Air Vent
Lock Tab
Status LEDs
