Chassis and Power Supplies Power Supplies
OmniSwitch 6560 Hardware Users Guide December 2019 page 3-39
Installing Power Supplies
Note. The power supply shown in the following diagrams is a OS6560-BP-PH unit. However, compara-
ble installation and removal steps also apply to other power supply units.

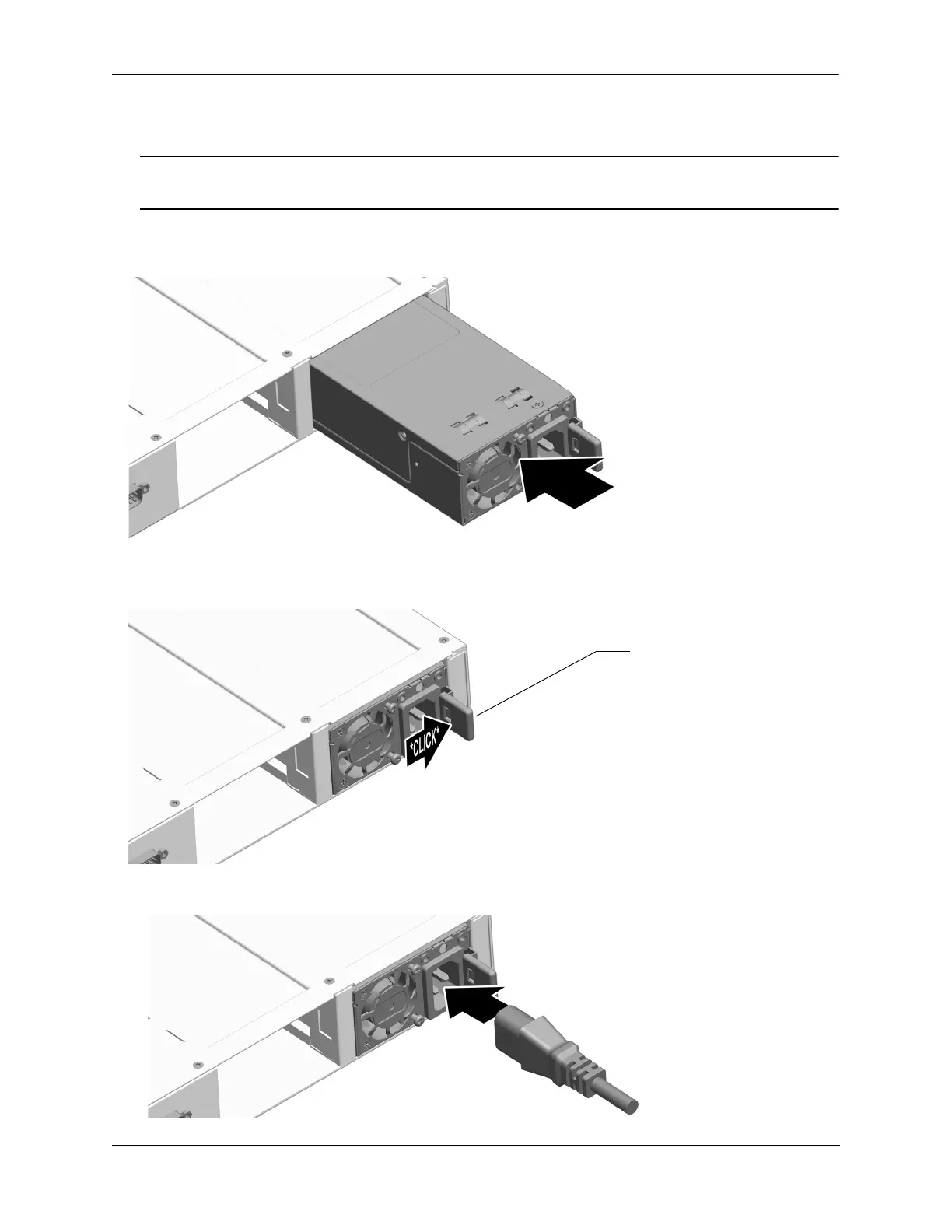

1 Insert the power supply into a power supply bay at the rear of the chassis and slide it back until it is
securely seated in the chassis backplane.
When the connector is fully seated, the lock tab will click and hold the power supply in place.
2 Plug the power cord (provided) into the power supply’s socket.
