Chassis and Power Supplies Power Supplies
OmniSwitch 6560 Hardware Users Guide December 2019 page 3-35
OS6560-BP 150W AC Power Supply

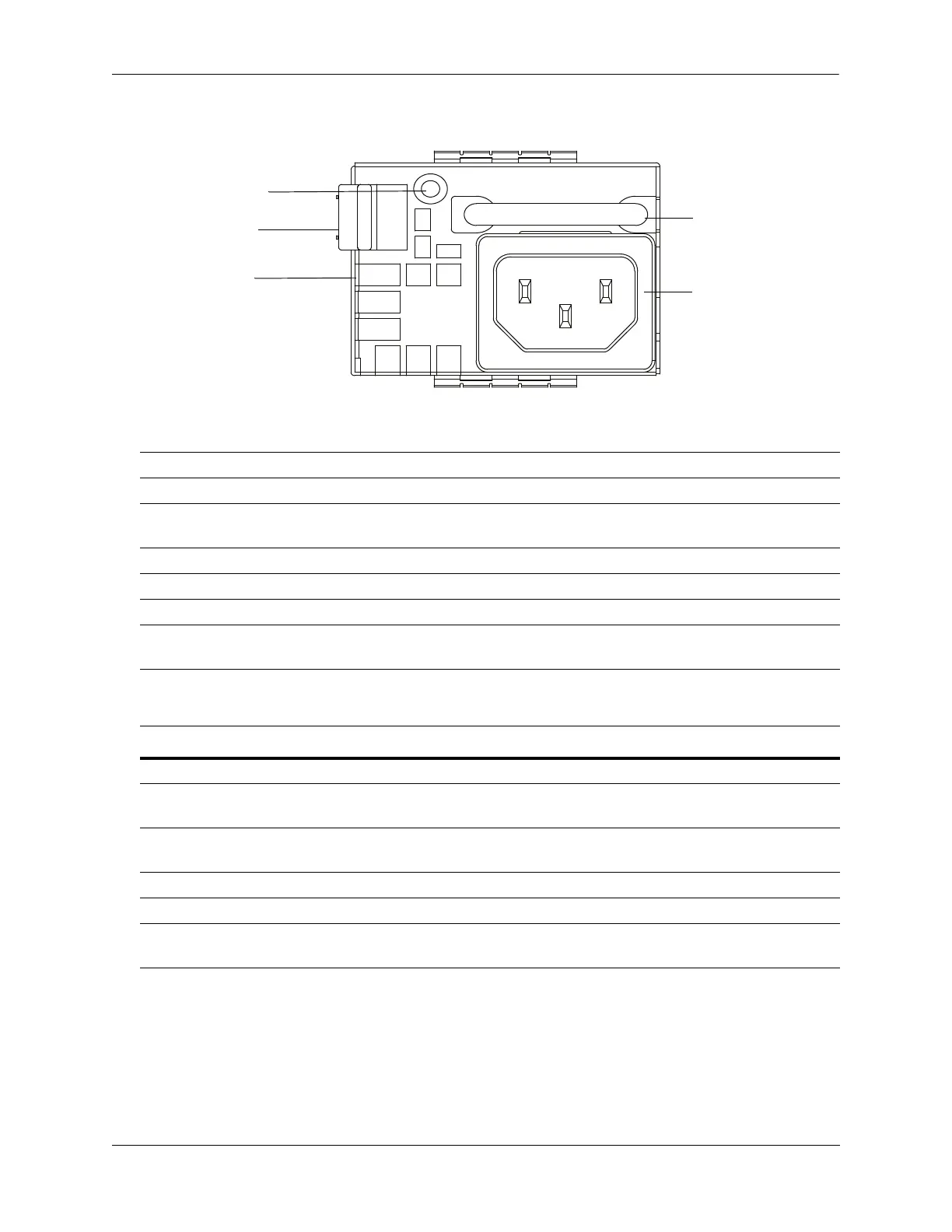

OS6560-BP 150W AC Power Supply Front Panel
OS6560-BP LED States
Model OS6560-BP (PS-150W-AC)
Models Supported See “Power Supplies”
Input Voltage/Current 90 V to 136 V AC /3 A
180 V to 264 VAC /1.5 A
Input Frequency 47 Hz to 63 Hz
Max. Output Power/Current 150 W/12.5 A
Weight 0.50 kg (1.10 lb)
Note Mixing the OS6560-BP with the OS6560-BP-D in the same
chassis is supported.
LED State Description
Solid Green The power supply is operating normally and providing power
Flashing Green The power supply is on standby and can provide power to the chassis if
power supply failover should occur
Flashing Red No AC power is being provided to this power supply (but another power
supply is installed and operating in the adjacent power supply bay)
Flashing Green/Red Power supply warning
Solid Red Power supply failure
Off No AC power is being provided to any power supply installed in the
chassis; all power supplies are effectively off
LED
Handle
Status LED
Air Vent
Lock Tab
AC Connector
