Chassis and Power Supplies Mounting the Switch
OmniSwitch 6560 Hardware Users Guide December 2019 page 3-25
Airflow Recommendations
To ensure proper airflow, be sure that your switch is placed in a clean, well-ventilated area free of dust
and debris and provide minimum recommended clearance at the front, back and sides of the switch, as
shown below. Restricted airflow can cause your switch to overheat, which can lead to switch failure. Refer
to the following important guidelines regarding airflow:
Follow the guidelines below regarding the minimum clearance requirements when mounting
the chassis.

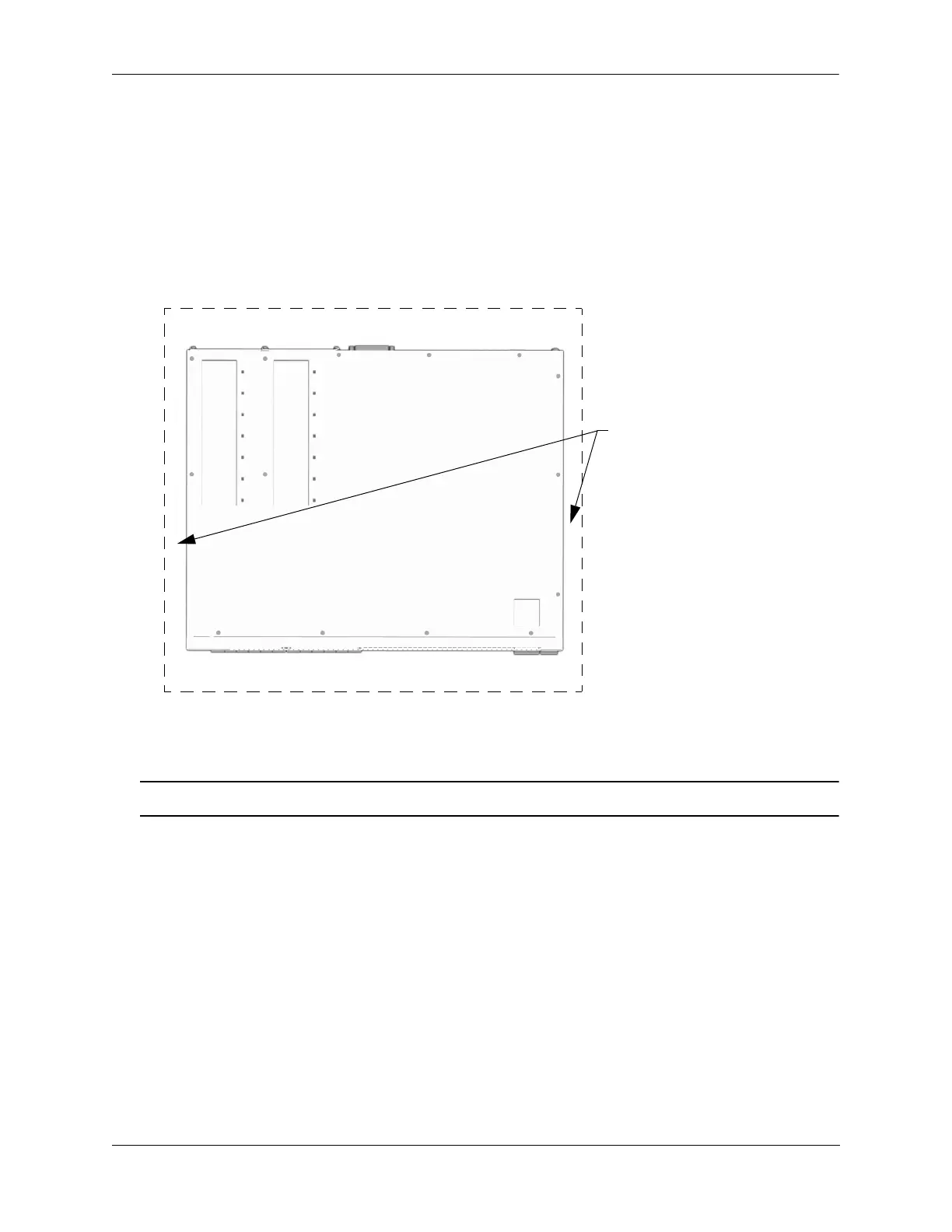

Chassis Top View
Note. Clearance is not required at the top and bottom of the chassis.
}
}
Rear. 6 inches minimum
at rear of chassis.
Front. 6 inches minimum
at front of chassis.
Sides. 2 inches minimum
at left and right sides.
