Power Supplies Chassis and Power Supplies
page 3-32 OmniSwitch 6560 Hardware Users Guide December 2019
OS6560-BP-P 300W Power Supply

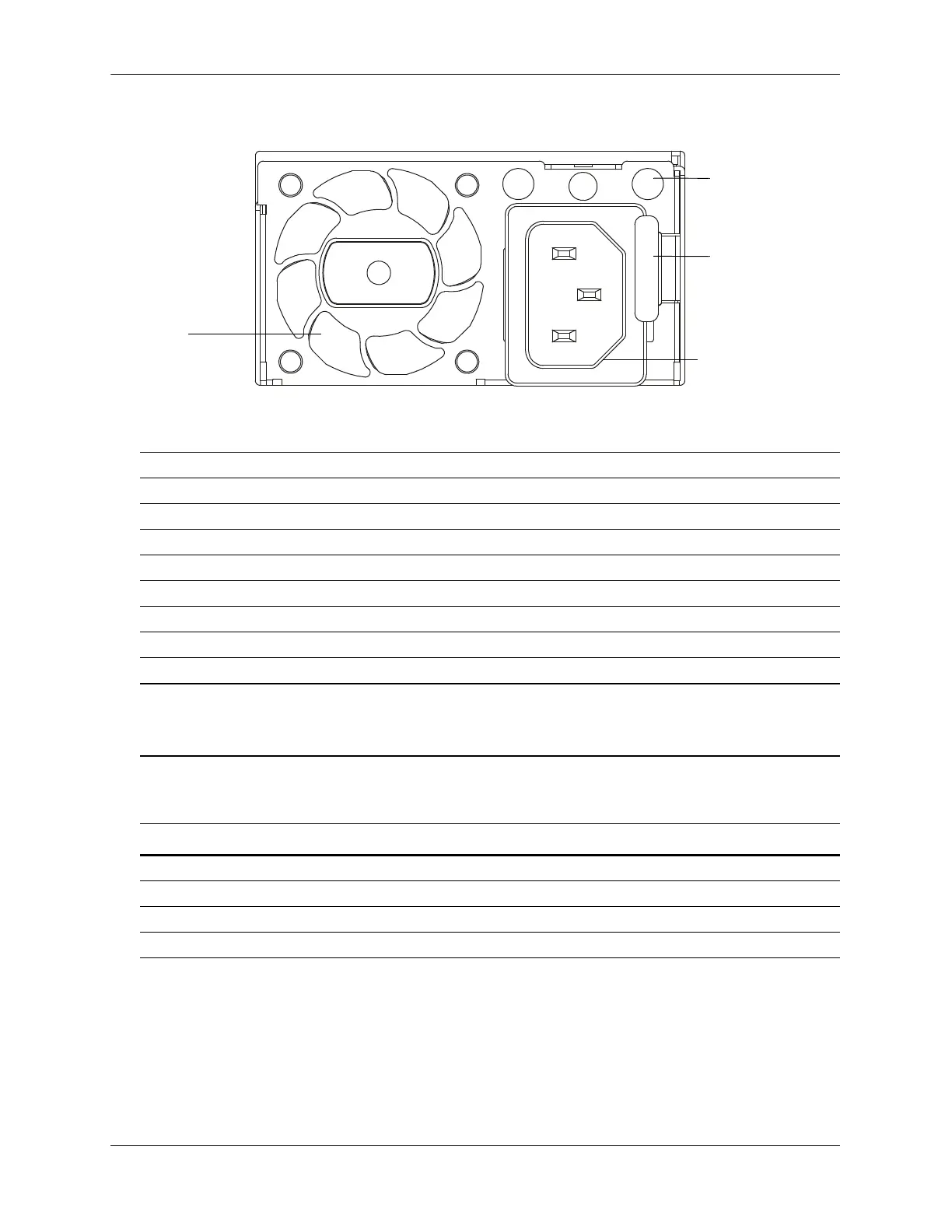

OS6560-BP-P 300W AC Power Supply Front Panel
Load Sharing Support. When two power supplies are installed, each power supply provides electrical
load sharing for PoE. See “Power over Ethernet Budget”. Mixing different wattage power supplies in a
chassis is not supported.
OS6560-BP-P LED States
Model OS6560-BP-P (PS-300W-AC-P)
Models Supported See “Power Supplies”
Input Voltage/Current 100-240VAC/4-2A
Input Frequency 50-60 Hz
DC Output +54.5V/5.5A
Max. Output for System Power 110 W
Weight 0.73 kg (1.60 lb)
Max. Output for PoE Power See “Power over Ethernet Budget”.
LED State Description
AC OK LED Solid Green AC power is good
AC OK LED Solid Red There is an AC power issue
DC OK LED Solid Green DC power is good
DC OK LED Solid Red There is a DC power issue
Air Vent
AC Connector
Status LEDs
Lock Tab
