Appendix A Troubleshoot Your Module
Figure 24 show the status indicators on the Compact 5000 I/O standard DC
output modules.

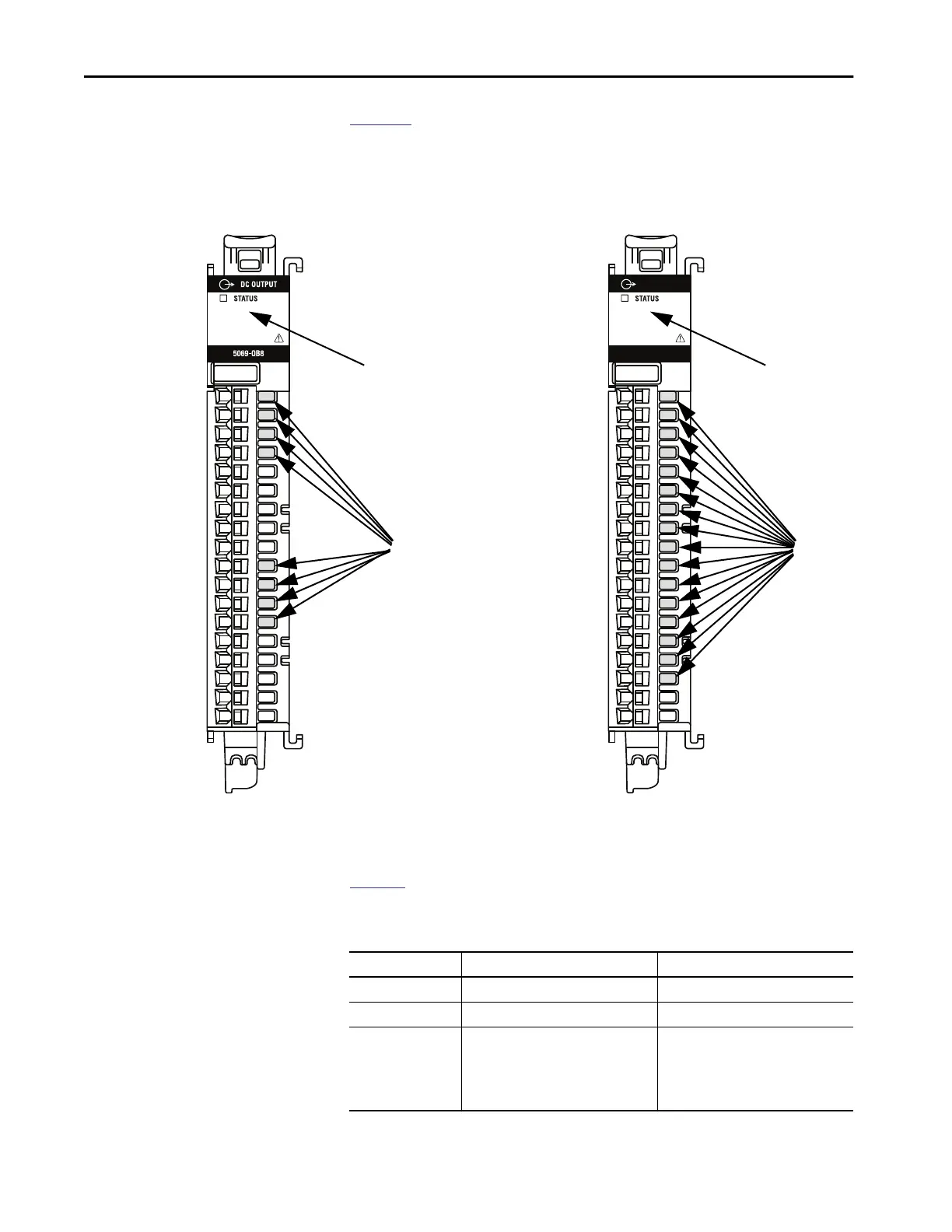

Figure 24 - Compact 5000 I/O Standard Output DC Modules Status Indicators
Table 52 describes the I/O status indicators on Compact 5000 I/O standard
DC output modules.
DC OUTPUT
5069-OB16
5069-OB16, 5069-OB16F, 5069-OB16K
IMPORTANT: The 5069-OB16F and 5069-OB16K module status indicators
appear the same as the indicators are shown on the 5069-OB16 module.
5069-OB8
Output Channel 0 (O00)
Output Channel 1 (O01)
Output Channel 2 (O02)
Output Channel 3 (O03)
LAO-
LAO-
LAO-
LAO-
LAO+
Output Channel 4 (O04)
Output Channel 5 (O05)
Output Channel 6 (O06)
Output Channel 7 (O07)
LA1-
LA1-
LA1-
LA1-
LA1+
Module Status
Indicator
I/O Status
Indicators
Output Channel 0 (O00)
Output Channel 1 (O01)
Output Channel 2 (O02)
Output Channel 3 (O03)
Output Channel 4 (O04)
Output Channel 5 (O05)
Output Channel 6 (O06)
Output Channel 7 (O07)
Output Channel 8 (O08)
Output Channel 9 (O09)
Output Channel 10 (O10)
Output Channel 11 (O11)
Output Channel 12 (O12)
Output Channel 13 (O13)
Output Channel 14 (O14)
Output Channel 15 (O15)
LA+
LA-
Module Status
Indicator
I/O Status
Indicators
Table 52 - I/O Status Indicators - Compact 5000 I/O Standard DC Output Modules
Indicator State Description Recommended Action
Off Output is Off, or no module power applied None
Steady yellow The output is On. None
Flashing red One of the following:
• A No Load or Short Circuit condition
exists.
• 5069-OB8 only - A Field Power Loss
condition exists.
One of the following:
• Locate and correct the no load or short
circuit condition.
• Locate and correct the cause of field
power loss condition.
