Rockwell Automation Publication 2097-UM002D-EN-P - April 2017 125
Troubleshoot the Kinetix 350 Drive Chapter 7
Only selected drives faults can be configured. In the Drive Behavior, F xx Fault
Codes tables, the controlling attribute is given for programmable fault actions.

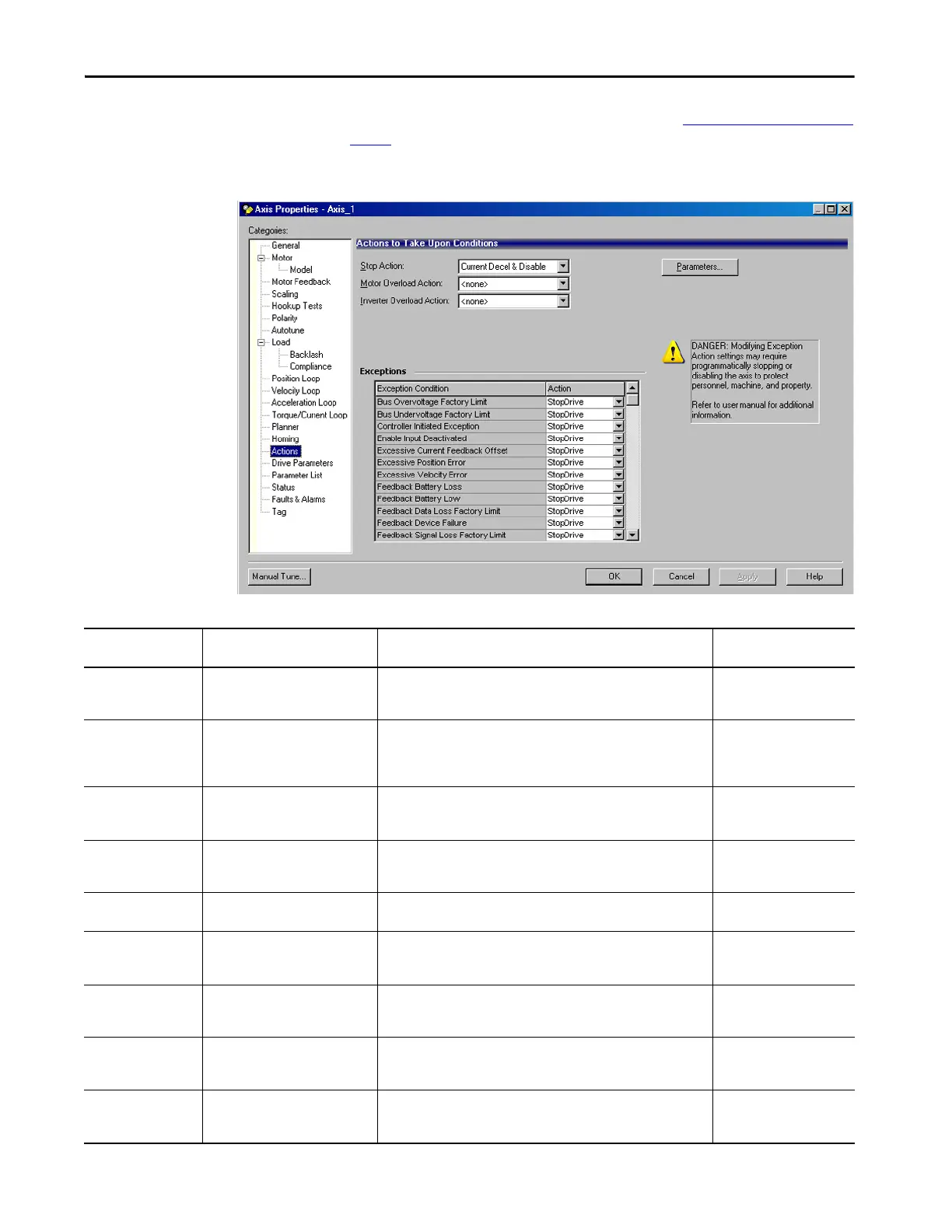

Figure 54 - RSLogix 5000 Axis Properties - Actions Category
Table 58 - Drive Behavior, F xx Fault Codes
Four-digit Display Exception Description
Best Stopping Method
(Only Major Fault)
F 02 Motor Commutation
Permanent magnet motor commutation problem detected. For example,
illegal state 111 or 000 for a UVW commutation device. This exception is
supported for only TTL motors with Hall sensors.
Disable/Coast
F 03 Motor Overspeed
Motor speed has exceeded its maximum limit that is given by the Motor
Overspeed Factory Limit attribute that is associated with the motor type.
This exception triggers when either the electrical frequency exceeds 500 Hz
or the motor is command to go 125% of its max rated speed.
Disable/Coast
F 05 Motor Overtemperature
Motor temperature has exceeded its factory set temperature limit that is
given by Motor Overtemperature Factory Limit, or the integral motor
thermal switch has tripped.
Disable/Coast
F 07 Motor Thermal Overload
Motor thermal model has exceeded its factory set thermal capacity limit
that is given by Motor Thermal Overload Factory Limit. This limit is 108 °C
(226 °F) for the Kinetix 350 drive.
Decel/Disable
F 10 Inverter Overcurrent
Inverter current has exceeded the factory set peak or instantaneous current
limit. This limit is set to 450% of the rated drive current for a single phase.
Disable/Coast
F 11 Inverter Overtemperature
Inverter temperature has exceeded its factory set temperature limit that is
given by Inverter Overtemperature Factory Limit. Detected when an internal
temperature sensor senses 108 °C (226 °F).
Disable/Coast
F 13 Inverter Thermal Overload
Inverter thermal model has exceeded its factory set thermal capacity limit
that is given by Inverter Thermal Overload Factory Limit. This threshold is set
to 108 °C (226 °F).
Disable/Coast
F 33 Bus Undervoltage
DC Bus voltage level is below the factory set limit that is given by Bus
Undervoltage Factory Limit. This limit is set at 75% of the nominal voltage
as determined on powerup.
Decel/Disable
F 35 Bus Overvoltage
DC Bus voltage level is above the factory set limit that is given by Bus
Overvoltage Factory Limit. For 240V drives the limit is 420V. For 480V drives,
the limit is 840V.
Disable/Coast
