Rockwell Automation Publication 2097-UM002D-EN-P - April 2017 75
Connect the Kinetix 350 Drive System Chapter 4
Figure 44 to locate the connector on your Logix5000™ communication
module.
Shielded Ethernet cable is available in lengths up to 78 m (256 ft). However,
the total length of Ethernet cable connecting drive-to-drive, drive-to-
controller, or drive-to-switch must not exceed 100 m (328 ft).
If the entire channel is constructed of stranded cable (no fixed cable), then this
equation is for calculating maximum length:
Maximum Length = (113-2N)/y, meters
where N = the number of connections in the channel
and y = the loss factor that is compared to fixed cable (typically 1.2…1.5).

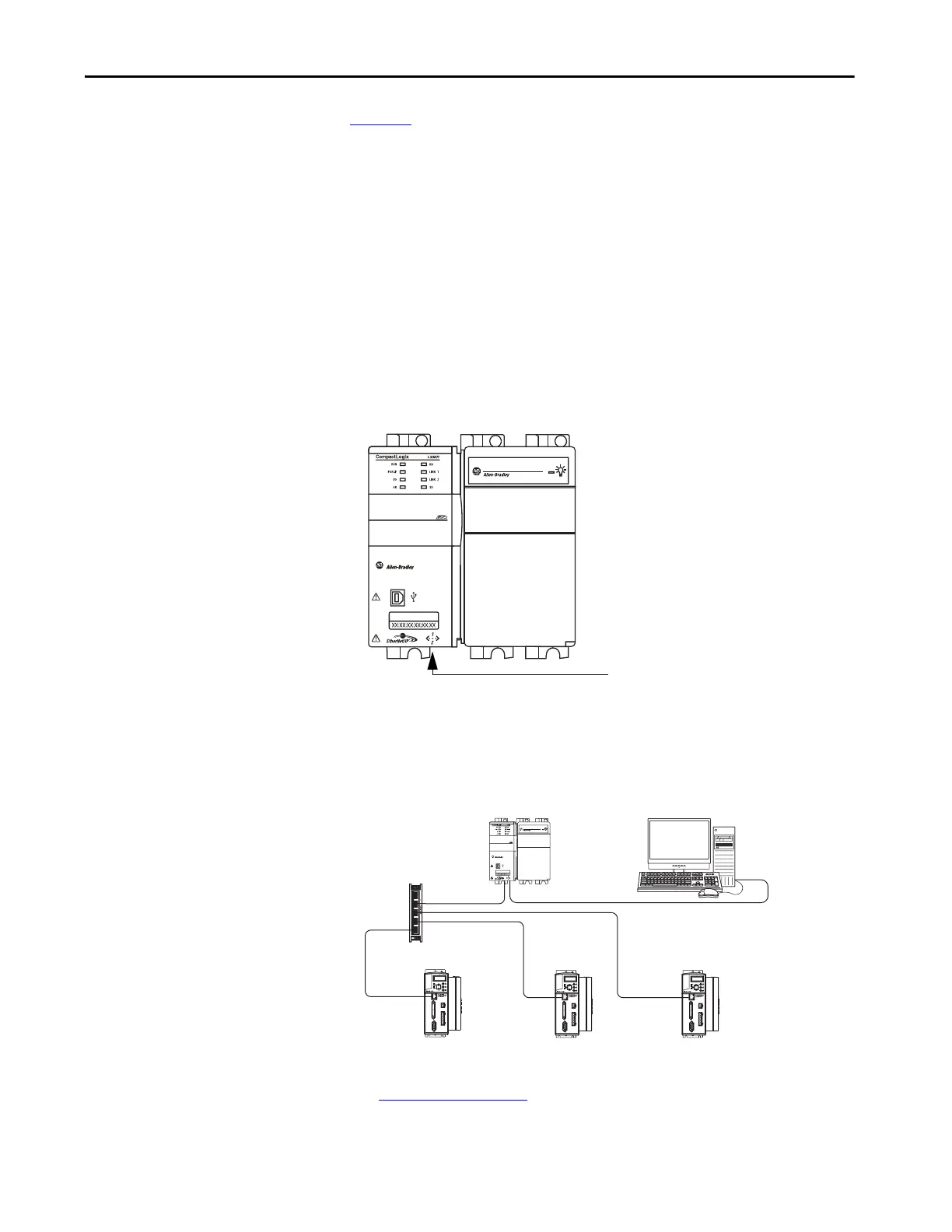

Figure 44 - CompactLogix Ethernet Port Location
The Port 1 Ethernet connection is used for connecting to a Logix5000™
controller and to configure your Kinetix 350 drive.
Figure 45 - Ethernet Wiring Example - External Switch
(1) See Ethernet Cable Connections on page 74 for information on how to use an unmanaged switch in your application.
The Ethernet ports are on
bottom of controller.
CompactLogix™ Controller Platform
1769-L33ERM Shown
CompactLogix Controller Platform
1769-L33ERM Shown
Personal Computer
1783-US05T
Stratix 2000
Switch
(1)
Kinetix 350 Drives
To Next Page
