Chapter 5 Configure and Start up the Kinetix 350 Drive System

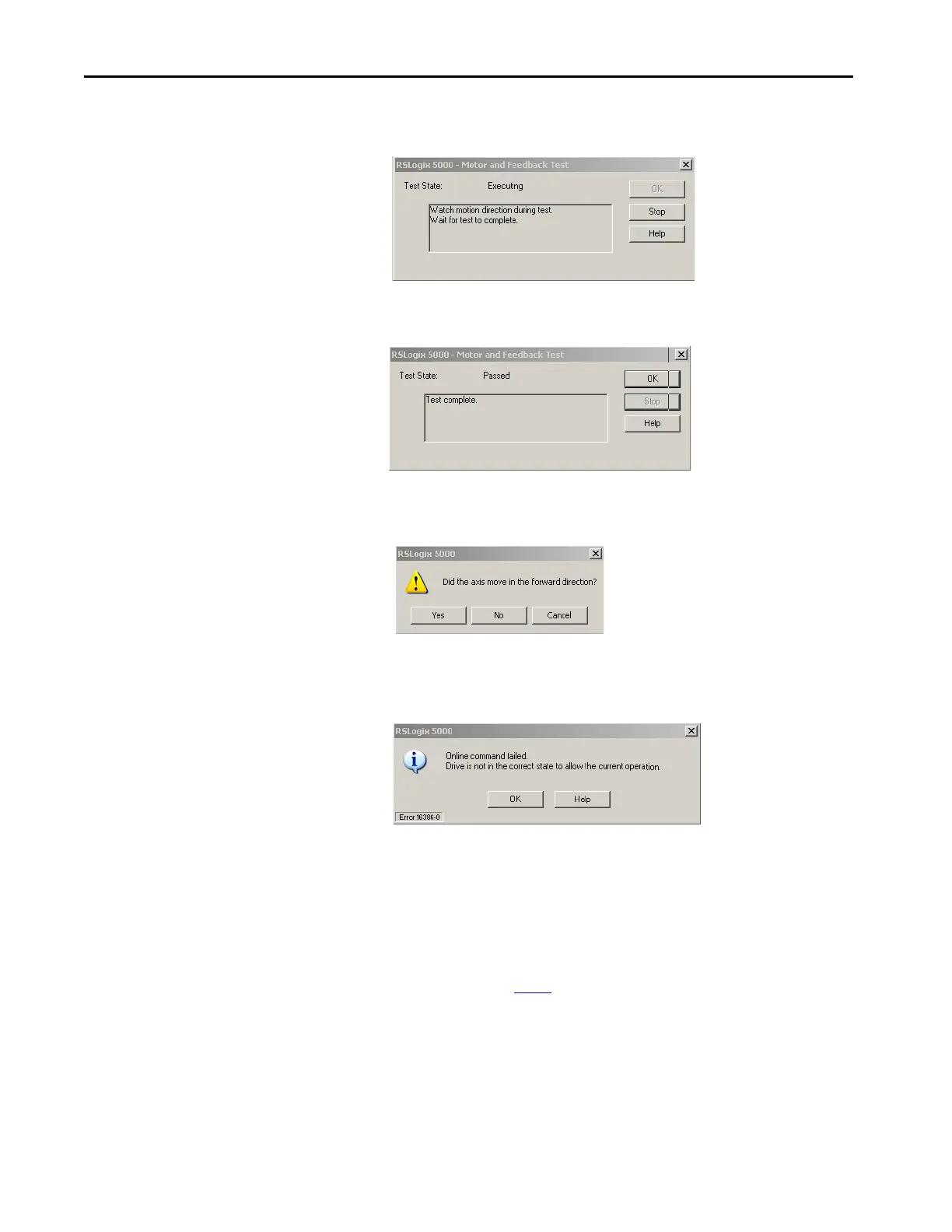

The RSLogix 5000 - Motor and Feedback Test dialog box appears. The
Test State is Executing.
When the test completes successfully, the Test State changes from
Executing to Passed.
8. Click OK.
This dialog box appears, to confirm that the direction was correct.
9. Click Yes.
If the test fails, this dialog box appears.
a. Click OK.
b. Verify that the Axis status indicator turned solid green during the
test.
c. Verify that the drive ENABLE signal is applied to the axis you are
testing or that the enableInputChecking attribute is set to zero.
d. Verify the unit values that are entered in the Scaling category.
e. Return to main step 6
and run the test again.
