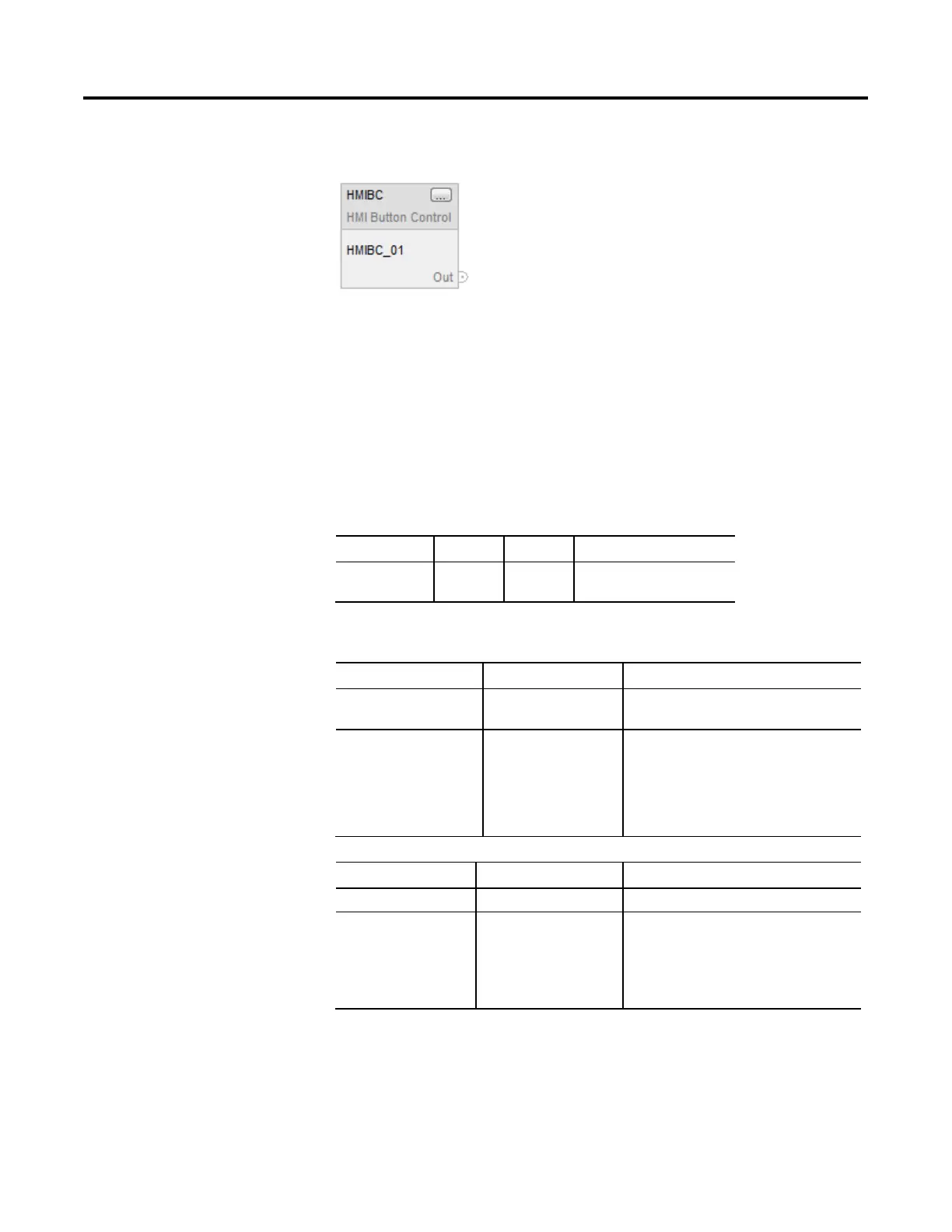

Function Block
Tip:
For the HMIBC tag, use only the Out parameter, and optionally, the ProgFB
parameter in Function Block diagrams.
Structured Text
HMIBC (HMIBC tag)
Operands
These operands are located on the instruction.
Operand Type Format Description
HMIBC tag HMIBC tag Goes active when the data bit is set
HMIBC Structure
Input parameter Data Type Description
EnableIn BOOL Enable input. If false, the instruction does not
execute.
Prog FB BOOL Program Feedback. This value is not processed by the
instruction, but transmitted to all registered HMI
devices. The purpose or meaning of this value is user
defined. For example, use this to determine if the
expected action actually executes when pressing the
button and displays that status on the HMI device.
Output parameter Data Type Description
EnableOut BOOL Indicates if instruction is enabled.
Button State BOOL Cleared to false when no registered HMI device
buttons are pressed.
Set to true when at least one registered HMI button
is pressed.
Default value is false.
