Allen-Bradley MicroLogix 1100 Instruction Set Reference Manual

Publication 1763-RM001B-EN-P - April 2007
382 Communications Instructions
“This Controller” Parameters

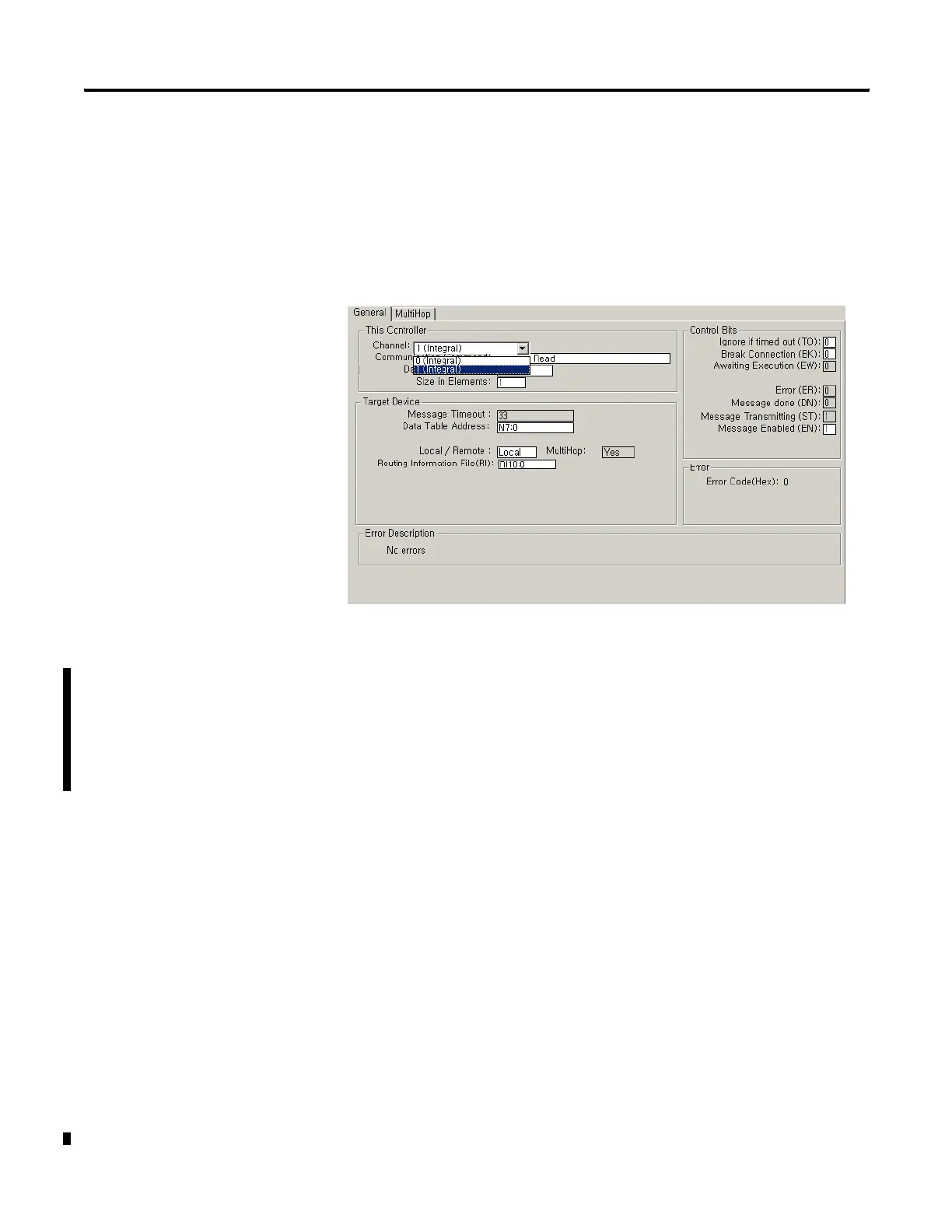

Channel
You must select Channel 1 (Integral) to use Ethernet pathways for
messaging.
Communication Command
The controller supports seven different types of communication
commands. If the target device supports any of these command types, the
controller should be capable of exchange data with the device. You can
use one of the seven kinds of message commands, 500CPU, 485CIF, PLC5
and CIP Generic[
(1)
. Refer to the previous examples for the usage of each
command.
(1) MicroLogix 1100 OS Series B FRN 4 or later
