Communications Instructions 399

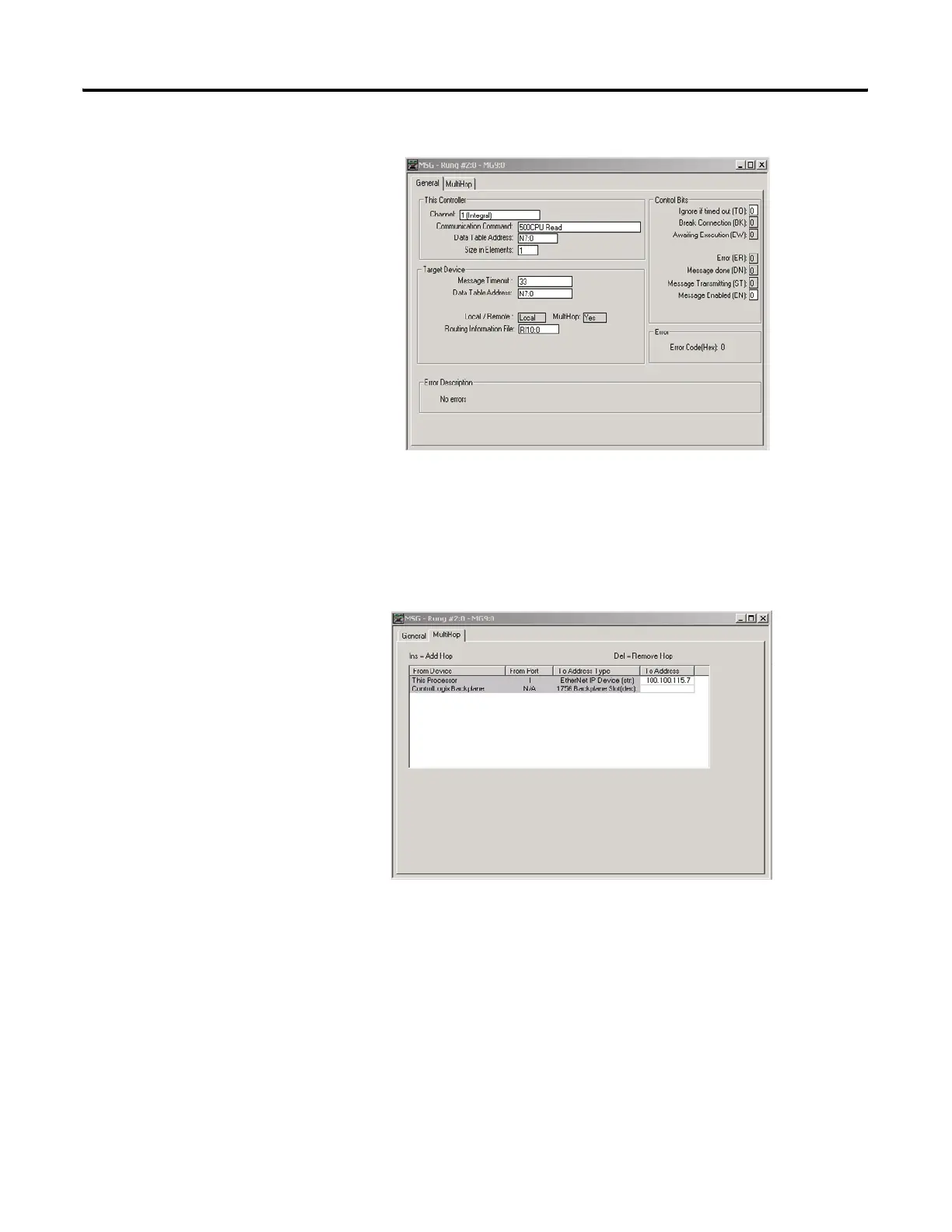

A MSG route must be configured in the MultiHop tab of the MSG Setup
Screen.
Click on the MultiHop tab.
Enter in the IP address of the 1756 ENET module, select ControlLogix
backplane, press the Insert key and enter in the backplane slot numbers
of the DHRIO module (0-16) under the 'To Address' fields.
Click on the ControlLogix Backplane to highlight it and press the Insert
key on your computer’s keyboard to add another hop.
Double click on the From Device under the ControlLogix Backplane and
select the 1756-DHRIO.
Make sure that the From Port for the DHRIO module is set for Channel A.
