Publication 1763-RM001B-EN-P - April 2007

Communications Instructions 405

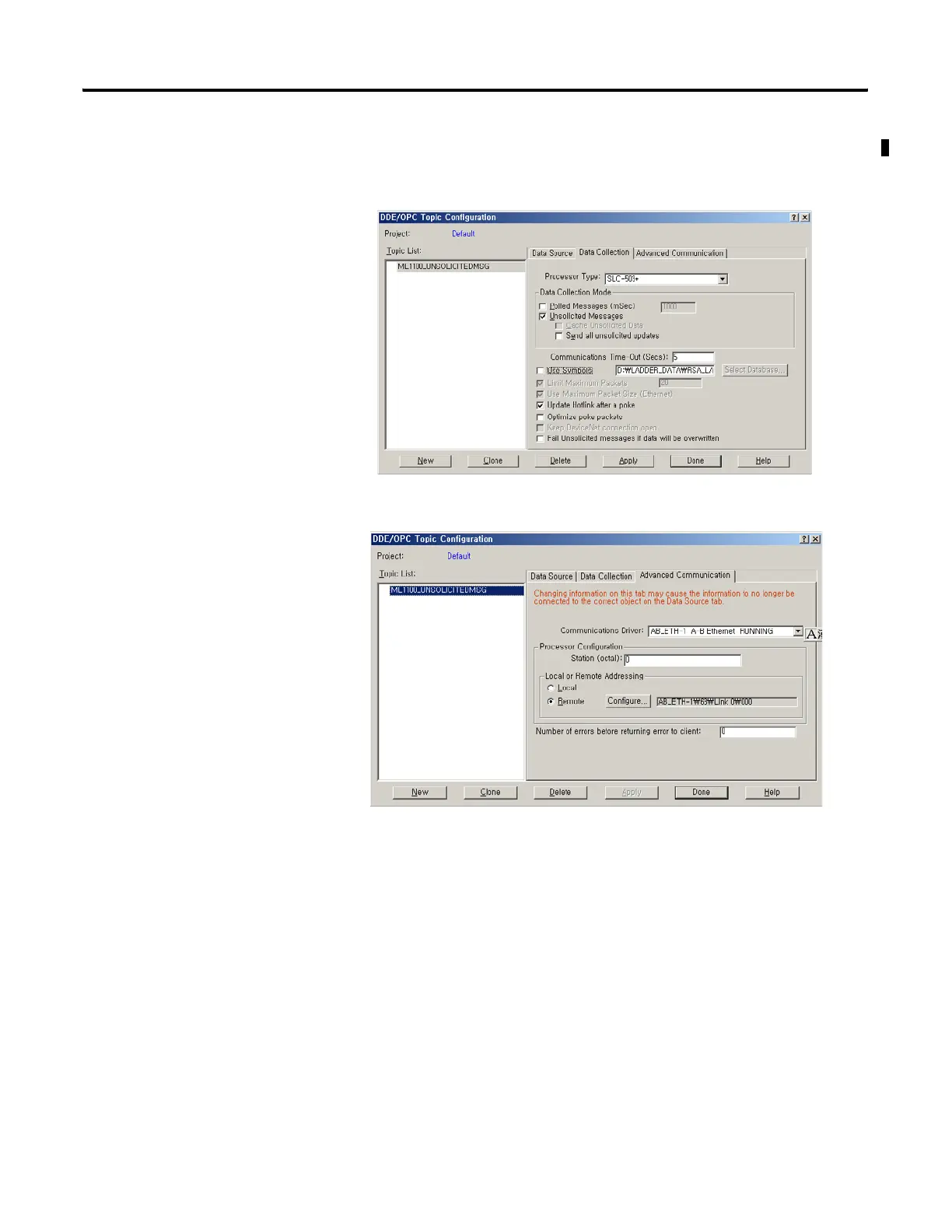

In RSLinx, select DDE/OPC menu, then select Topic Configuration.

Click new, enter a topic name, and click OK. The DDE/OPC Topic

Configuration dialog will appear.
