Publication 1763-RM001B-EN-P - April 2007

408 Communications Instructions

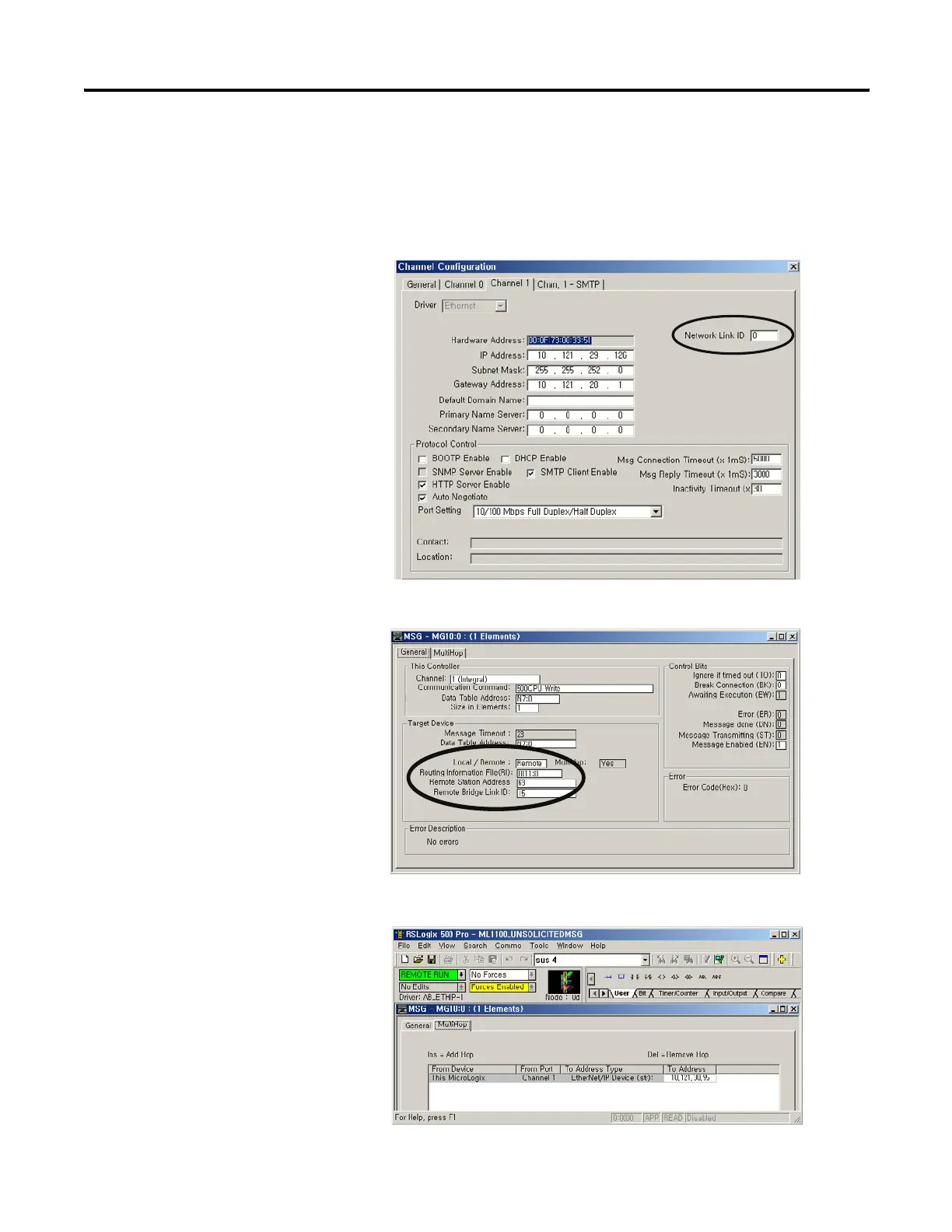

ML1100 Channel 1 Network Link ID must be matched with the

DDE/OPC Topic Remote ID configured in step #2 (0, in this

example). Also configure a Remote Ethernet MSG in the ML1100 to

Remote Station Address 63 and Remote Link ID 15:
