Publication 1763-RM001B-EN-P - April 2007

Communications Instructions 407

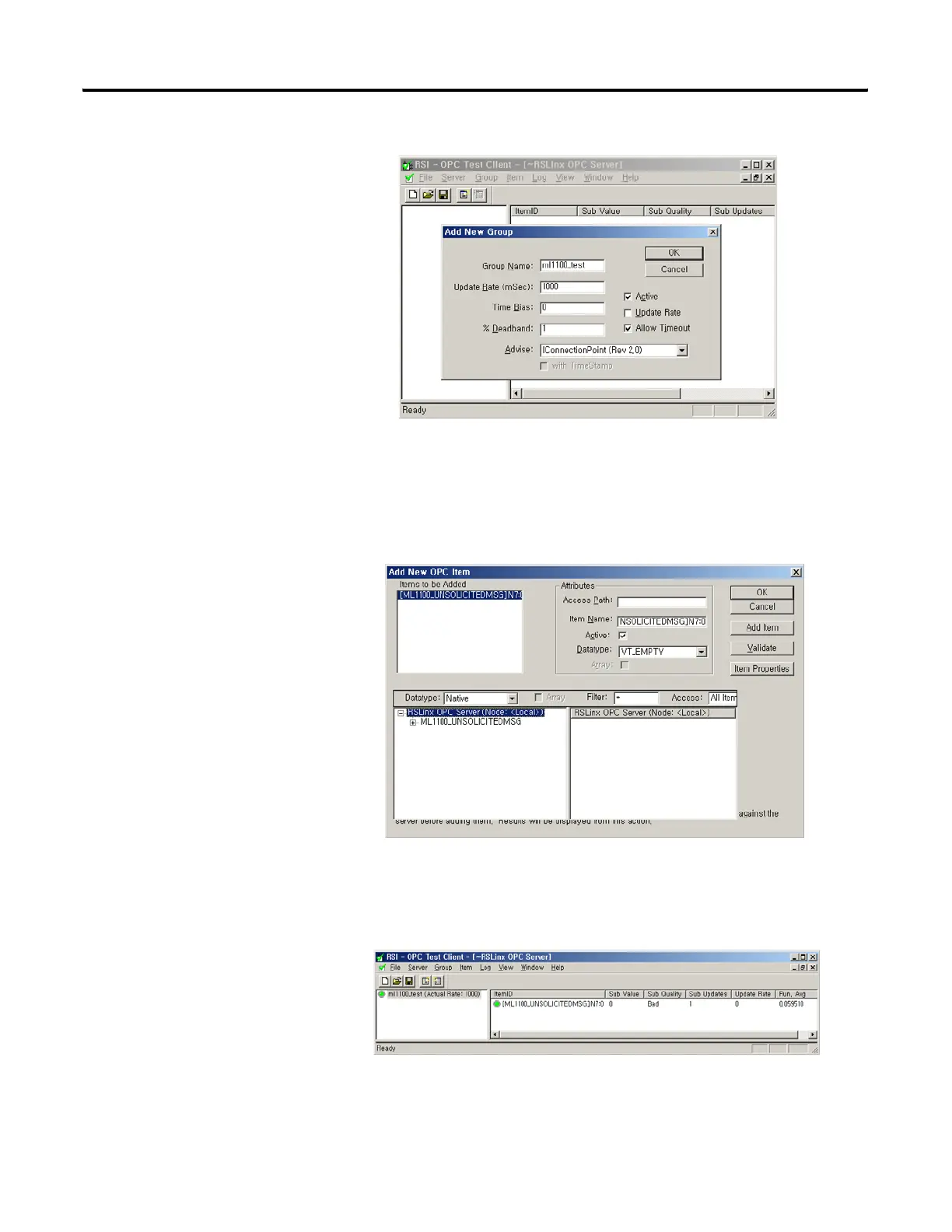

2. Add a new group:

3. Add a new item:

4. Note that the “Sub Quality” will be “Bad” until an unsolicited

message is received:

4. Configure the ML1100 MSG instruction
