Allen-Bradley MicroLogix 1100 Instruction Set Reference Manual

Publication 1763-RM001C-EN-P - October 2009
Knowledgebase Quick Starts 547

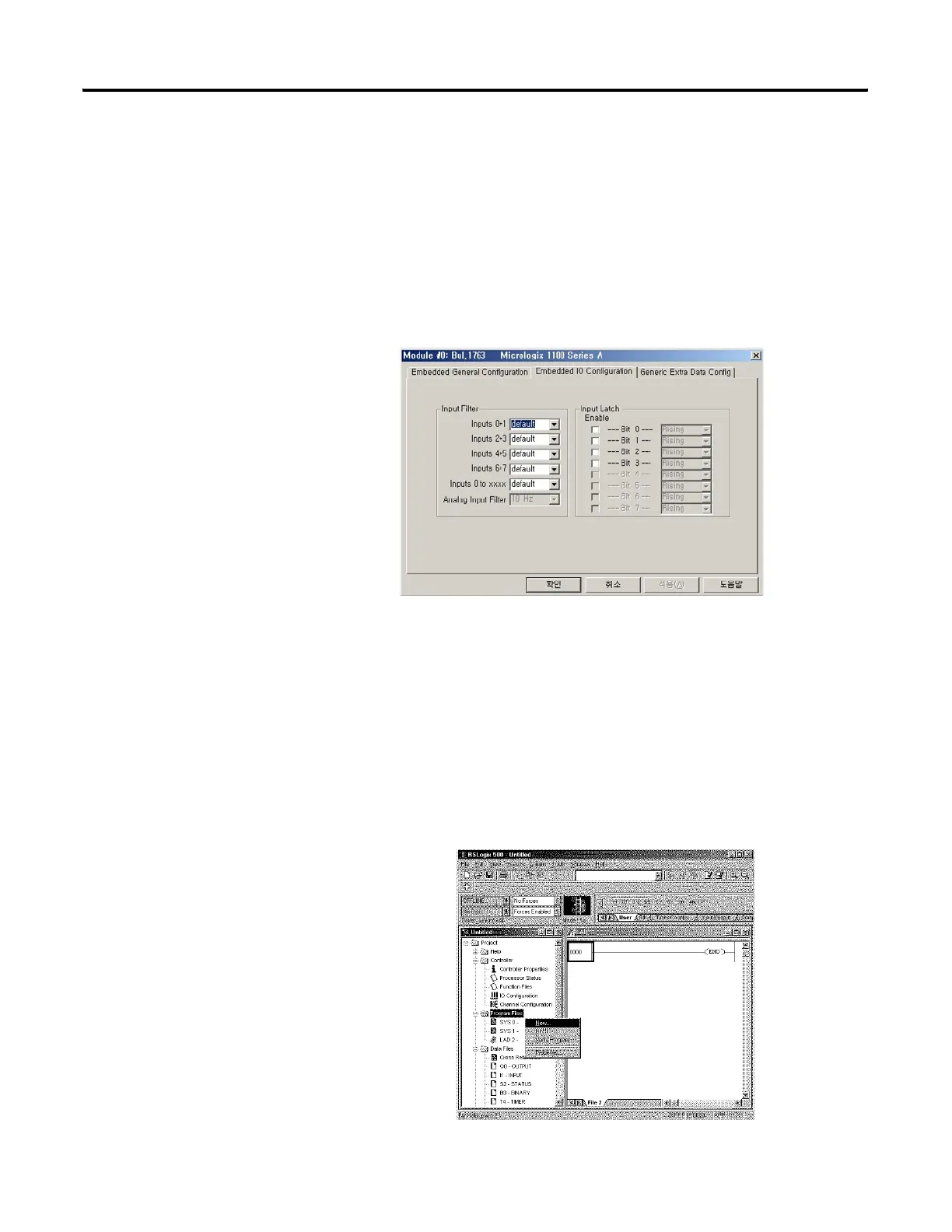

1. Select “I/O Configuration”
2. Highlight the “MicroLogix 1100“
3. Select “Adv Config“
4. Select the “Embedded I/O Configuration” Tab
5. Adjust Input filters as needed
Problem #2: The HSC instruction does not accumulate counts and the
Error Code (ER) shows a value of (1).
Solution:A file number was entered into (PFN) but the value entered was
less then (3) or greater then (255) or the file number entered was correct,
however the file does not exist.
Create the NEW program file by “Right” mouse clicking on “Program
Files”
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

Allen-Bradley MicroLogix 1100 Specifications

General

Processor	32-bit
Programming Software	RSLogix 500
Mounting	DIN rail or panel mount
Power Supply	24V DC
Type	Compact PLC
Digital Inputs	12
Digital Outputs	8
Analog Inputs	4 (depending on model)
Analog Outputs	Optional with expansion module
Programming Language	Ladder Logic
Operating Temperature	0 to 55 °C (32 to 131 °F)
Series	MicroLogix
