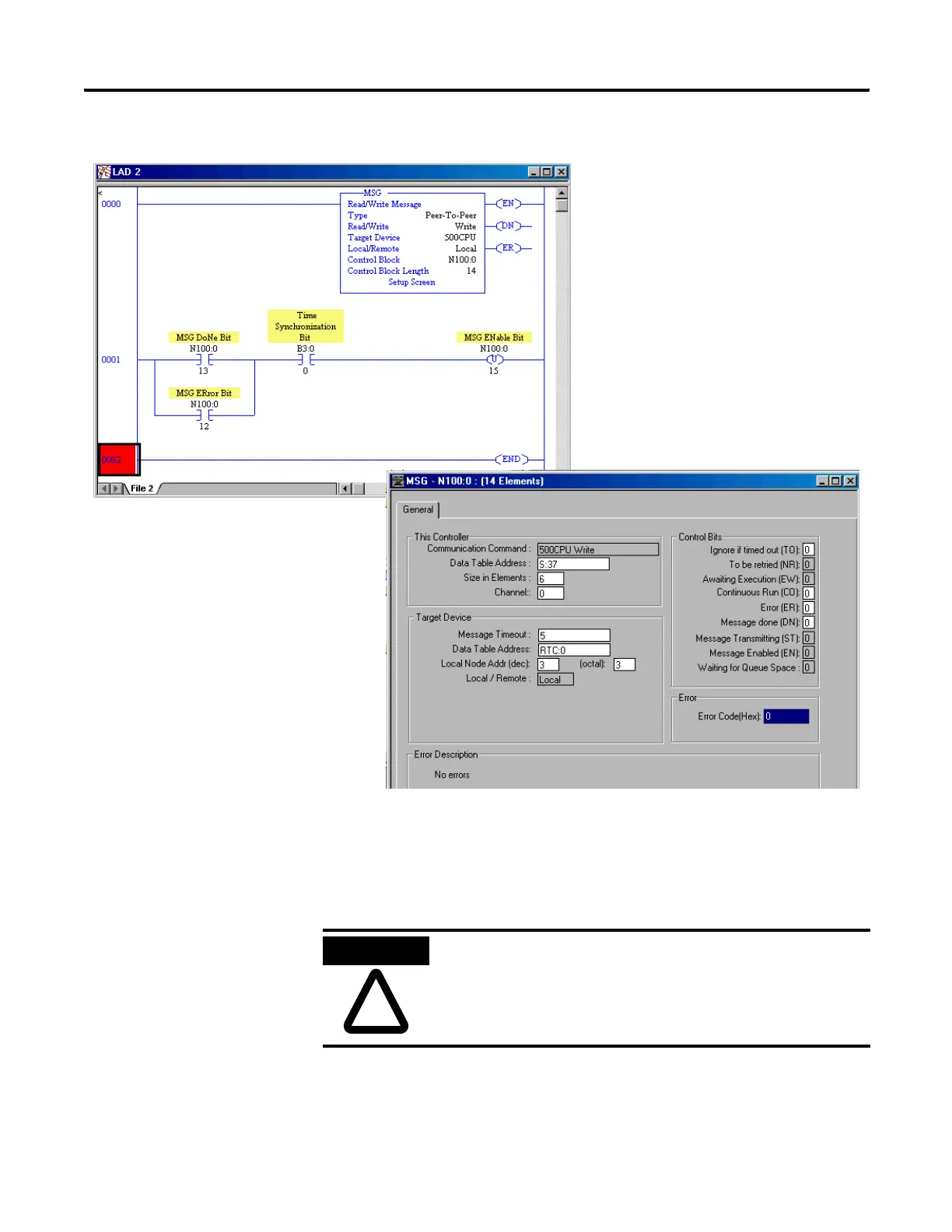

The example above messages the SLC 500 Date and Time data (S:37 -

S:42)to the MicroLogix 1100 RTC, each time the SLC processor is powered

up and placed into the RUN mode or each time the Time Synchronization

Bit (B3:0/0) is enabled.

ATTENTION

Valid years for the Micrologix 1100 begin with 1998. Any

date/time/year values, prior to 1998, that are sent to a

Micrologix controller will generate a MSG Error Code

10h.
