Allen-Bradley MicroLogix 1100 Instruction Set Reference Manual

Publication 1763-RM001C-EN-P - October 2009
Knowledgebase Quick Starts 561
IMPORTANT NOTE - Integer file N10 must be created with a length
of 5 or the software will not compile the ladder program. Also an
embedded RTC must be enabled and configured if the Date and
Time stamp are to be used. If an RTC module is disabled the data
for these fields will contain zeros.
6. Click OK when completed

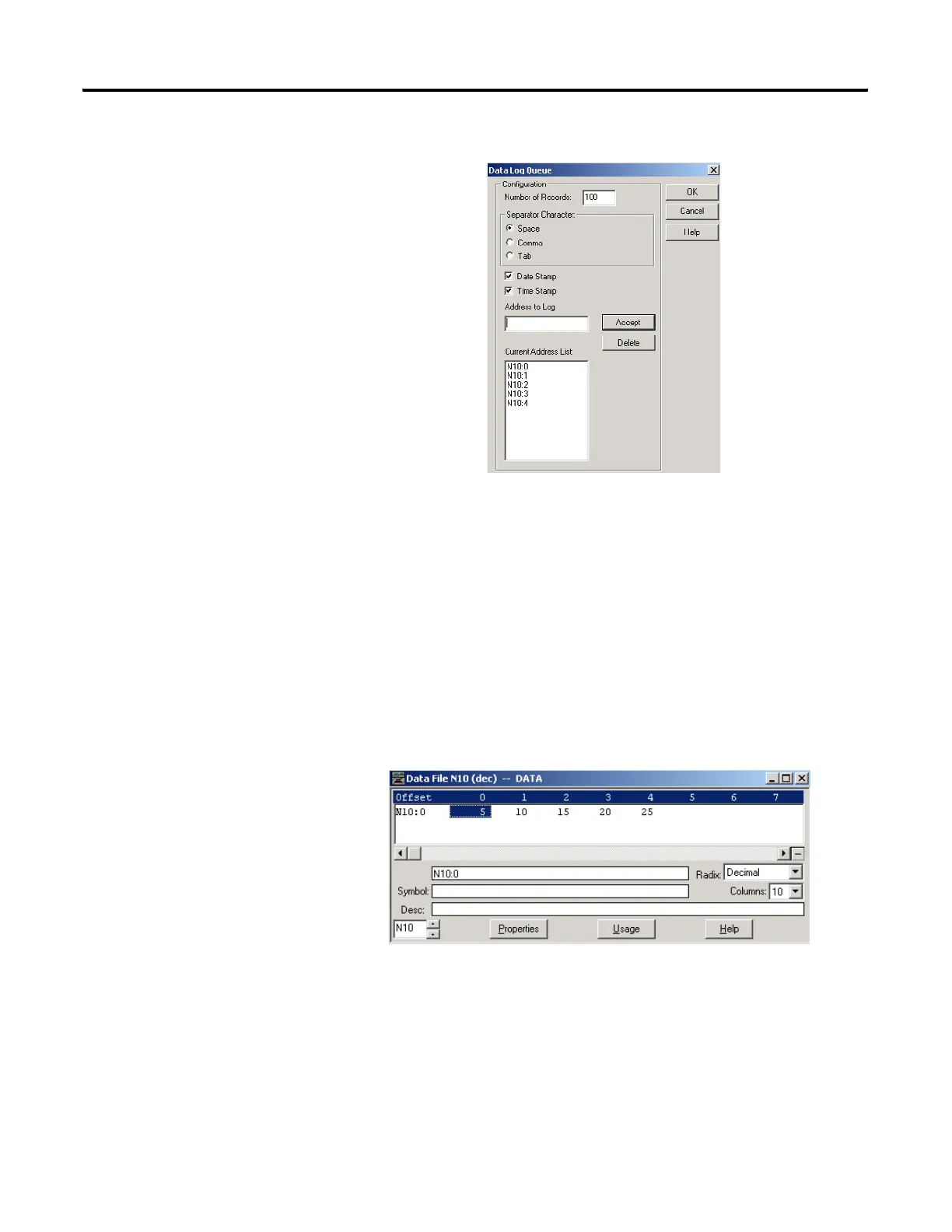

7. Click OK and accept the Data Log Queue window
8. Once the N10 file has been created enter the following values for
each
9. Download the program to your MicroLogix 1100.
10. Go On-Line
11. Toggle the Data Logging Enable(B3:0/0) bit Off to On a total of 5
times.
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

Allen-Bradley MicroLogix 1100 Specifications

General

Processor	32-bit
Programming Software	RSLogix 500
Mounting	DIN rail or panel mount
Power Supply	24V DC
Type	Compact PLC
Digital Inputs	12
Digital Outputs	8
Analog Inputs	4 (depending on model)
Analog Outputs	Optional with expansion module
Programming Language	Ladder Logic
Operating Temperature	0 to 55 °C (32 to 131 °F)
Series	MicroLogix
