Allen-Bradley MicroLogix 1100 Instruction Set Reference Manual

Publication 1763-RM001C-EN-P - October 2009
How to Use 40kHz PTO/PWM of MicroLogix 1100 Series B Controller 575
For example, assume the PTO:0.OF value is 20000 and a user wants to set
that value to x2 (twice) using the MUL instruction. If S2/14 is cleared and
S:5/0 bit is not cleared after execution of the MUL instruction, then the
result will be 32767 and Math Overflow Error will be reported at the End
of Scan.

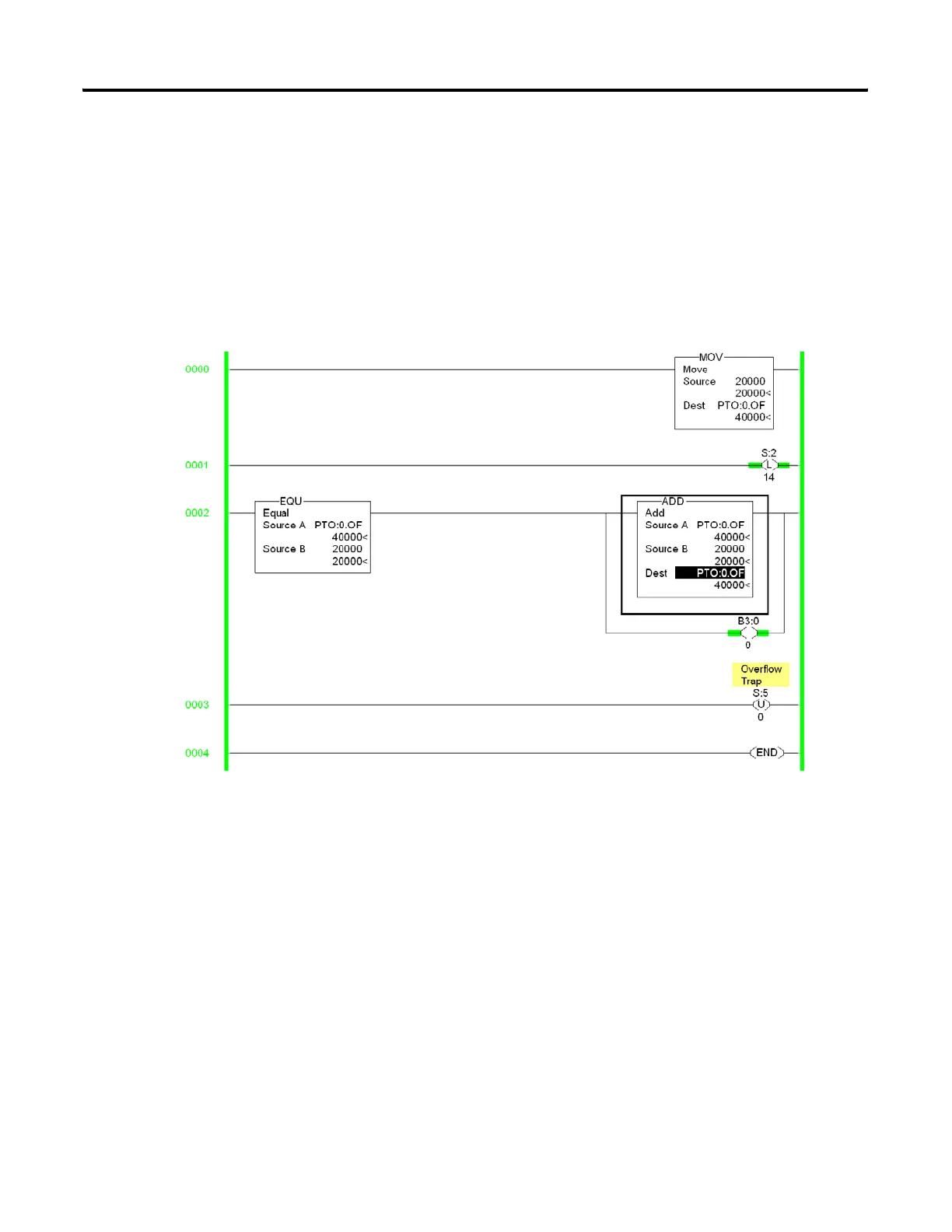

ADD Instruction Workaround Example: PTO:0.OF(40000) =
PTO:0.OF(20000) + 20000
efesotomasyon.com - Allen Bradley,Rockwell,plc,servo,drive

Allen-Bradley MicroLogix 1100 Specifications

General

Processor	32-bit
Programming Software	RSLogix 500
Mounting	DIN rail or panel mount
Power Supply	24V DC
Type	Compact PLC
Digital Inputs	12
Digital Outputs	8
Analog Inputs	4 (depending on model)
Analog Outputs	Optional with expansion module
Programming Language	Ladder Logic
Operating Temperature	0 to 55 °C (32 to 131 °F)
Series	MicroLogix
