Publication 1763-RM001C-EN-P - October 2009

576 How to Use 40kHz PTO/PWM of MicroLogix 1100 Series B Controller

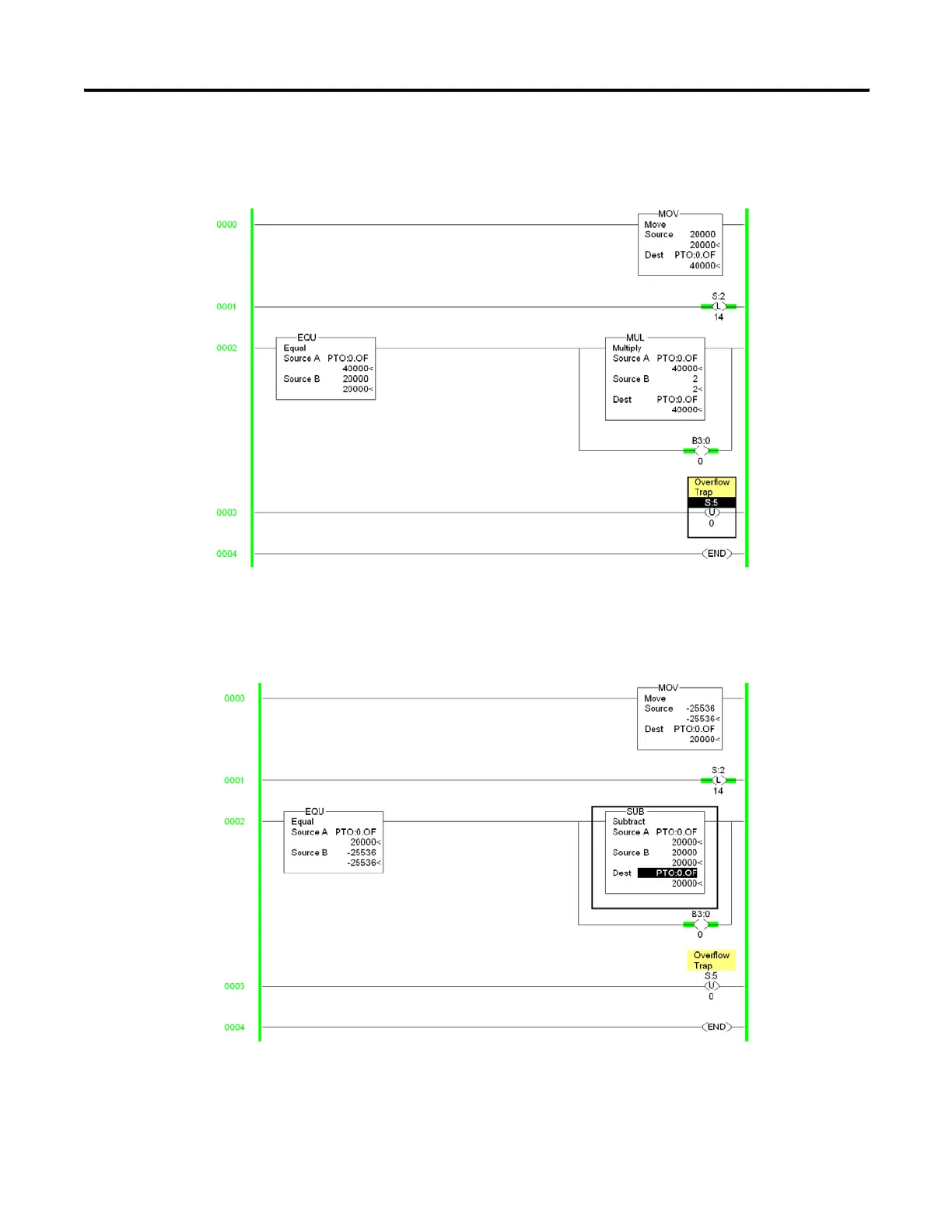

MUL Instruction Workaround Example: PTO:0.OF(40000) =

PTO:0.OF(20000) X 2

SUB Instruction Workaround Example: PTO:0.OF(20000) =

PTO:0.OF(40000) – 20000

Signed 16-bit: 0x9C40 (Hexadecimal) = -25536,

Unsigned 16-bit: 0x9C40 (Hexadecimal) = 40000
