Publication 1763-RM001C-EN-P - October 2009

68 Function Files

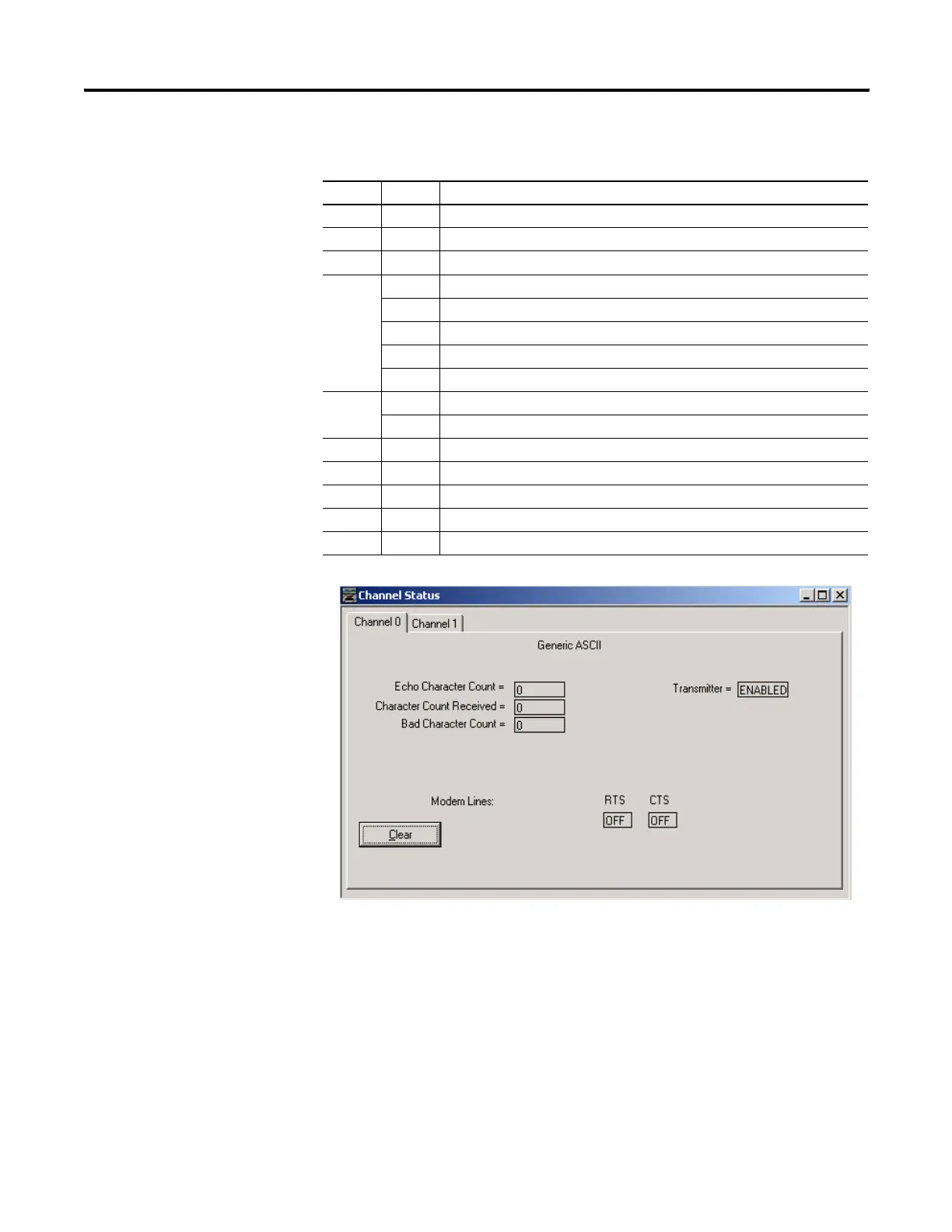

ASCII Diagnostic Counters Block

Word Bit Description

6 - DLL Diagnostic Counters Category Identifier code (always 2)

7 - Length (always 30)

8 - Format Code (always 5)

90CTS

1RTS

2 Reserved

3 Reserved

4 to 15 Reserved

10 0 Software Handshaking Status

1 to 15 Reserved

11 - Echo Character Count

12 - Received Character Count

13 to 18 - Reserved

19 - Bad Character Count

20 to 22 - Reserved
