Allen-Bradley PowerFlex 755 User Manual

Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 189
Axis Configuration Examples for the PowerFlex 755 Drive Chapter 9

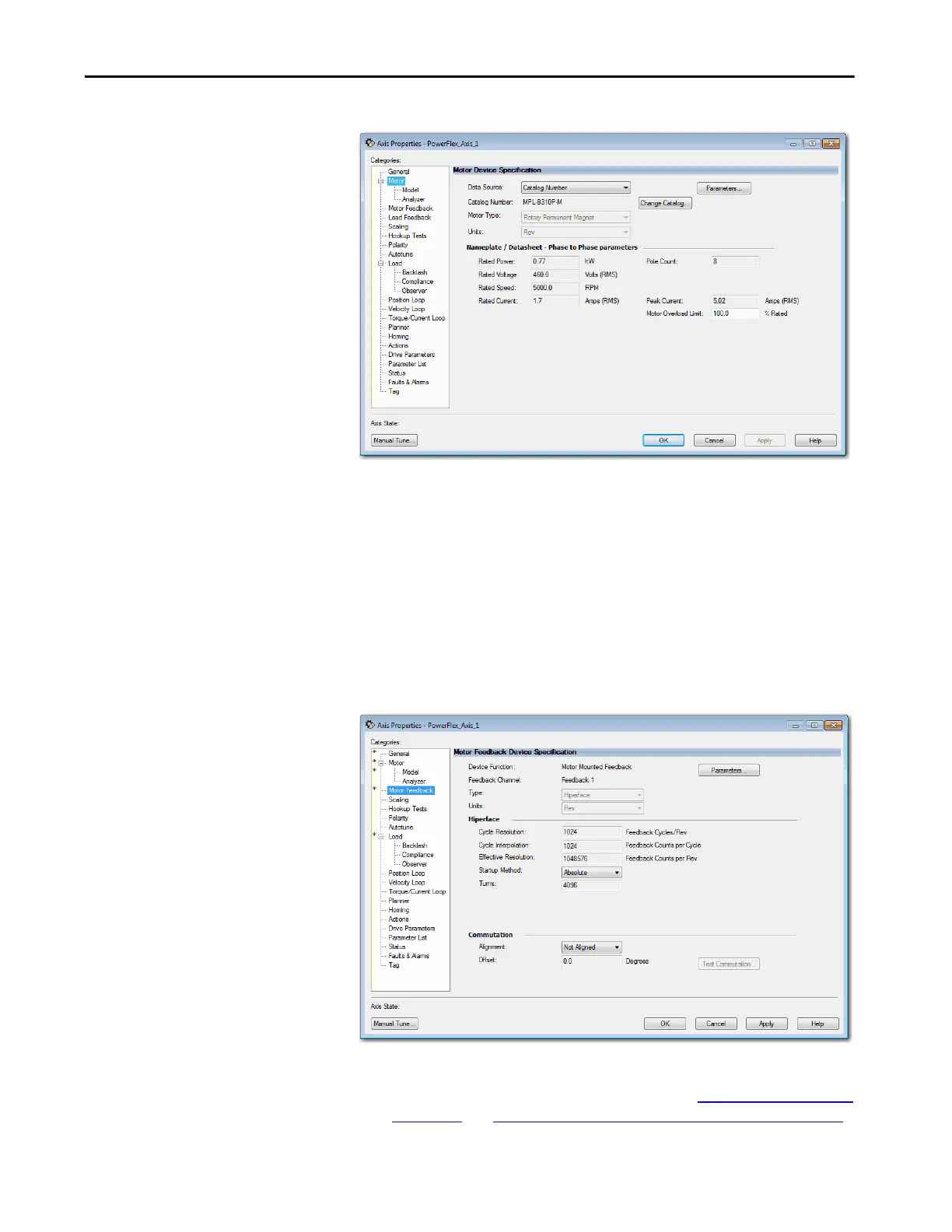

Figure 56 - Example 1: Position Loop with Motor Feedback, Motor Dialog Box
4. Choose Catalog Number as the Data Source.
5. Click Change Catalog and choose a motor.
When you select the Catalog Number for the motor specification, the
MPL-B310P-M motor is in the Motion Database. The specification
data for this motor is automatically entered for you. If the motor you are
using is not in the Change Catalog list, then it is not in the Motion
Database. You have to enter the specification data on your own.
The Motor Feedback dialog box is automatically filled based on your
motor selection.
Figure 57 - Example 1: Position Loop with Motor Feedback, Motor Feedback Dialog Box
6. Choose the Commutation Alignment.
For more information about Commutation, see Assign Motor Feedback
on page 54 and Applying the Commutation Hookup Test on page 232.
