Allen-Bradley PowerFlex 755 User Manual

Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 197
Axis Configuration Examples for the PowerFlex 755 Drive Chapter 9

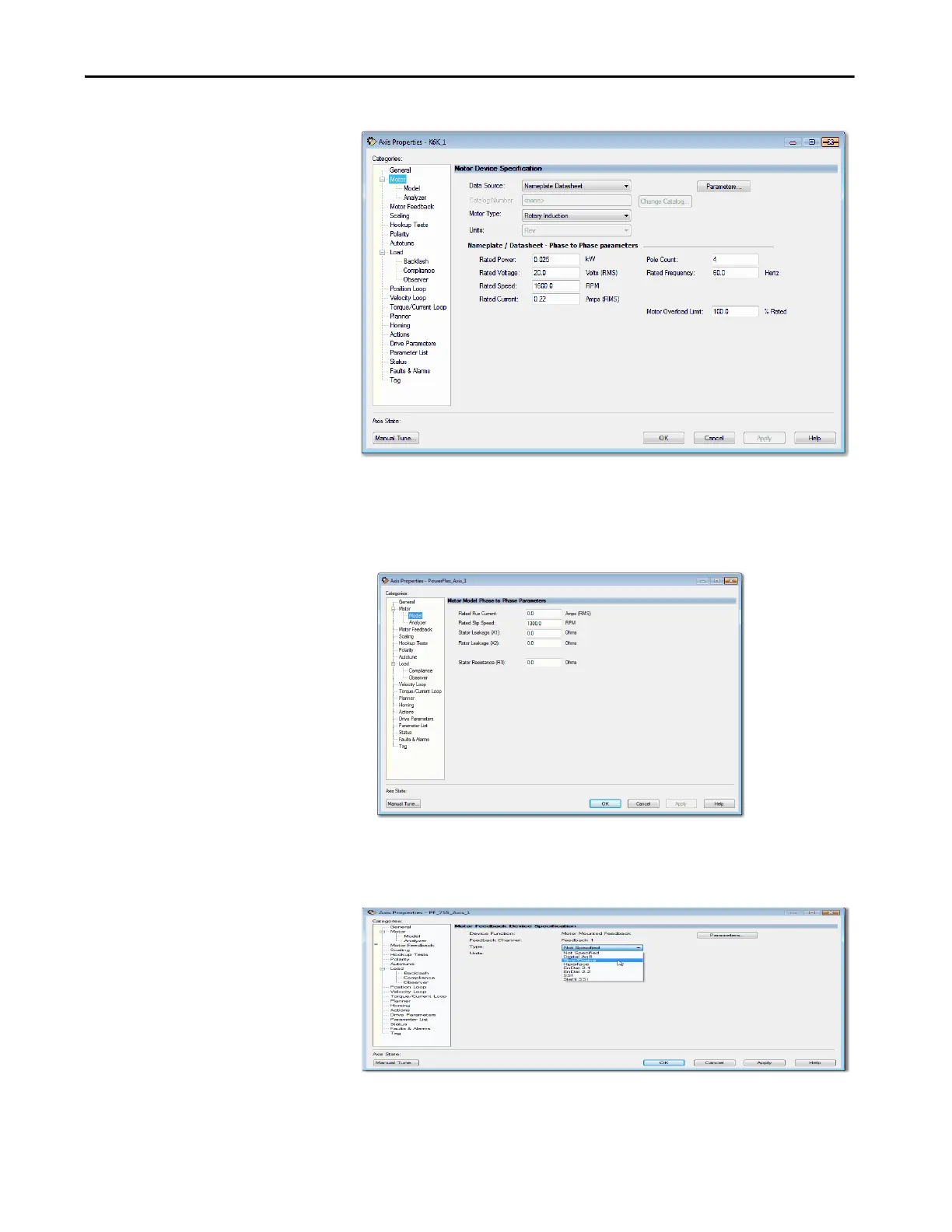

Figure 67 - Example 3: Velocity Loop with Motor Feedback, Motor Dialog Box
5. From the Data Source pull-down menu, choose Nameplate data sheet.
6. From the Motor Type pull-down menu, choose Rotary Induction.
7. Enter the parameters by using the information from the motor
Nameplate or data sheet and click Apply.
8. Enter the parameters on the Motor Model dialog box by using the
information from the motor Nameplate or data sheet and click Apply.
Figure 68 - Example 3: Motor Feedback Dialog Box, Velocity Loop with Motor Feedback

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
