Chapter 9 Axis Configuration Examples for the PowerFlex 755 Drive
9. From the Type pull-down menu, choose the type of feedback.
The fields are populated with the data that relates to the motor and
feedback types you chose.

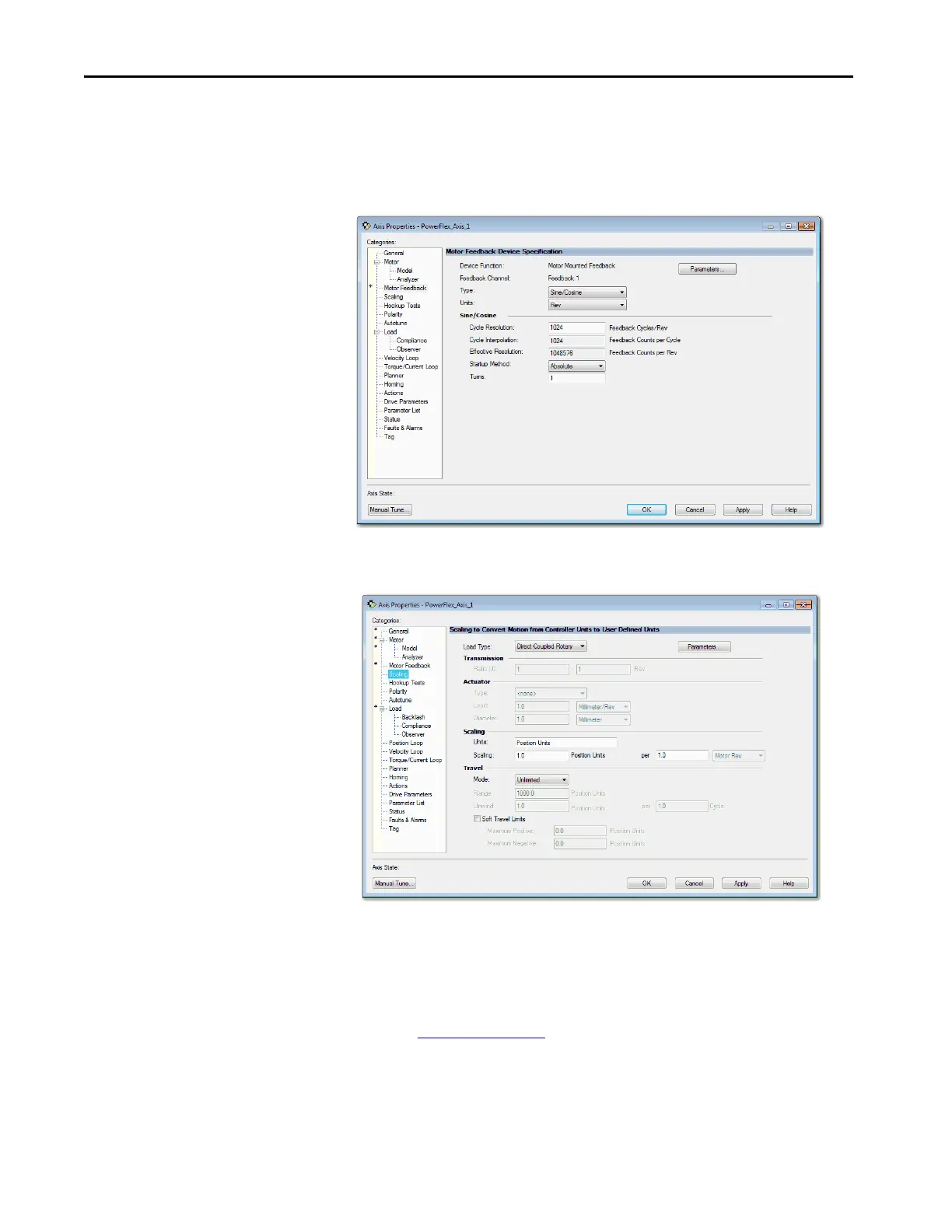

Figure 69 - Example 3: Velocity Loop with Motor Feedback, Motor Feedback Dialog Box
10. Click Scaling.
Figure 70 - Example 3: Velocity Loop with Motor Feedback, Scaling Dialog Box
11. From the Load Type pull-down menu, choose the appropriate load type.
12. Enter the Scaling Units.
13. From the Travel Mode pull-down menu, choose the appropriate Travel
Mode.
See Scaling on page 222
for more information.
14. Click Apply and OK to exit Axis Properties.
You are now finished configuring the axis as Velocity Loop with Motor
Feedback.
