Appendix B Out of Box Configuration for PowerFlex Drives
In Figure 112, we are programming rate. The controller calculates the time of
the move: Speed and Accel/Decel as units = units (seconds).

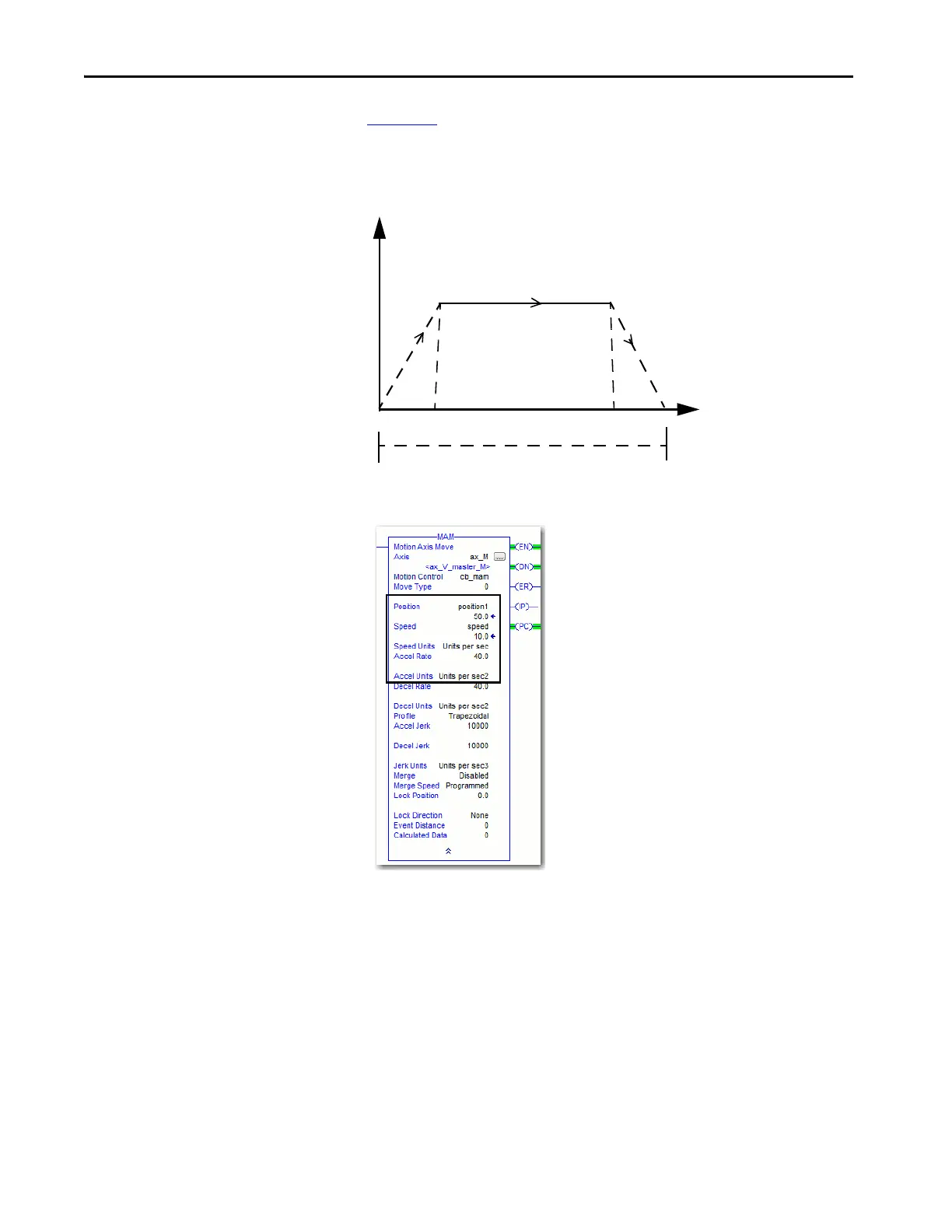

Figure 112 - Programming Rate in RSLogix 5000® Software Version 19 and Earlier
Speed
Time
Programmed Speed
Decel
Accel
1.25 mm
1.25 mm
47.5 mm
Programmed Distance per Rate
Travel Distance @ speed = Rate
RSLogix 5000 software version 19 and earlier
MAM instruction programmed as rate.
Position 50.0 mm (start 0.0)
Speed 10.0 mm/sec
Accel 40.0 mm/sec
2
Decel 40.0 mm/sec
2
Start 0.0 End = 50.0 mm Speed = 10 mm/sec Accel/Decel = 40.0 mm/sec
2
Equivalent to: Distance Rate
So Travel_Distance = area under the
curve [accel + at_speed + decel]
Travel_Distance = 50 mm
Travel_Distance = 50 mm [1.25 mm + 47.5 mm + 1.25 mm

Allen-Bradley PowerFlex 755 Specifications

General

Category	AC Drive
Amperage	2.2…1470 A
Output Voltage	0 to Input Voltage
Output Current	2.2…1470 A
Enclosure	IP20, IP30, IP54
Communications	EtherNet/IP, ControlNet, DeviceNet
I/O	Digital, Analog, Encoder, Relay
Safety	Safe Speed Monitor
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overload, Short Circuit, Ground Fault, Overtemperature
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Humidity	5…95% noncondensing
Altitude	Up to 1000m (3300ft) without derating
Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Input Voltage	200-240V AC, 380-480V AC, 500-600V AC, 690V AC
Control Method	Sensorless Vector
