Dumping Bucket
DO NOT DUMP BUCKET WHILE BUGGY IS MOVING
ØStop vehicle.
ØPush the Dump Control Lever (mounted on either the left side of the console or the left side
of the steering handle) forward toward the front of the buggy to dump bucket. Console Mounted
Dump Controls have a foot pedal on the left of the operator’s platform that can be pushed down
to dump the bucket. See MACHINE OPERATION for identification of controls.
ØPull the Dump Control Lever (either Console Mounted or Handle Mounted) backward towards
the operator to retract the bucket. Console Mounted Dump Controls have a foot pedal on the left
of the operator’s platform that can be pulled backward to return the bucket.
Stopping Engine
ØTurn ignition switch to the OFF position or push or activate Engine Stop Switch on dash.
ØTurn fuel valve on engine to the OFF position. Failure to do so will ultimately result in gas enter-
ing the crankcase.
Steering the Buggy

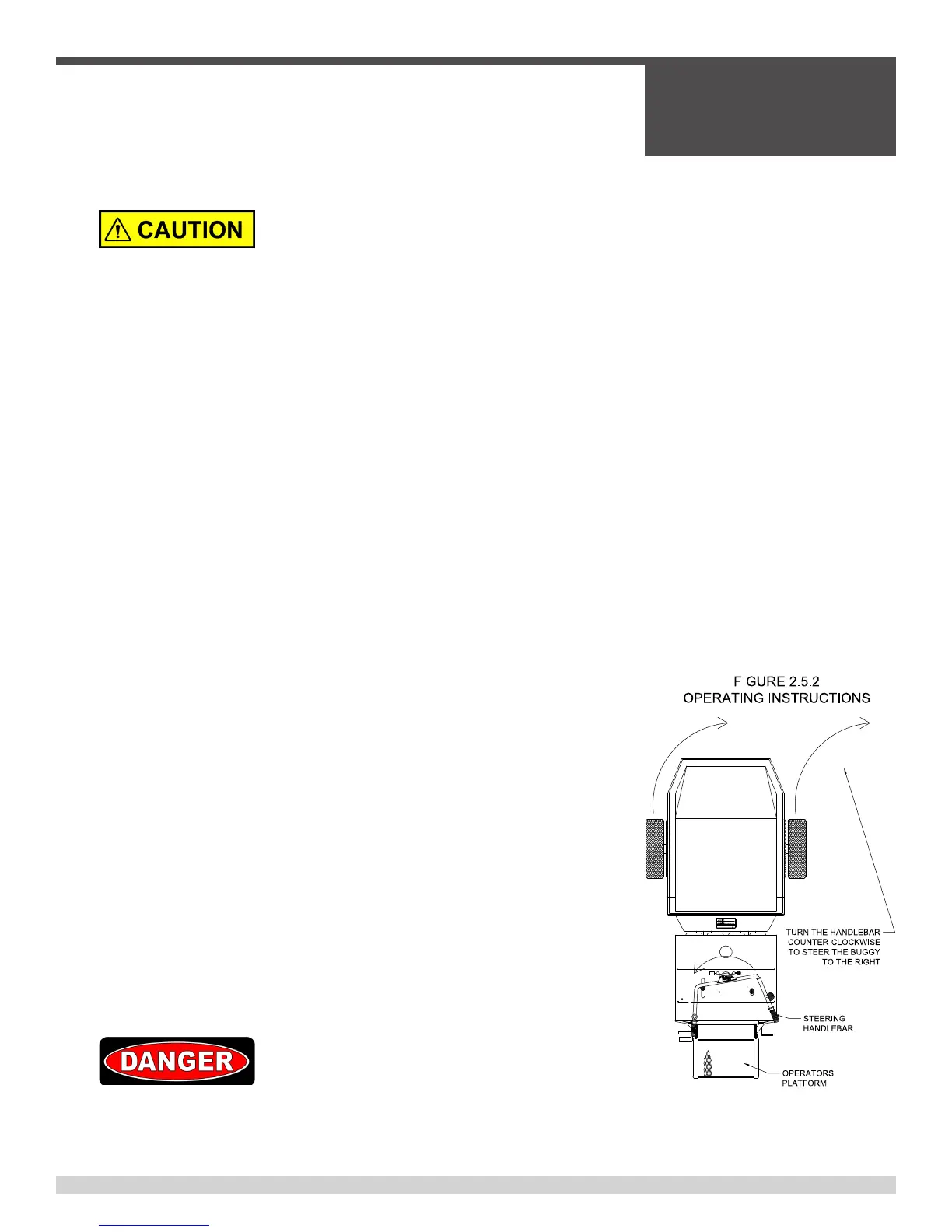

ØAllen Buggies, models AR16 and AR21 are steered using the
Handlebars in front of the operator’s platform.
Turning the Handlebars Clockwise will cause the Buggy to turn to
the Left when traveling in the Forward Direction.
Turning the Handlebars Counter-Clockwise will cause the Buggy
to turn to the Right when traveling in the Forward Direction.
ØWhen steering the Buggy turn the handlebar slowly. Avoid sud-
den, quick steering. of the buggy. When traveling on a grade
always travel facing the controls and travel in a straight line either
up or down the grade.
DO NOT TURN THE BUGGY WHEN
TRAVELING ON A GRADE. TRAVEL IN A
STRAIGHT LINE EITHER UP OR DOWN THE GRADE
2.5 - Operating Instructions, continued
SECTION 2
OPERATIONS
055838 Page 43
