Lifting a Buggy with a Crane
1. Make sure the bucket is completely empty.
2. Raise the bucket to a 55 degree angle with the frame as show below.
3. Attach three (3) chains or straps to the lifting cutouts in the frame as shown below.
4. Attach all three (3) chains or straps to the crane hook. Note: the crane hook must be
equipped with a spring loaded safety catch. The crane must be designed to lift at least
2000 LB.
5. Take the slack out of the chains or straps and adjust them so the buggy is level when
lifted.

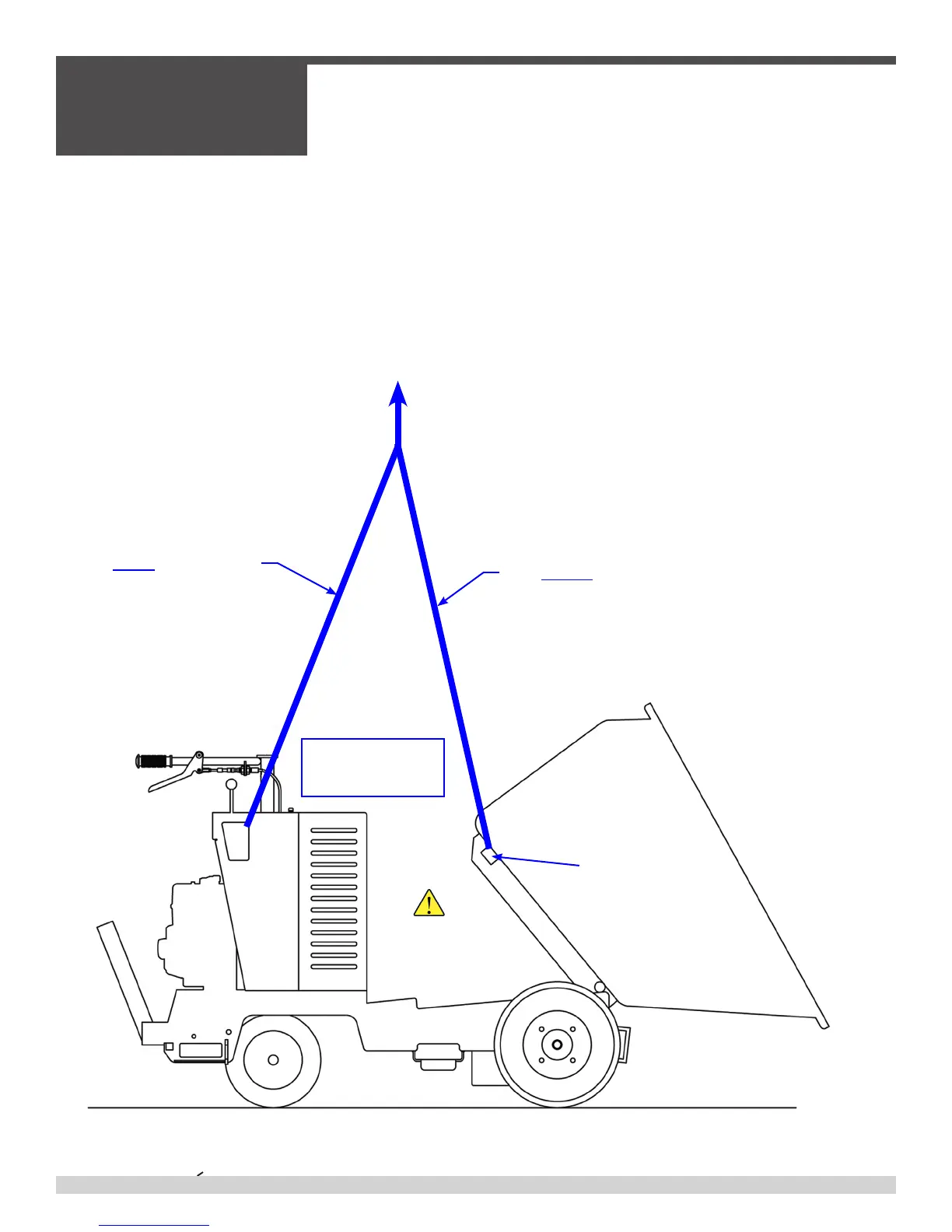

CRANE HAVING MAXIMUM
LIFT CAPACITY OF 2,000#
LIFT REAR OF
BUGGY USING 2
CUTOUTS AT
REAR CORNER OF
ENGINE COVER.
LIFT FRONT OF BUGGY BY R
AISING BED TO 55 DEGREE
ANGLE AND ATTACHING CH
AIN OR STRAP TO LUG IN ST
EEL BASE SUPPORTING BU
CKET.
EMPTY BUCKET AND RAISE
TO THE FULL UP POSITION (
55° ANGLE) AND ATTACHIN
G CHAIN OR STRAP THROU
GH CUTOUT IN STEEL BASE
SUPPORTING BUCKET.
BUGGY MUST BE LEVEL A
ND SUPPORTED BY ALL T
HREE (3) POINTS WHEN LI
FTING WITH CRANE
CAUTION!
PINCH POINT
3.9 - Lifting Procedures
SECTION 3
SERVICE
055838 Page 66
