Hydraulic Drive/Bucket Dump:
ØCheck hydraulic oil level daily. Check oil level with bucket in the “down” position, and
with oil temperature cold. Fill reservoir to bottom of bolt head on filler cap or “F” mark on
dip stick with SAE 10W-40 weight SE motor oil. Reservoir capacity is 18.7 quarts.
ØReplace hydraulic oil and hydraulic oil filter every 200 hours or 6 months, whichever
occurs first. Drain oil from hydraulic reservoir by disconnecting hose item 28, from elbow
fitting item 45.
ØInspect all hydraulic hoses & fittings daily. Repair or replace as required.
Chassis Lubrication

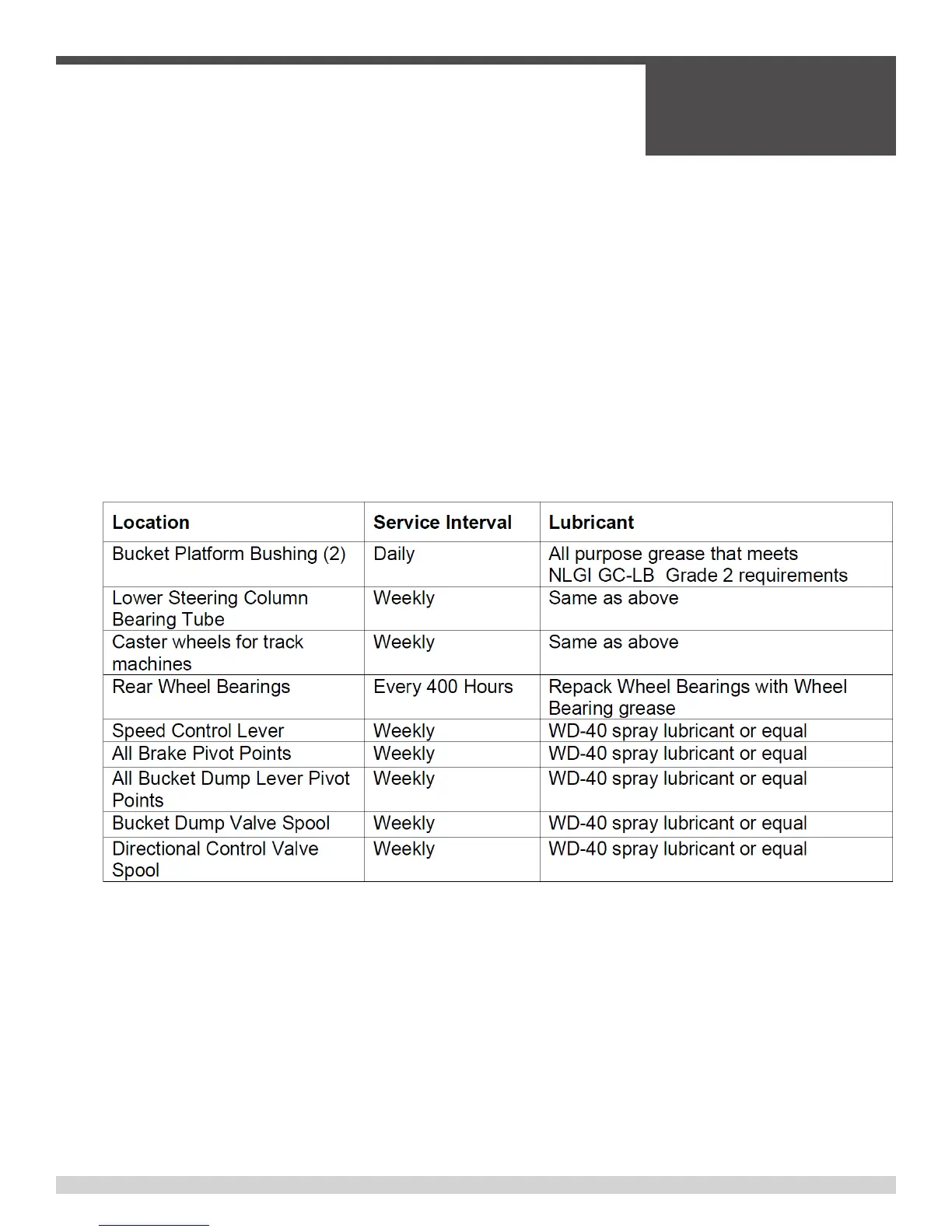

Lubricate all machine points per the following schedule:
Brake
Inspect both service brake and parking brake lock DAILY. Parking brake must hold a loaded
buggy on 15% grade (8.5 degrees). Service brake must lock both drive wheels of a loaded buggy
when brake pedal is applied while buggy is in motion. If adjustment is required to bring brake
operation up to these specs, refer to pages ??? for adjustment procedures.
3.8 - Maintenance, continued
SECTION 3
SERVICE
055838 Page 63
