allen AR21 - Dump Lever Adjustment

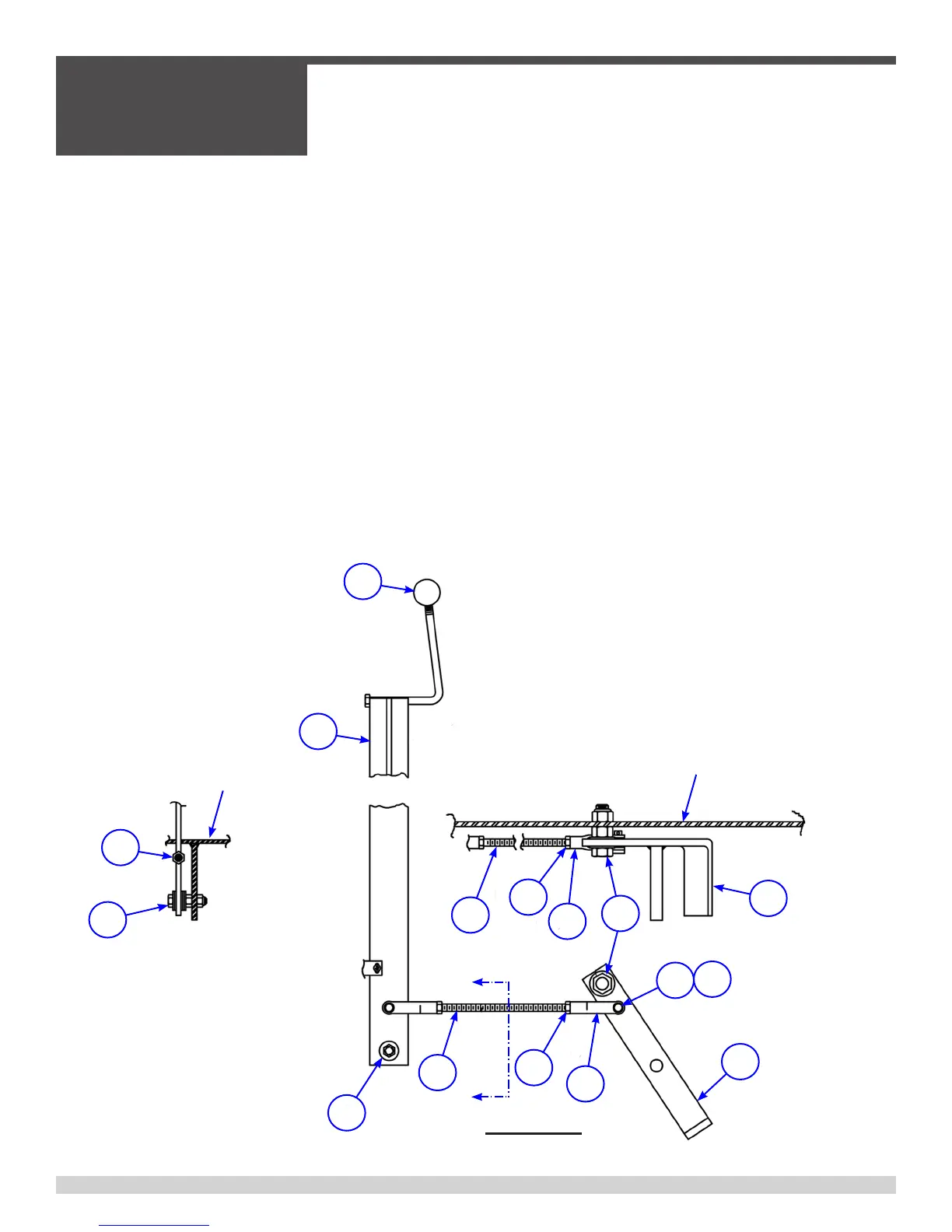

Dump Control Lever
A
A
SECTION A-A
REF. FRAME
7
3
2
1
8
7
4
10
9
9
5
6
4
7
8
3
REF. FRAME
SIDE VIEW
1) Console mounted dump control lever
Three (3) adjustments are possible: Position of foot pedal, drag on valve lever pivot, and
drag on dump pedal pivot.
1. Position of foot pedal: To readjust foot pedal position remove cotter pin (6) and clevis
pin (5) at pedal. Loosen hex jam nut (7) and turn clevis (4) clockwise to lower pedal,
counterclockwise to raise pedal. Replace clevis pin (5) and cotter pin (6). Tighten hex
jam nut (7).
2. Drag on valve lever (1) Pivot: This lever should return easily to neutral position. To
change drag, loosen hex locknut on bolt assembly (3). Tighten hex nut to increase drag.
Loosen hex nut to decrease drag. Tighten locknut to 25-ft. lbs. Spray with lube after
adjustment.
3. Drag on dump pedal pivot (9)t: same as adjustment 2 above except adjustment is
made on bolt assembly (10) and locknut is torqued to 120-ft. lbs. Spray with lube after
adjustment.
4. Apply approved lubrication to all bucket dump lever points.
3.6 - Dump Lever Adjustment
SECTION 3
SERVICE
055838 Page 58
