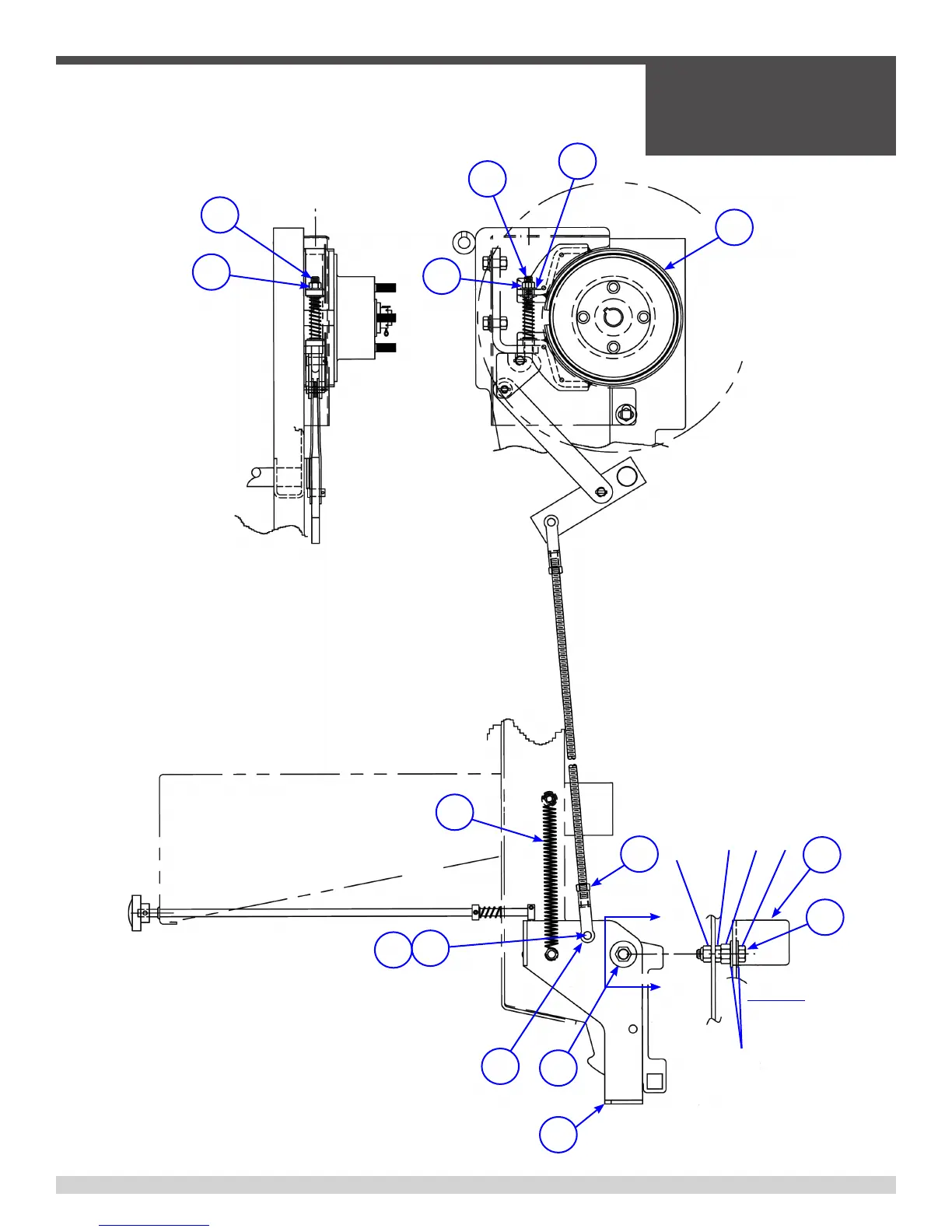

allen AR21 - Parking Brake Schematic

16
15
16
15
17
2
48
34
31
35
STEEL LOCKNUT TORQUE TO 120 FT/LBS
5/8 JAM NUT
3/4 HEX NUT
5/8NC X 2-3/4” HHCS
FLAT WASHERS
B
B
DETAIL B-B
37
47
44
47
44
ADJUST CLEARANCE OF BRAKE PEDAL
44 WITH PIVOT BOLT ASSEMBLY 47 BY
TIGHTENING 5/8”NC -10 JAM NUT AGAINST
FLAT WASHERS AND 3/4” HEX NUT.
THEN BACK OFF JAM NUT 1/4 TURN WHILE
HOLDING PIVOT BOLT, TIGHTEN 5/8” NC
STEEL LOCKNUT TO 120 FT/LBS.
3.2 - Parking Brake Schematic
SECTION 3
SERVICE
055838 Page 49
