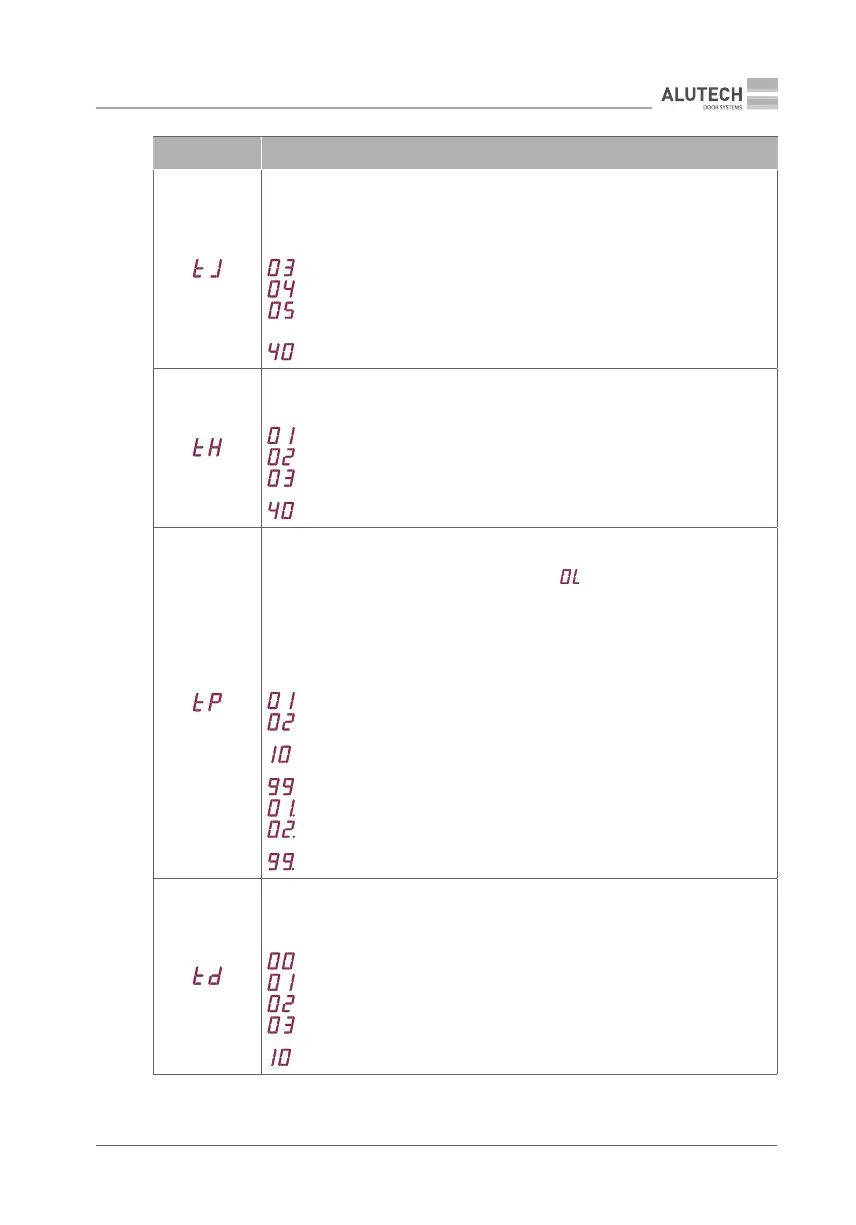

SETTING UP OPERATING PARAMETERS
SETTING
INDICATION
SETTING DETAILS
Operation time
This setting is to set up the time of continuous leaf motion between the nal positions.
The operation time should be sucient for full opening / closing (when setting up, it is
recommended to set the time to a value that is ~ 3 seconds more than the required leaf
opening or closing time):
— 3 seconds.
— 4 seconds.
— 5 seconds.
… — …
— 40 seconds. Default setting.
Partial opening time
This setting is to set up the partial opening time for the rst leaf (the leaf with the drive
connected to the X2 connector on the control unit module):
— 1 second.
— 2 seconds.
— 3 seconds. Default setting.
… — …
— 40 seconds.
Delay time
This setting is to set up the delay before automatic closing of the gate. The countdown of the
delay is activated, when the automatic mode setting (‘ ’ setting) is enabled.
Value with no point after the digits—activation of the device (e.g., beam breaking) connected
to the ‘PH1’ input will cause the countdown of the automatic closing delay to reset, and the
countdown of the delay will start anew after the recovery (beam recovery).
Value with a point after the digits- activation of the device (e.g., beam breaking) connected
to the ‘PH1’ input will cause the delay countdown to reset and the gate to close automatically
5 seconds after the recovery (beam recovery):
— 1 second.
— 2 seconds.
… — …
— 10 seconds. Default setting.
… — …
— 99 seconds.
— 1 second.
— 2 seconds.
… — …
— 99 seconds.
Delay time for the rst leaf
This setting is to set up the time of delay before the closing of the rst leaf (the leaf with the
drive connected to the X2 connector on the control unit module) after the second leaf starts
to close:
— Disabled (no delay).
— 1 second.
— 2 seconds.
— 3 seconds. Default setting.
… — …
— 10 seconds.
