Chapter 5, WEB CONTROL PANEL OPERATION
5-5

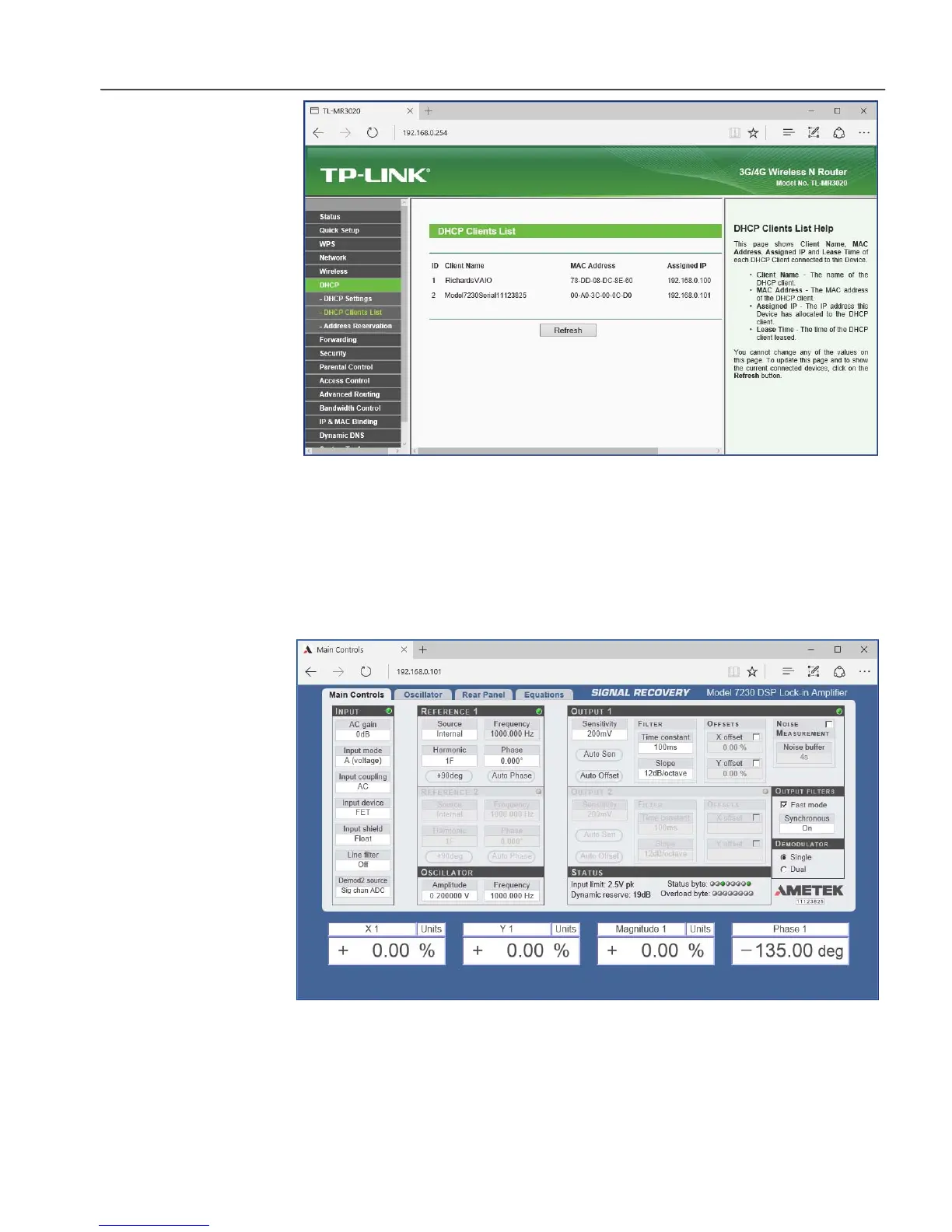

Figure 5-5, Router DHCP Status Page with Model 7230 Active
In the above example the controlling computer’s IP address is 192.168.0.100 and
the model 7230 has been allocated an IP address of 192.168.0.101
15) Open a new browser session and type the IP address for the model 7230
determined in section 14, which in this example is 192.168.0.101, into the
address bar and press <return>. The 7230's Main Controls panel should be
displayed, as shown below in figure 5-6.
Figure 5-6, Model 7230 Main Controls Panel
17) Save the address as a favorite, bookmark, or shortcut so that you can quickly
reach the model 7230 again.
With this configuration you should always be able to access the 7230 again in future
