Chapter 5, WEB CONTROL PANEL OPERATION
5-12
5.3 Web Control Panels
5.3.01 Main Controls: Overview

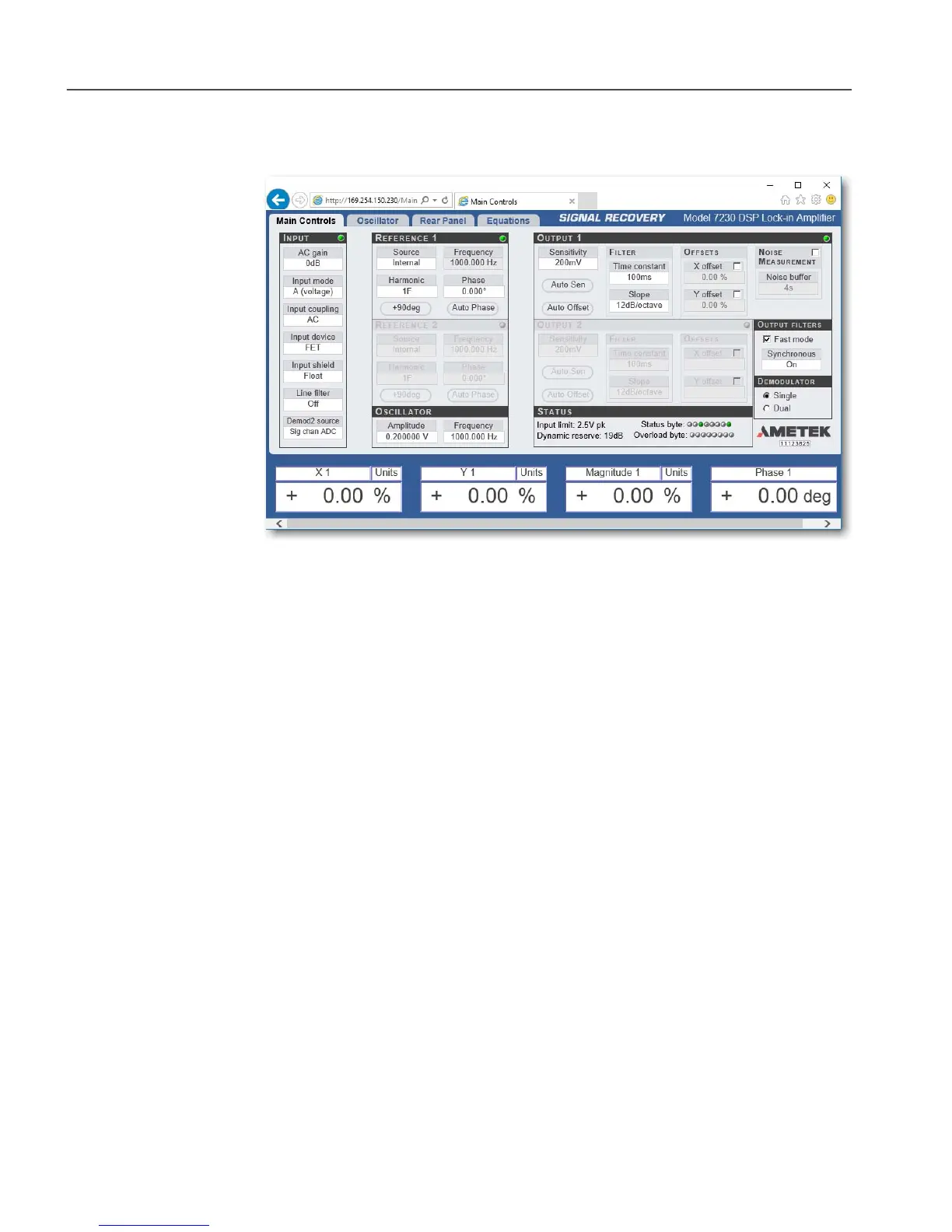

Figure 5-14, Main Controls Panel
The Main Controls panel, shown above in Figure 5-14, is displayed when a browser
session is opened on the instrument’s IP address. There are four digital indicators
along the bottom of the screen, and controls for all the most common functions in the
upper section.
There are several ways of operating the controls. Some, such as the Sensitivity
control, have a range of fixed settings. To adjust these, simply click on the control
and then click the required setting (see figure 5-15).
