Chapter 5, WEB CONTROL PANEL OPERATION
5-32
Frequency
The frequency of the instrument's internal oscillator may be set, using this control, to
any value between 0.001 Hz and 120.000 kHz (or 250.000 kHz if the instrument is
fitted with the 7230/99 option) with a 1 mHz resolution.
This completes the description of the Oscillator panel.
5.3.16 Rear Panel: Overview

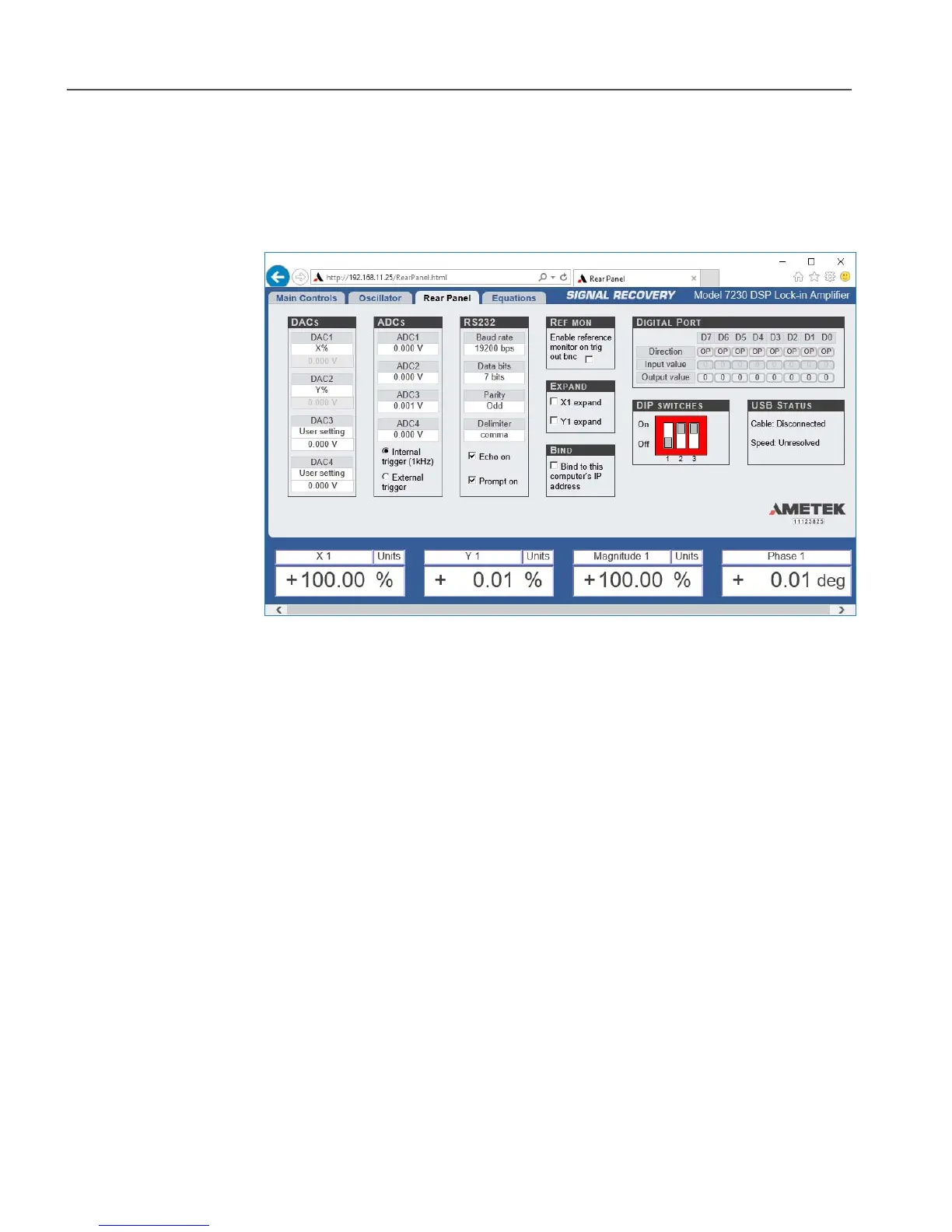

Figure 5-33, Rear Panel Controls
The Rear Panel, shown above in Figure 5-33, is used to configure the instrument’s
analog outputs, to read the auxiliary ADC input voltages, to set the communications
parameters used for the RS232 interface, to set and read the digital IO port, and for
other peripheral controls.
