Chapter 5, WEB CONTROL PANEL OPERATION
5-7

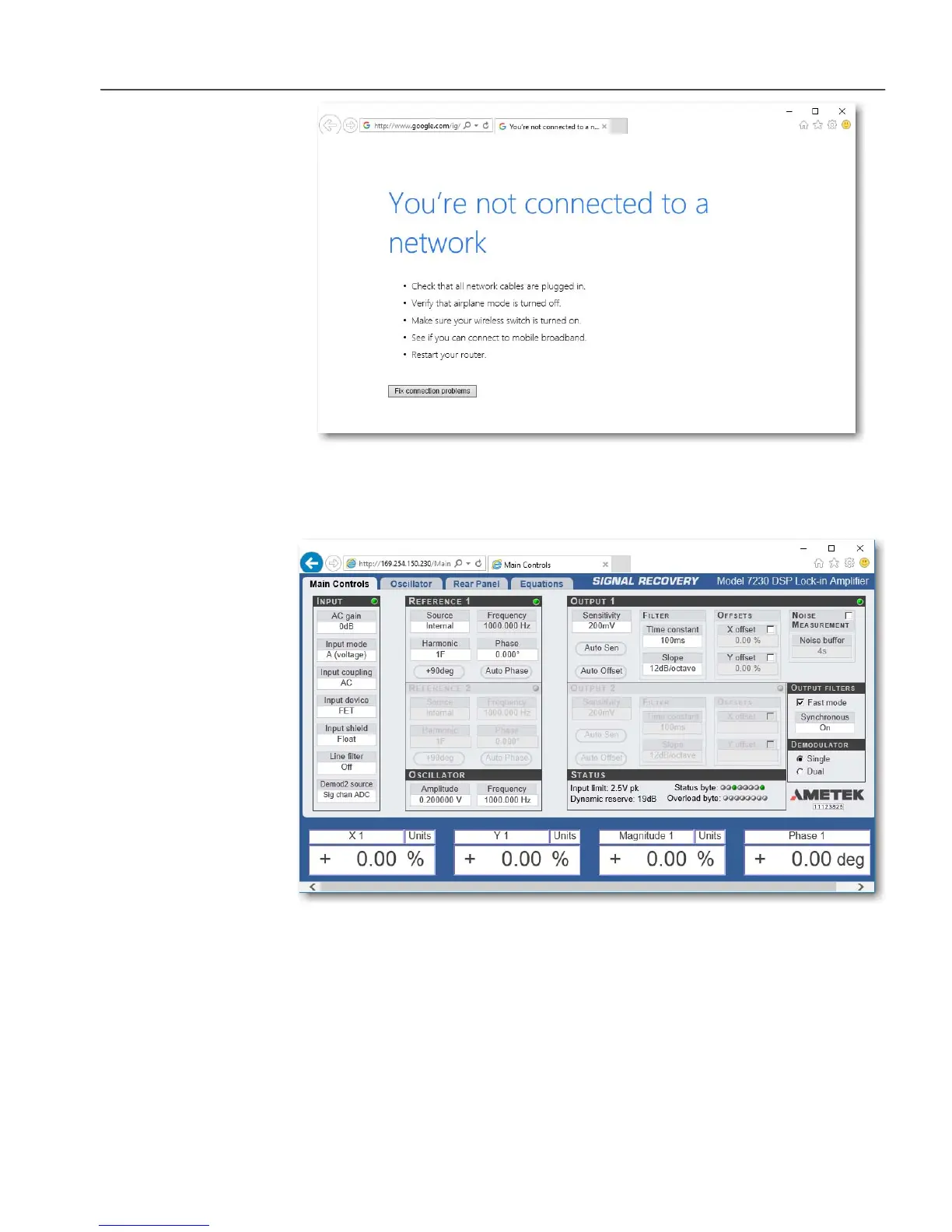

Figure 5-7, Initial Browser Window
8) Type 169.254.150.230 into the address bar and press <return>. The 7230's Main
Controls panel should be displayed, as shown below in figure 5-8.
Figure 5-8, Model 7230 Main Controls Panel
9) Click the Equations tab, to show the Equations panel, as shown below in
figure 5-9
