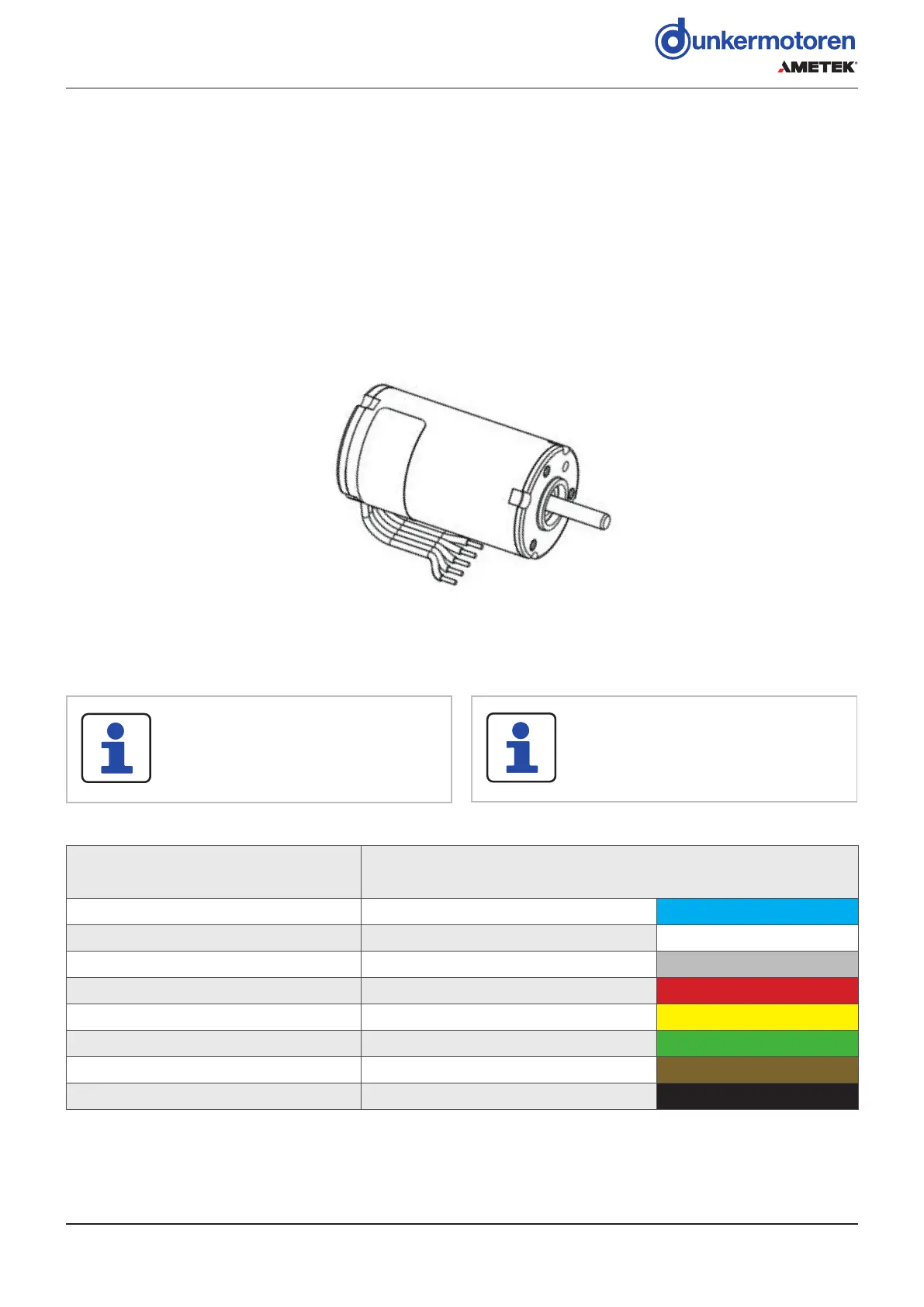

Version 18-04-2023 BG XX dCore Page/Seite 49 / 102
7. Anschlüsse BG dCore
7.1 BGA 22 dCore − Litzenausführung
7.1.1 Leistungs- und Logikversorgung
Das 8-adrige Litzenbündel dient zur Leistungs- und
Logikversorgung des Motors.
Empfohlene Mindest PWM-Frequenz: 100 kHz
Anschluss über Litzen
Bei dieser Pin- bzw. Litzenbelegung
handelt es sich um die Standard-Be-
legung. Führend ist die auf der Motor-
zeichnung angegebene Pinbelegung.
7. Anschlüsse BG dCore
7.1 BGA 22 dCore − Wire version
7.1.1 Power and Logic Supply
The 8-core stranded wire bundle is used for power and
logic supply of the motor.
Recommended minimum PWM frequency: 100 kHz
Connection via stranded wires
This pin or lead assignment is the
standard pin assignment. Leading is
the pin assignment shown in the motor
drawing.
Connection/
Anschluss
Lead colour
(1)
/
Litzenfarbe
(1)
Phase A
blue/ blau
Phase B
white/ weiß
Phase C
grey/ grau
U+ Hall
red/ rot
H1
yellow/ gelb
H2
green/ grün
H3
brown/ braun
GND Hall
black/ schwarz
(1)
With standard connector./
Mit Standard-Stecker.
