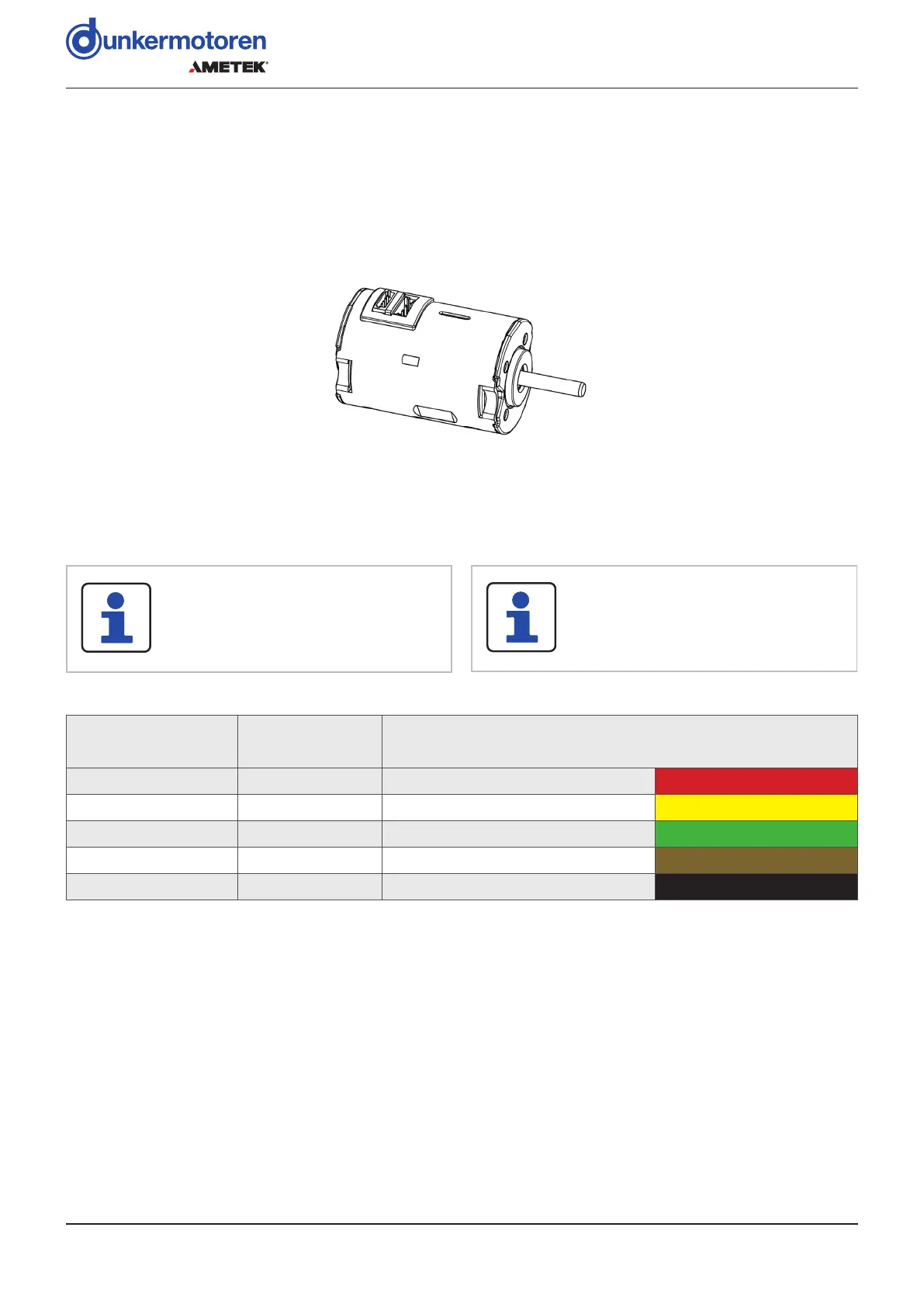

Page/Seite 52 / 102 BG XX dCore Version 18-04-2023
7.2.2 Logikversorgung
Der 5-polige Stecker dient zur Spannungsversorgung und
Signalübertragung der Hall-Sensoren.
Stecker, Fa. JST, S5B-ZR-SM4A-TF
Anschluss über 5-poligen Stecker für Motor
Bei dieser Pin- bzw. Litzenbelegung
handelt es sich um die Standard-Be-
legung. Führend ist die auf der Motor-
zeichnung angegebene Pinbelegung.
7.2.2 Logic Supply
The 5-pin plug is for the voltage supply and signal transfer
of the hall-sensors.
Connector, Fa. JST, S5B-ZR-SM4A-TF
Connection via 5-pin connector for motor
This pin or lead assignment is the
standard pin assignment. Leading is
the pin assignment shown in the motor
drawing.
Plug pin/
Stecker Pin
Connection/
Anschluss
Lead colour
(1)
/
Litzenfarbe
(1)
Hall, Pin 1 U+ Hall
red/ rot
Hall, Pin 2 HS1
yellow/ gelb
Hall, Pin 3 HS2
green/ grün
Hall, Pin 4 HS3
brown/ braun
Hall, Pin 5 GND Hall
black/ schwarz
(1)
With standard connector./
Mit Standard-Stecker.
