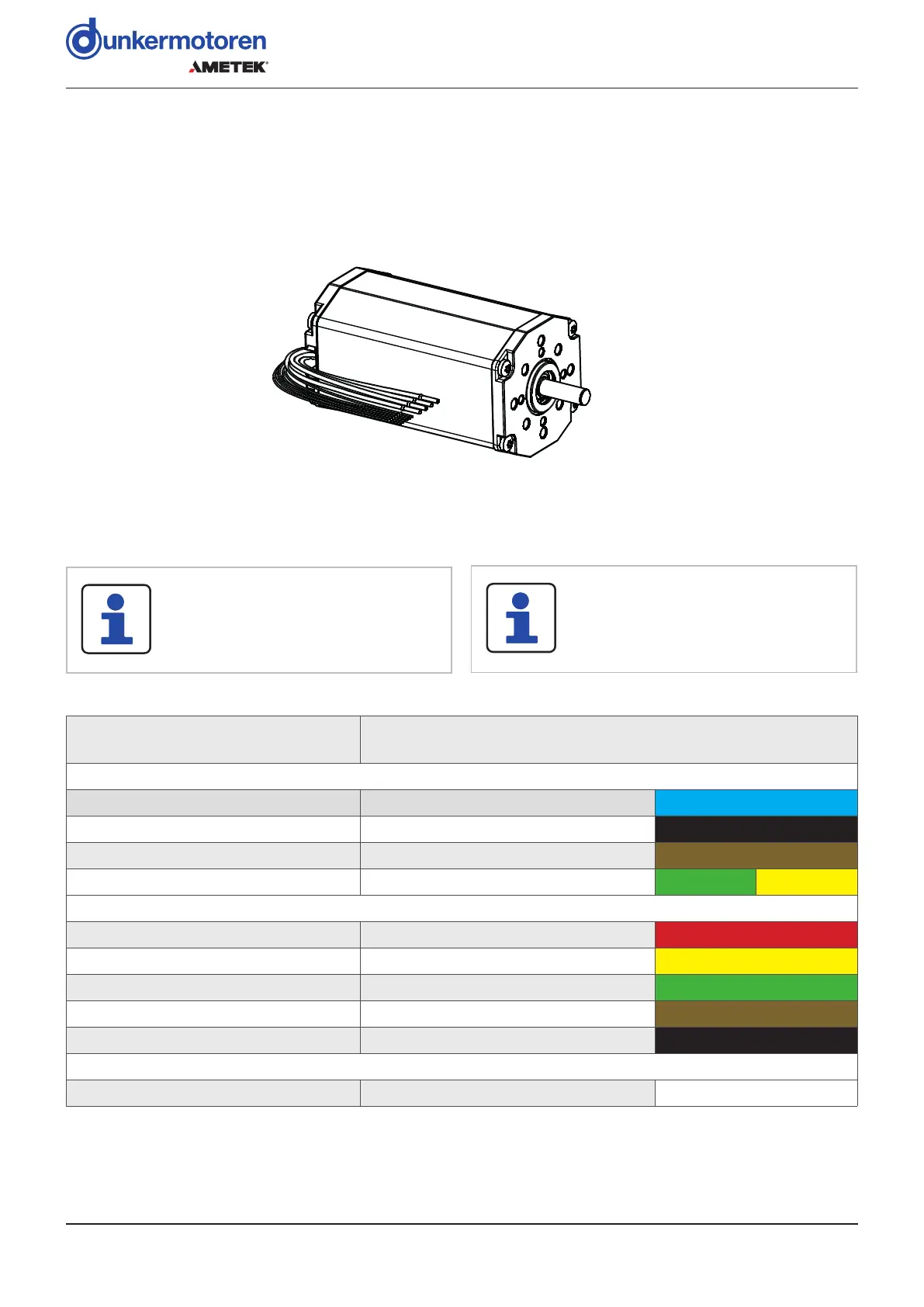

Page/Seite 66 / 102 BG XX dCore Version 18-04-2023
7.8 BG 65 dCore − Litzenausführung
7.8.1 Leistungs- und Logikversorgung
Das 10-adrige Litzenbündel dient zur Leistungs- und
Logikversorgung des Motors.
Anschluss über Litzen
Bei dieser Pin- bzw. Litzenbelegung
handelt es sich um die Standard-Be-
legung. Führend ist die auf der Motor-
zeichnung angegebene Pinbelegung.
7.8 BG 65 dCore − Wire version
7.8.1 Power and Logic Supply
The 10-core stranded wire bundle is used for power and
logic supply of the motor.
Connection via stranded wiresr
This pin or lead assignment is the
standard pin assignment. Leading is
the pin assignment shown in the motor
drawing.
Connection/
Anschluss
Lead colour
(1)
/
Litzenfarbe
(1)
Motorwinding/Motorwicklung AWG16
A
blue/ blau
B
black/ schwarz
C
brown/ braun
PE
green-yellow/ grün-gelb
Hallsignal AWG28
+5V
red/ rot
HS1
yellow/ gelb
HS2
green/ grün
HS3
brown/ braun
GND Hall
black/ schwarz
NTC
white/ weiß
(1)
With standard connector./
Mit Standard-Stecker.
Info Technik: Spannungs-
bereich fehtl
